2-5 SWITCH SETTING FOR CPU RATIO AND CLOCK
2-5.1 CPU BUS RATIO SELECT
• Normally, the Bus Ratio (Frequency Multiplier) of your processor is locked
by processor’s Vendor and setting of the CPU Bus Ratio will have no
effect.
• The Bus Ratio Setting is available on unlocked processors only.

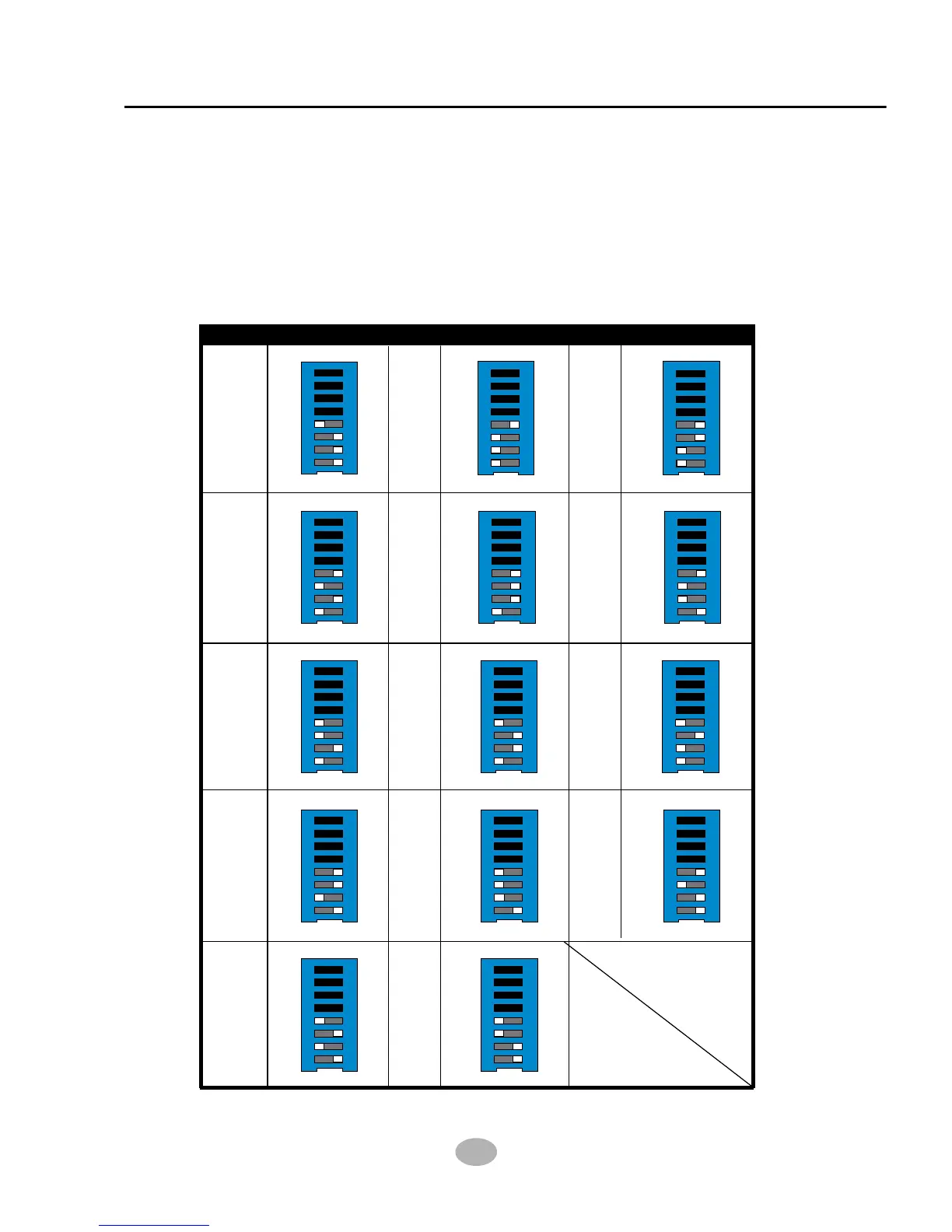

SW1 DIP1 ~ DIP4 SETTING
5.5x 6.0x 6.5x
7.0x 7.5x
8.5x 9.5x
11.0x10.5x
8.0x
9.0x
10.0x
11.5x 12.0x
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
(default)
