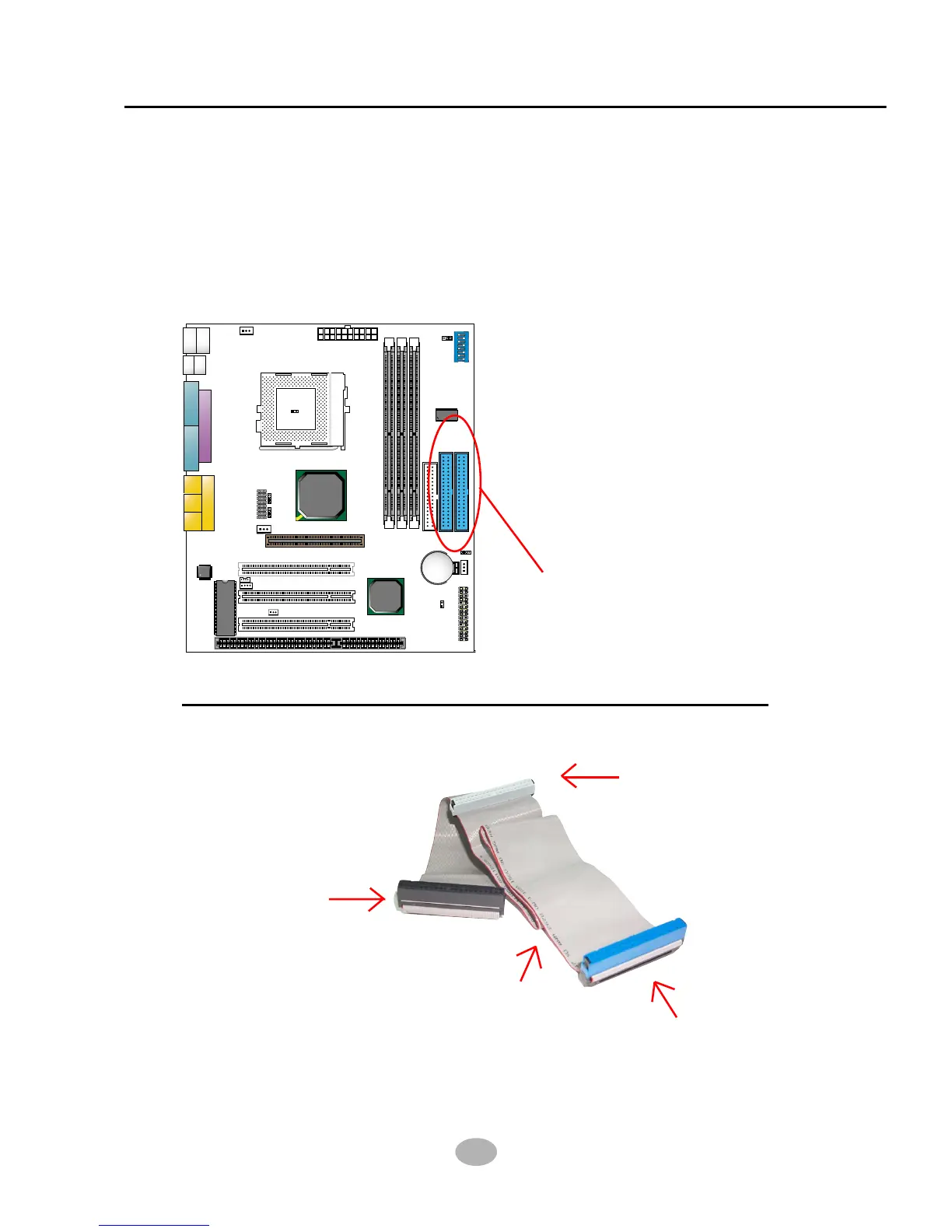

To install HDD (Hard Disk Drive), you may connect the cable’s blue connector to
the mainboard’s primary (IDE1) or secondary (IDE2) connector, and then
connect the gray connector to your slave device and the black connector
to your master device. If you install two hard disks, you must configure the
second drive to Slave mode by setting its jumper accordingly. Please
refer to your hard disk documentation for the jumper settings.
Hard Disk Drive Connector:
Orient the red line on the
IDE ribbon cable to Pin1.
2-4 HDD/FDD INSTALLATION
Gray connector
Blue connector
IDE Cable
red line
Black connector
