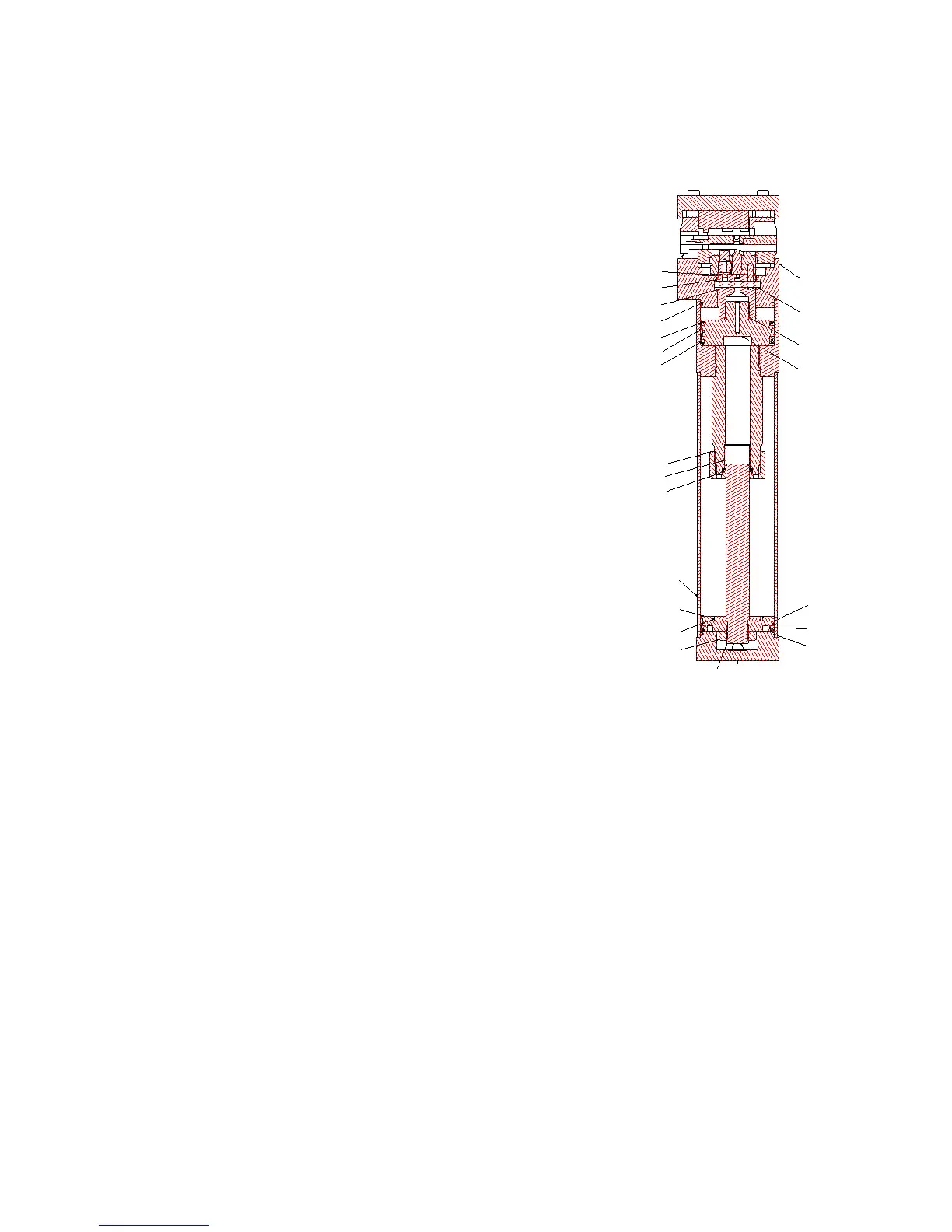

Spare part list pressure amplifier
Attention:
When replacing the seals, it is recommended that in the case of the older cropping cylinders, the
complete set should be replaced, since, during reassembly, it may happen that the older seals lose
their sealing effect.
Moreover, repairs should be carried out only by authorized persons having the necessary technical
competence.
In case of doubt, you should send the cropping cylinder to the nearest service center for getting the
seals replaced!
OBJECT
QTY.
PART NUMBER
1
1
05 05 00 1000 Pressure amplifier
1.1
1
05 05 00 0001 Cylinder head – Fitting cropper
1.2
1
O - Ring 40 x 2,5
1.3
1
DIN 3760 A (right) A-40x52x7 – NBR
1.4 1 DU-Jack BK-I 4020
1.5
2
O-Ring 74x3
1.6
1
05 05 00 0002 Piston rod D40
1.7
1
05 05 00 003 Transmitting piston
1.8
2
Z8A8070N3580 80x70x4,25
1.9 2 F3-5,6x2,5 Piston guide belt D80
1.10
1
B7 8010 P5008 80x70x6,7
1.11
1
O - Ring 24 x 2,5
1.12 1 05 05 00 0012 Transmitting cylinder
1.13
1
05 05 00 0004 Pressure pipe
1.14
1
O - Ring 44,12 x 2,62 N552 - 90 für D45
1.15 1 05 05 00 0005 Pressure pipe nut
1.16
1
DU-Jack 25 x 28 x 25
1.17
1
B3 2532P5008 25 x 33 x 5,7
1.18 1 05 05 00 0008 Piston rod
1.19
1
05 05 00 0006 Piston D79,6 x 16 Piston
1.20
1
05 05 00 0007 Insulation Fibro 80 Shore
1.21
1
Nut DIN 936 17H
1.22
1
05 05 00 0010 Profile pipe 80x2,5 289 long
1.23
1
05 05 00 0009 Cover
1.24
2
DIN 912 M8x50.
1.25
2
DIN 912 M8x60.
1.26
4
05 05 00 0011 Tie rod
1.27
4
Hollow-core screw M8
1.28
1
Nipple M12x1 with disk and locking cap1
1.29
1
Vent valve R1-4
1.30
2
Ball 5,5
1.31
2
DIN 913 M8x8.
