1 Somfy Connect - Connector Description

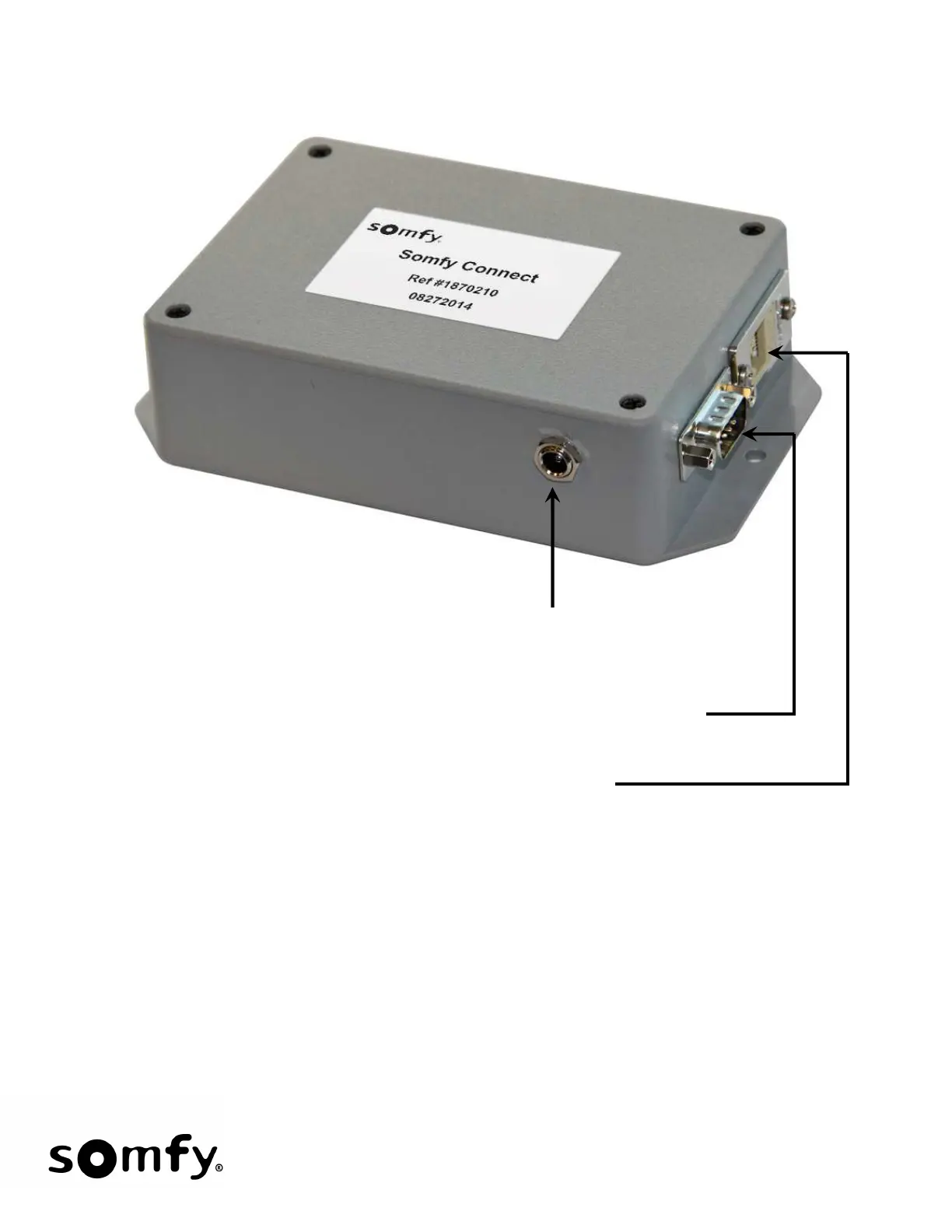

DC Jack: 2.1 X 5.5 mm. DC input 9 – 24 VDC.
o Somfy Connect, 100ma
o Each URTSI attached to 485 network, 25 ma
DB9, Male: RS232 input from Lutron Main Repeater or NWK
integration Device.
RJ45: RS485. Connects to the SDN or URTSI(s)
