SOMFY J4 RTS User Manual

65
© 2011 Somfy SAS. All rights reserved. 06/2011
EN

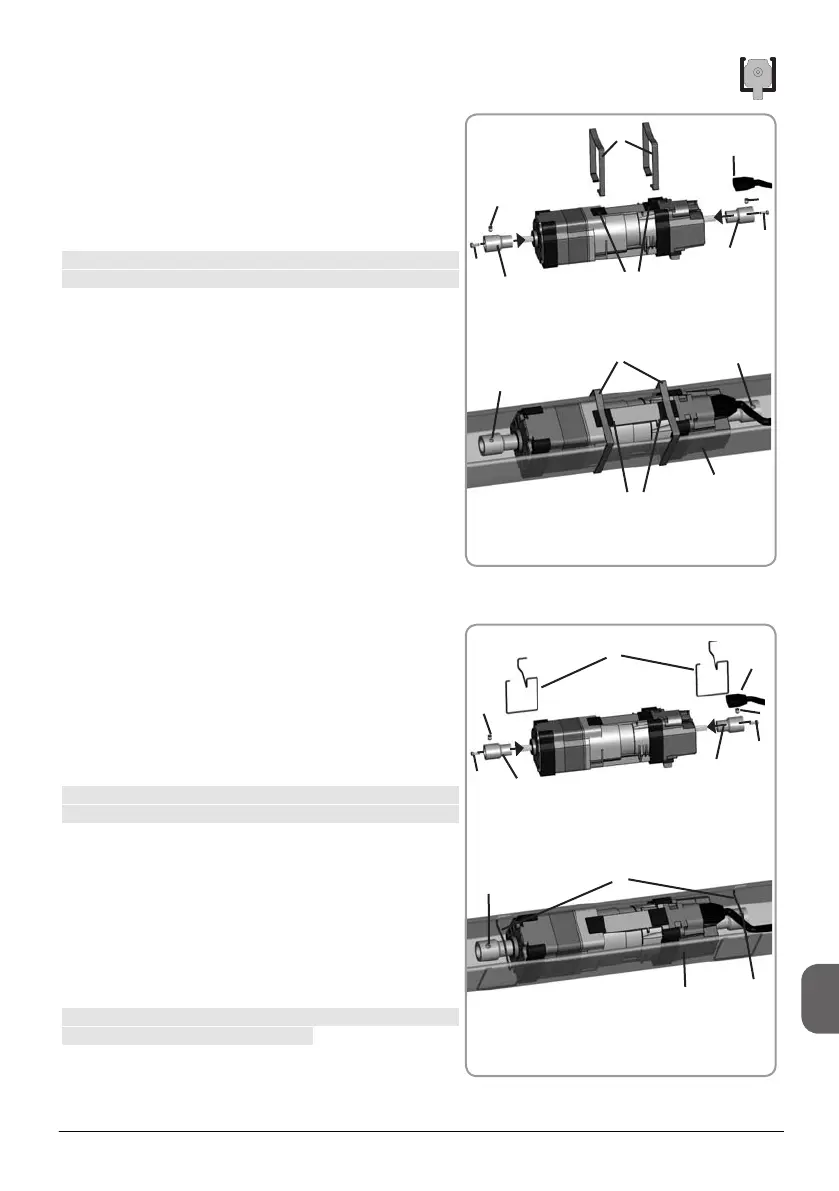

Installation with external clips
• Screw the 2 adaptors (1) using 2 M3x8 bolts (2) on
the motor shaft.
F Tightening torque = 1.1 Nm
• Connect the connection cable (3) to the motor.
Ensure that the cable does not pass over
a rotating part of the motor or mechanism.
• Insert the motor into the head rail (4).
• Using the clips (5), attach the motor in the head rail
(4) above the small acoustic tapes (6a).
• The shaft can be fitted into the adapter using a
headless screw (7)
Installation with internal clips
• Screw the 2 adaptors (1) using 2 M3x8 bolts (2) on
the motor shaft.
F Tightening torque = 1.1 Nm
• Connect the connection cable (3) to the motor.
Ensure that the cable does not pass over
a rotating part of the motor or mechanism.
• Insert the motor into the head rail (4).
• Using the clips (5), attach the motor in the head rail (4).
• The shaft can be fitted into the adapter using a
headless screw (7).
The internal clips cannot be used with J418 motors
(J4 motors with a torque of 18 Nm).
3.3 57 x 51 mm head rail, open above
1
2
1
2
4
5
7
7
7
7
3
5
2
7
1
1
3
7
2
7
5
4
7
6a
5
6a
