SOMFY J4 RTS User Manual

66
© 2011 Somfy SAS. All rights reserved. 06/2011
EN

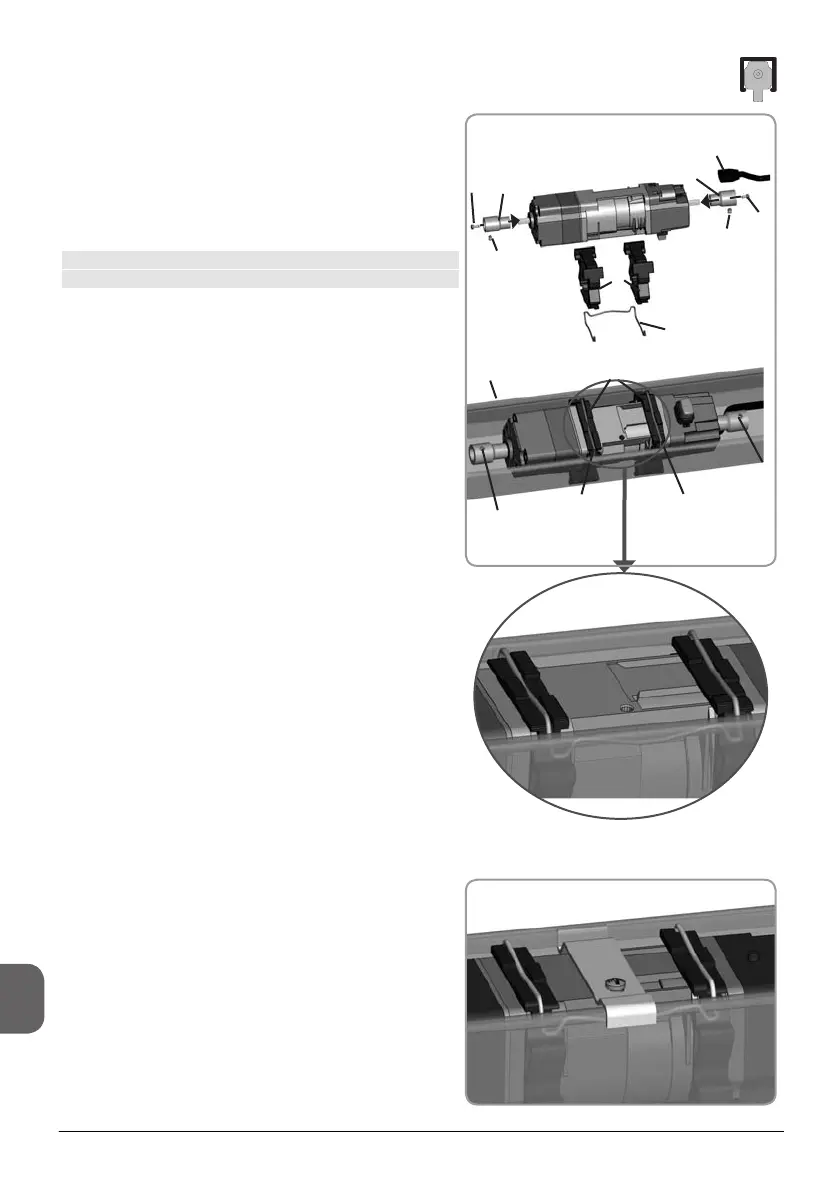

Installation with J406/J410 motors (torque of 6 or
10 Nm)
• Screw the 2 adaptors (1) using 2 M3 x 8 bolts (2) on
the motor shaft.
F Tightening torque = 1.1 Nm
• Connect the connection cable (3) to the motor.
Ensure that the cable does not pass over
a rotating part of the motor or mechanism.
• Fit the two head rail adaptors (8) on the motor.
• Insert the motor into the head rail (4).
• Using the clip (5), attach the motor in the head rail (4).
• The shaft can be fitted into the adapter using a
headless screw (7).
For motors with torque greater than 10 Nm
• The additional clamp must be attached with a new
bolt -> tightening torque ≤ 4 Nm.
3.4 78 x 67 mm head rail, open below
1
2
1
2
8
5
8
5
5
7
7
7
7
3
4
