SOMFY J4 RTS User Manual

67
© 2011 Somfy SAS. All rights reserved. 06/2011
EN

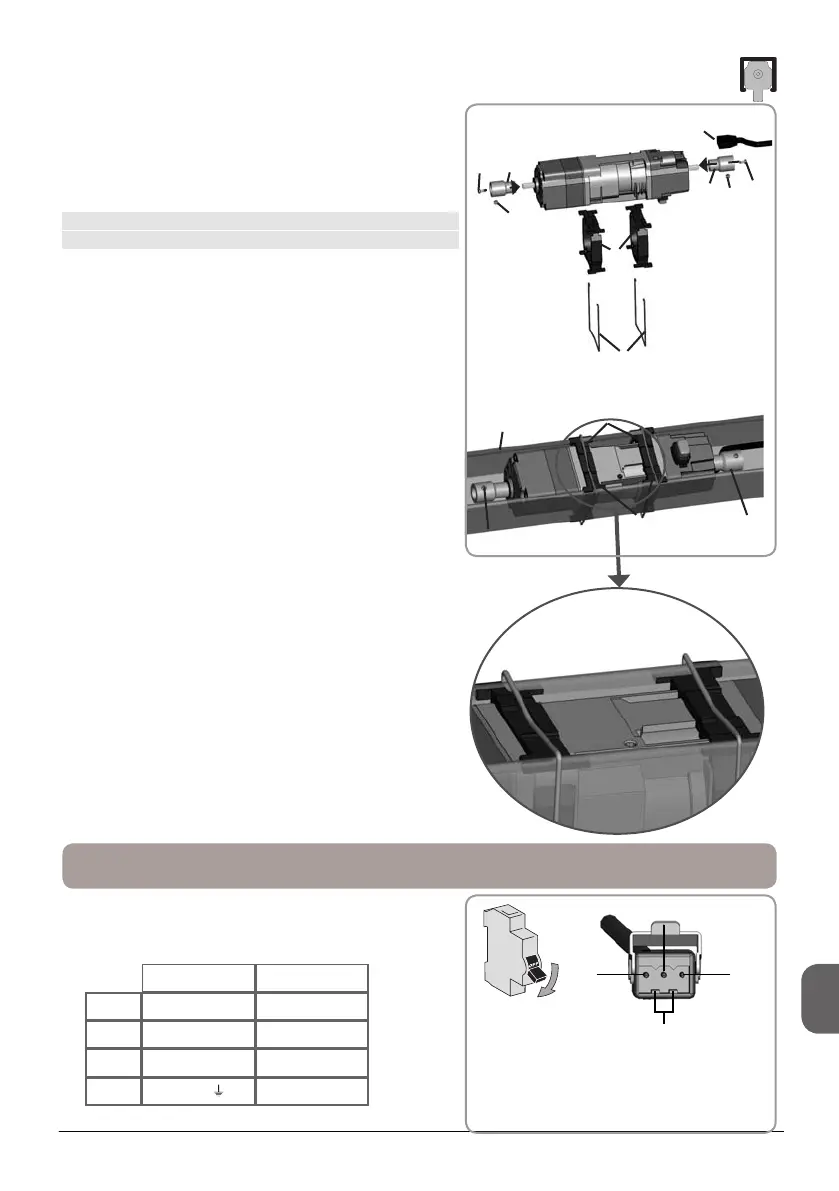

• Screw the 2 adaptors (1) using 2 M3 x 8 bolts (2) on
the motor shaft.
F Tightening torque = 1.1 Nm
• Connect the connection cable (3) to the motor.
Ensure that the cable does not pass over
a rotating part of the motor or mechanism.
• Fit the two head rail adaptors (8) on the motor.
• Insert the motor into the head rail (4).
• Using the clips (5), attach the motor in the head rail (4).
3.5 67 x 66 mm head rail, open below
1
2
1
2
8
5
5
8
7
7
7
7
3
4
4. WIRING
• Cut off the mains power supply.
• Connect the motor according to the information in the
table below:
230 V ~ 50 Hz
Neutral (N)
Live (P)
-
Motor cable
Blue
Brown
-
1
2
3
Earth ( )
Yellow/Green
4
1
2
3
4
