Step 5 / 8

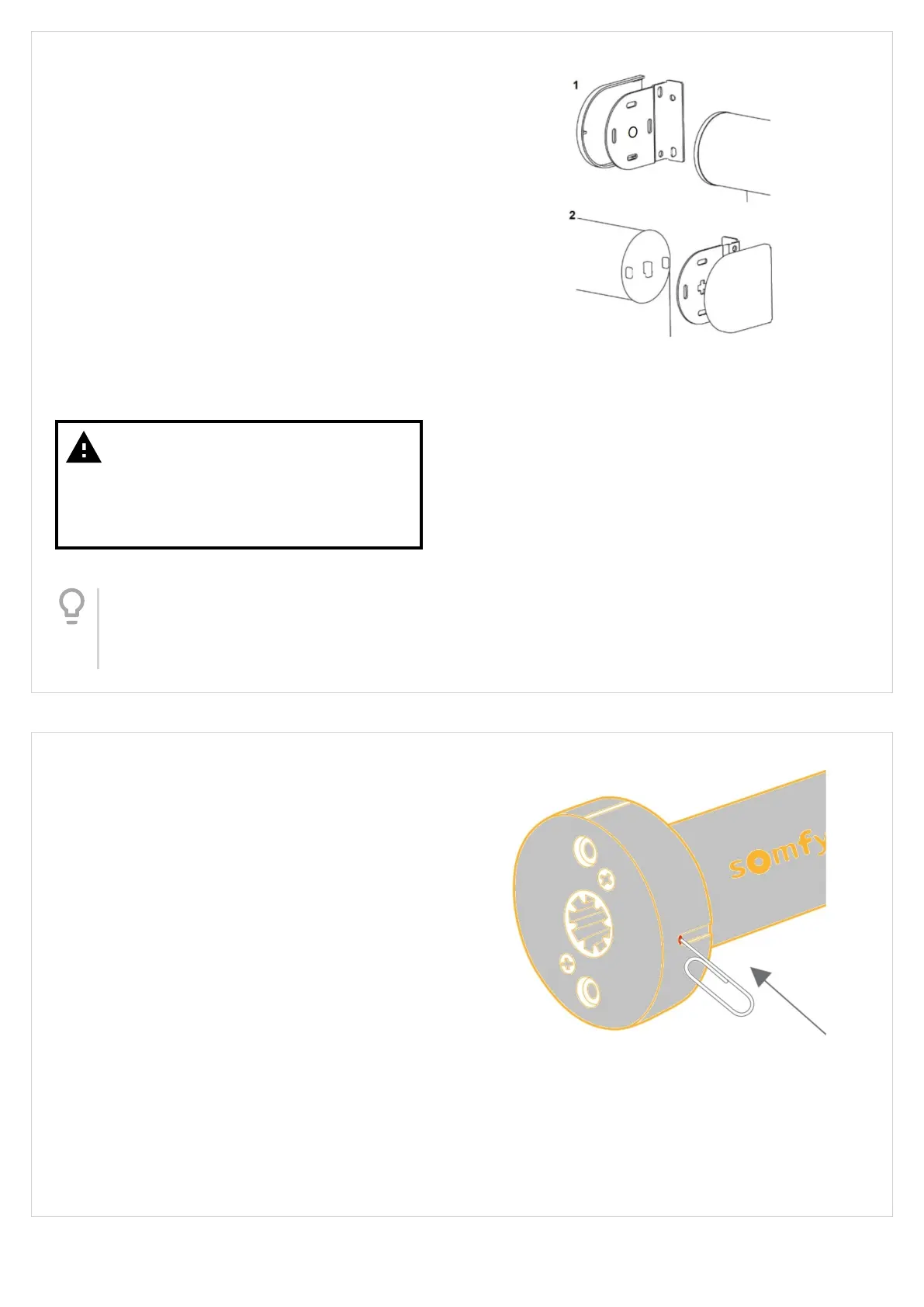

Mounting the roller blind
Hold the blind to the brackets with the fully wound
fabric in the correct position based on your order
(front or rear roll) – the motor program/reset button
should be accessible.
1. Secure the idle end (opposite the motor end) into
position by locating the circular pin shaped plunger
into the circular shaped part of the bracket.
2. Now angle the motor head side into position and
slot the prongs of the motor head plate into the
bracket, ensuring that the central prong drops into
position on the bracket.
Warning
Important note: Ensure that the plunger
at the idle end (opposite the motor
end) is depressed by at least 5mm
when marking the hole positions.
Tip
Make sure the 'Somfy' logo on the motor
plate is orientated 'UP' for easy coupling
with the bracket.
Step 6 / 8
POWER UP & TESTING
Your roller blind is tested to ensure it is operating
correctly prior to dispatch. During this process, the
upper and lower stop positions are preset based on
your height measurement. We also pair the Situo
control to the motor.
Wake up the motor
To preserve battery charge, the motor is supplied in
‘Sleep Mode’ and requires waking up once the blind is
tted and ready to operate.
To wake up the motor, briey press and release the
program/reset button on motor head (you may need
to use a paper clip to access the button) - the blind
will jog briey Up/Down and is ready to operate.
