Step 6 / 14
CASSETTE ROLLER BLIND INSTALLATION

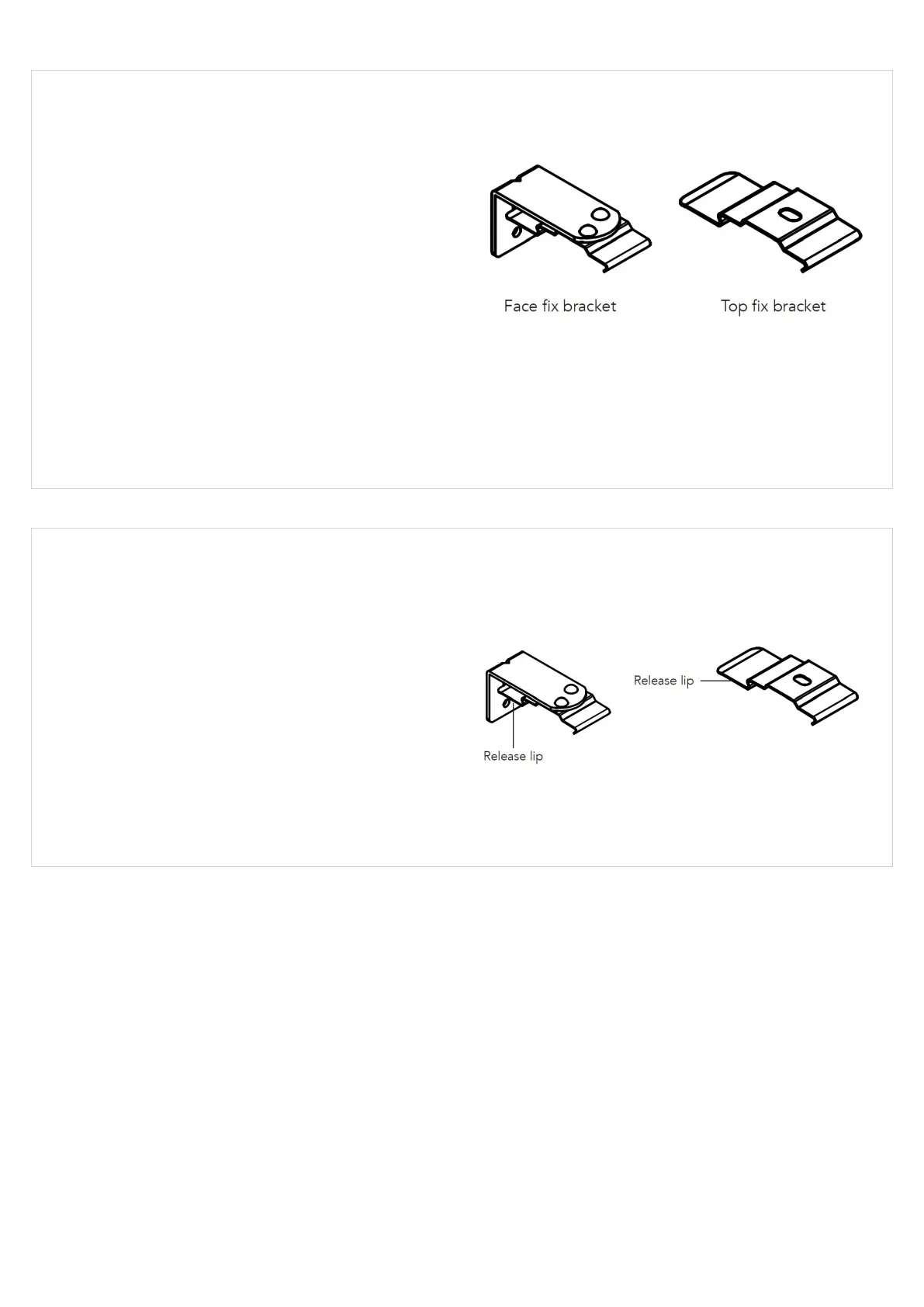

Bracket Types
There are two bracket options for open cassette
blinds, face x and top x.
For a blind up to 1 metre wide attach two brackets
tted approximately 75mm from each end of the
blind. Additional brackets with blinds >1M wide
should be spaced evenly between these:
• Up to 1M = 2 brackets
• >1M to 2M = 3 brackets
• >2M = 4 brackets.
Step 7 / 14
CASSETTE ROLLER BLIND INSTALLATION
The release lip on the bracket must face the back of
the blind.
Use the supplied screws per bracket ensuring that the
brackets are level.
Remember to allow room for the blind to clear any
obstacles when deployed, e.g. door or window
handles.
Version 41
6
