MPI-520 – USER MANUAL
Remarks:
WARNING:
When phase voltage is detected on PE lead, measurements must be immediately
stopped and a fault in the installation must be removed.
- The person making a measurement must ensure that he/she is standing on a non-insulated floor during
the measurement; otherwise the result of the measurement may be incorrect.
- The threshold value, which triggers the signal of exceeded allowable voltage on PE conduit, is approx-
imately 50 V.

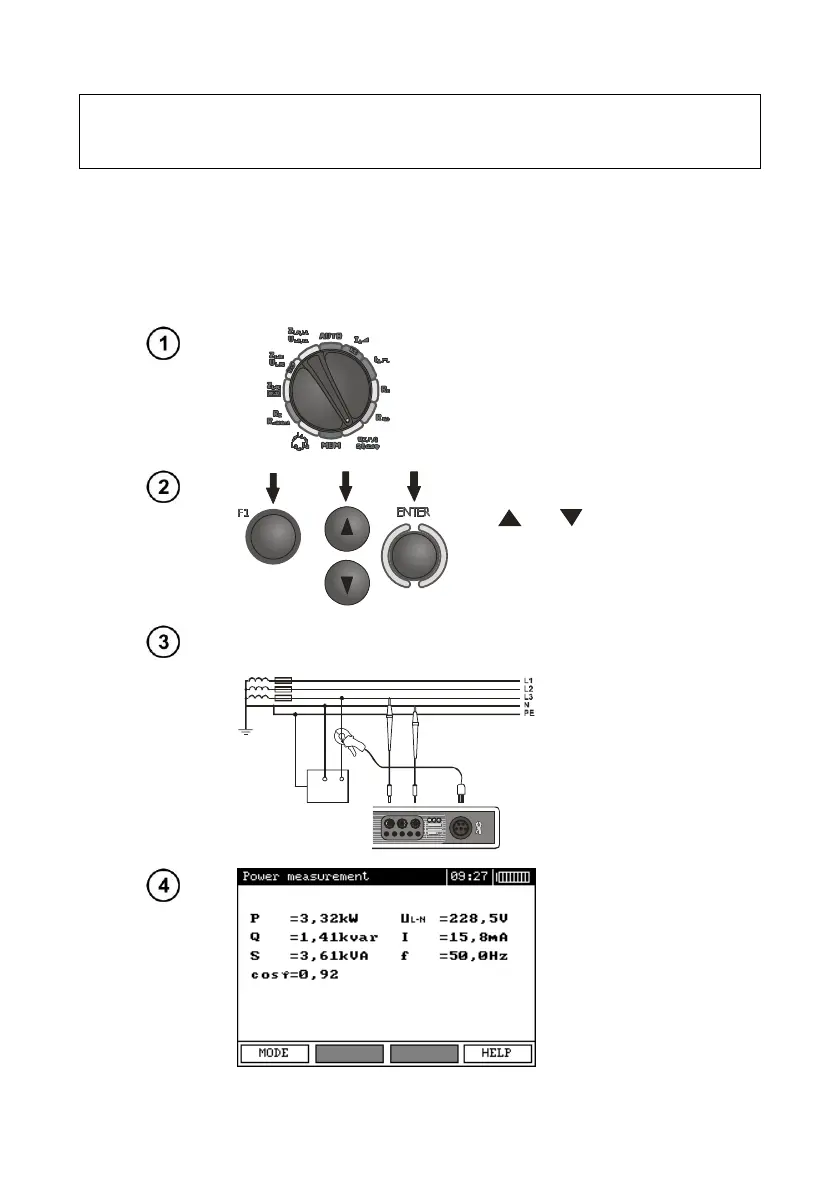

3.3 Measurement of current, active power, reactive power, apparent
power and cosφ coefficient
Set the rotary switch of function se-
lection at U,I,P,Q,S,f,cosφ position.
Press F1 push-button. Select
“U,I,f,cos,P,Q,S” by means
of and push-buttons
and press ENTER push-but-
ton. (If you want to measure
voltage or current only, select
a proper position.)
Assemble the system according to the below drawing.
