MPI-
520
–
USER MANU
AL
39
Read out the re
sult.
Remarks:
- Remarks and
messages are the
same as in point 3.8.1.

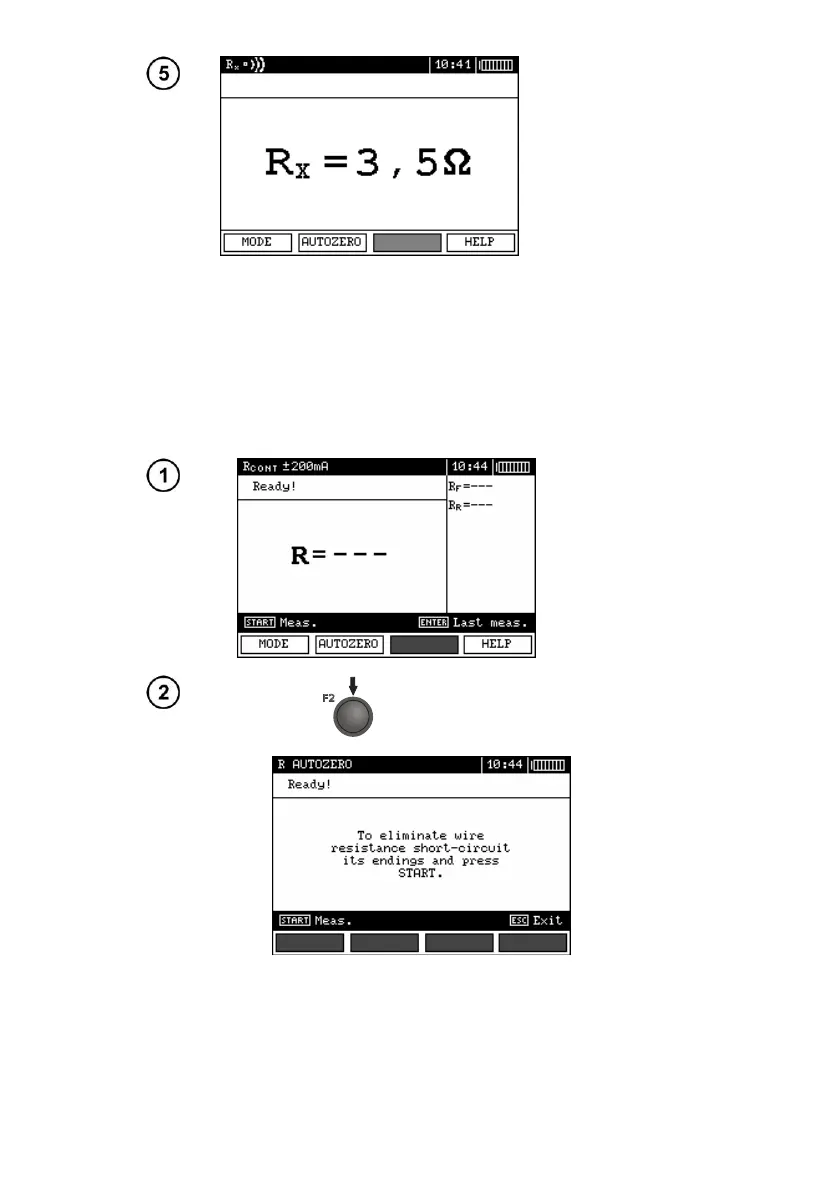

3.8.3
Calibration of test lead
s
In or
der to
eliminate
the impact
of
the r
esistance o
f te
st leads
on
measurement
result,
the
compen-
sation
(autoze
roing) of
resi
stance m
ay
be performed.
For
this
purpose,
R
X
and
R
±200
mA
functions
have
A
UTOZERO
s
ub-function
.
Press
F2
push-but
ton.
40
