MPI-
520
–
USER MANU
AL
36
3.8
Low
-vo
ltage measurement of
resistance
3.8.1
Measurement of res
istance of protectiv
e con
ductors and
equipotential
bonding w
ith
±
200
m
A current

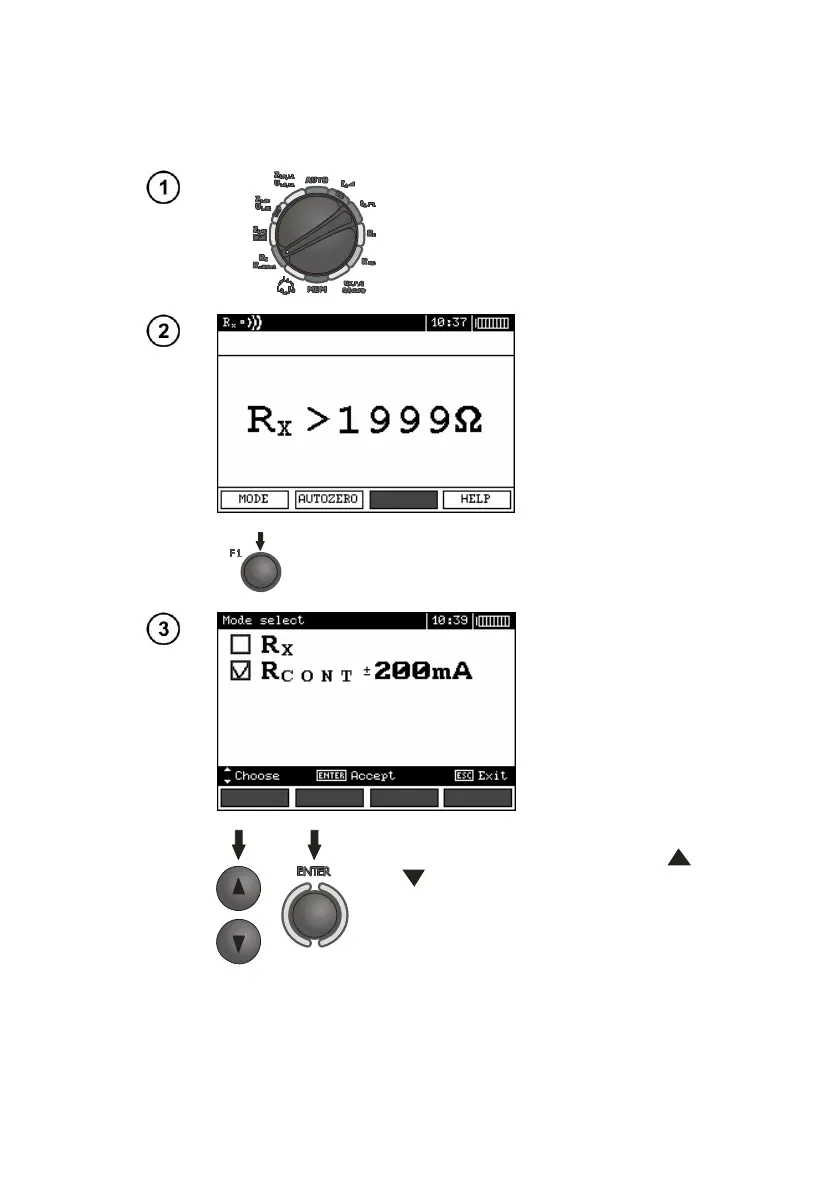

Set
the
rotary
switch
of
function
selection
at
R
X
R
±200
mA
position.
Press
F1
push-but
ton and move to sele
ction of
measurement
mode.
Select
R
CON
T
±200
mA
item
by
means
of
and
push-button
s
and
confirm
by
pressing
ENTER
.
37
39
