MPI-520 – USER MANUAL
Select an appropriate item by means of and
push-buttons and confirm by pressing
ENTER.
Remark: If it is known that L and N leads in the socket are
exchanged, after pressing F2 push-button, the sequence
of (N)(PE)(L) can be selected in order to ensure that the
meter provides correct results of measurements.

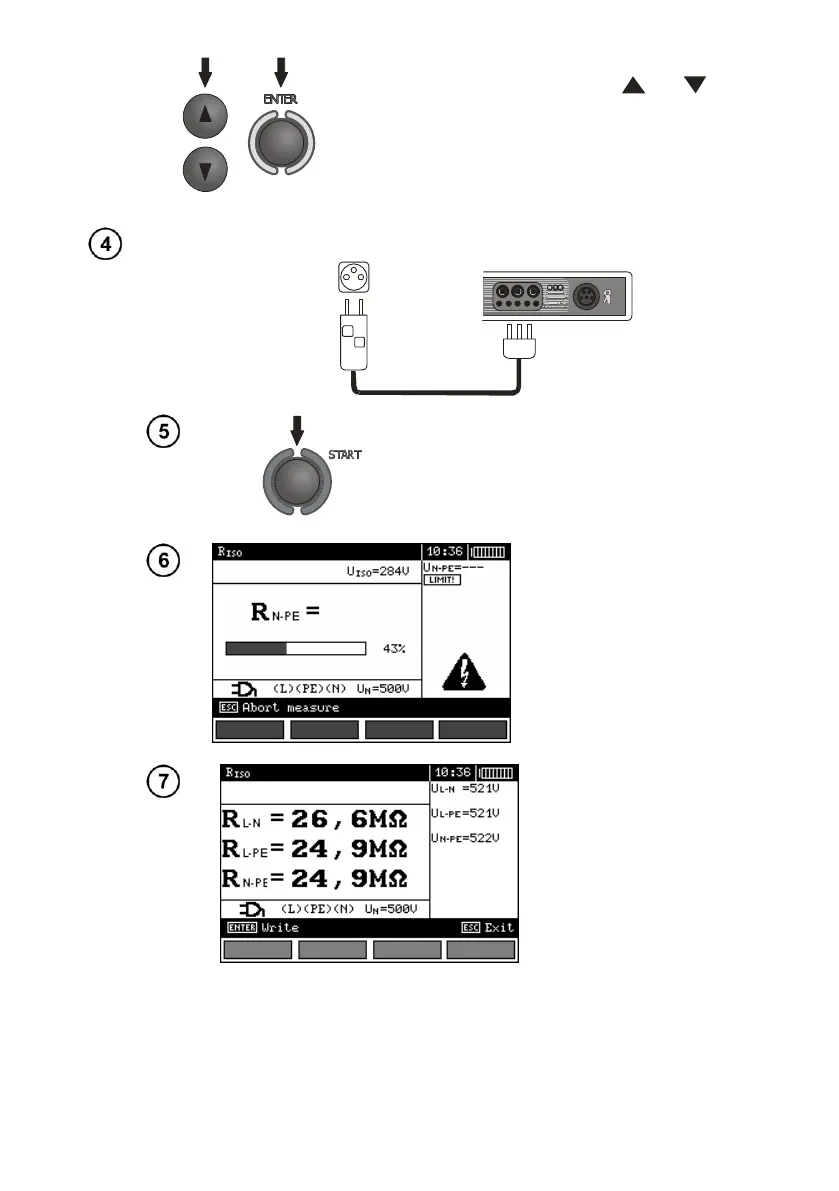

Connect WS-03 lead or WS-04 lead to the socket tested.
Press START push-buttons to
start measurement. If any of the
voltages exceeds allowable volt-
age value (50 V), Object under
voltage message is displayed and
the measurement is blocked.
View of the
screen during
measurement.
Symbol of the re-
sistance being
measured is dis-
played.
Progress bar
shows % of pro-
gress of total
measurement.
Remarks:
- Remarks and messages are the same as in point 3.7.1.
