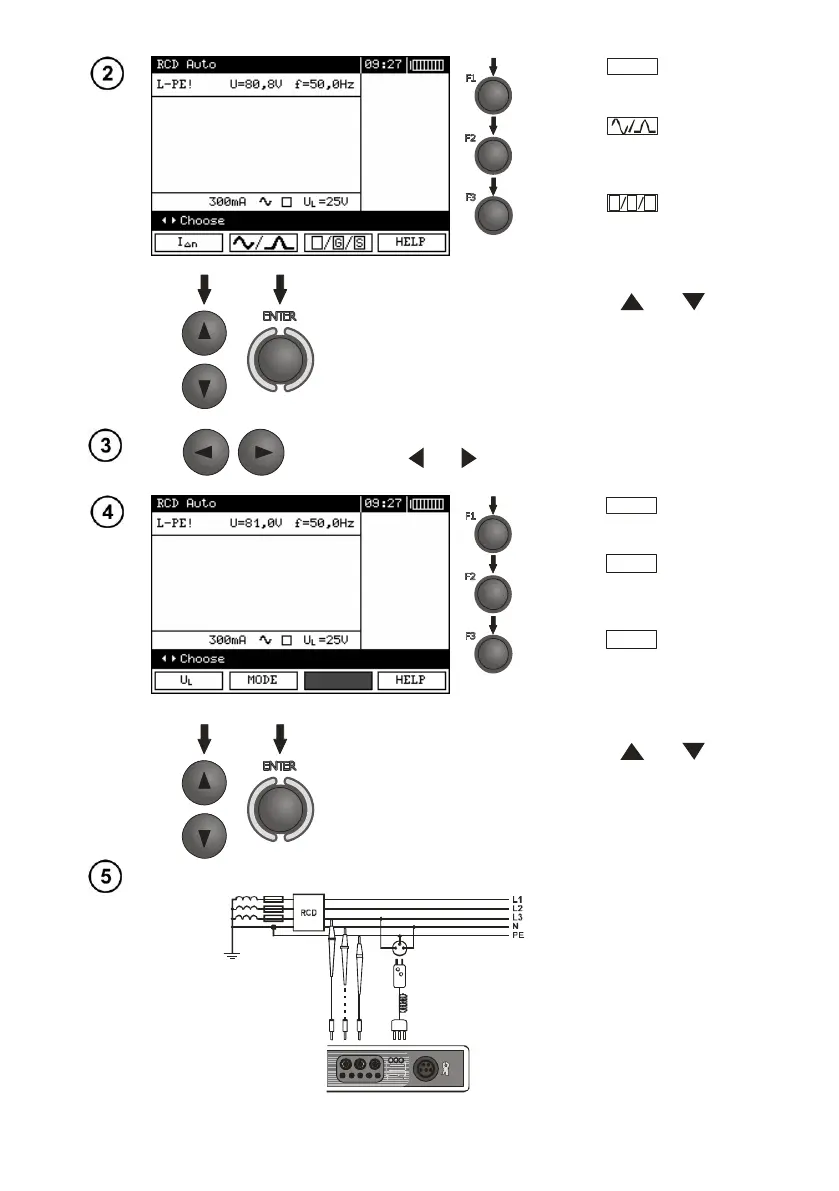

Press F1
I
n
push-button
and move to I
n
selection.
Press F2 push-button
and move to selection of cur-
rent waveform.
Press F3
G S
push-button
and move to selection of RCD
type.
Select an appropriate item by means of and
push-
buttons and confirm by pressing
ENTER.
Move to selection of a second group of parameters by
means of and push-buttons.
Press F1
U
L
push-button
and move to selection of U
L
.
Press F2
MODE
push-button
and move to selection of
measurement mode.
Press F3
WIRE
push-button
and move to selection of L
lead length (at Z
L-PE
RCD
measurement).
Select an appropriate item by means of and
push-
buttons and confirm by pressing
ENTER.
Connect the device to the installation according to the drawing.
or
PENL
