Chapter 7 Operation and Maintenance of the Hoisting System

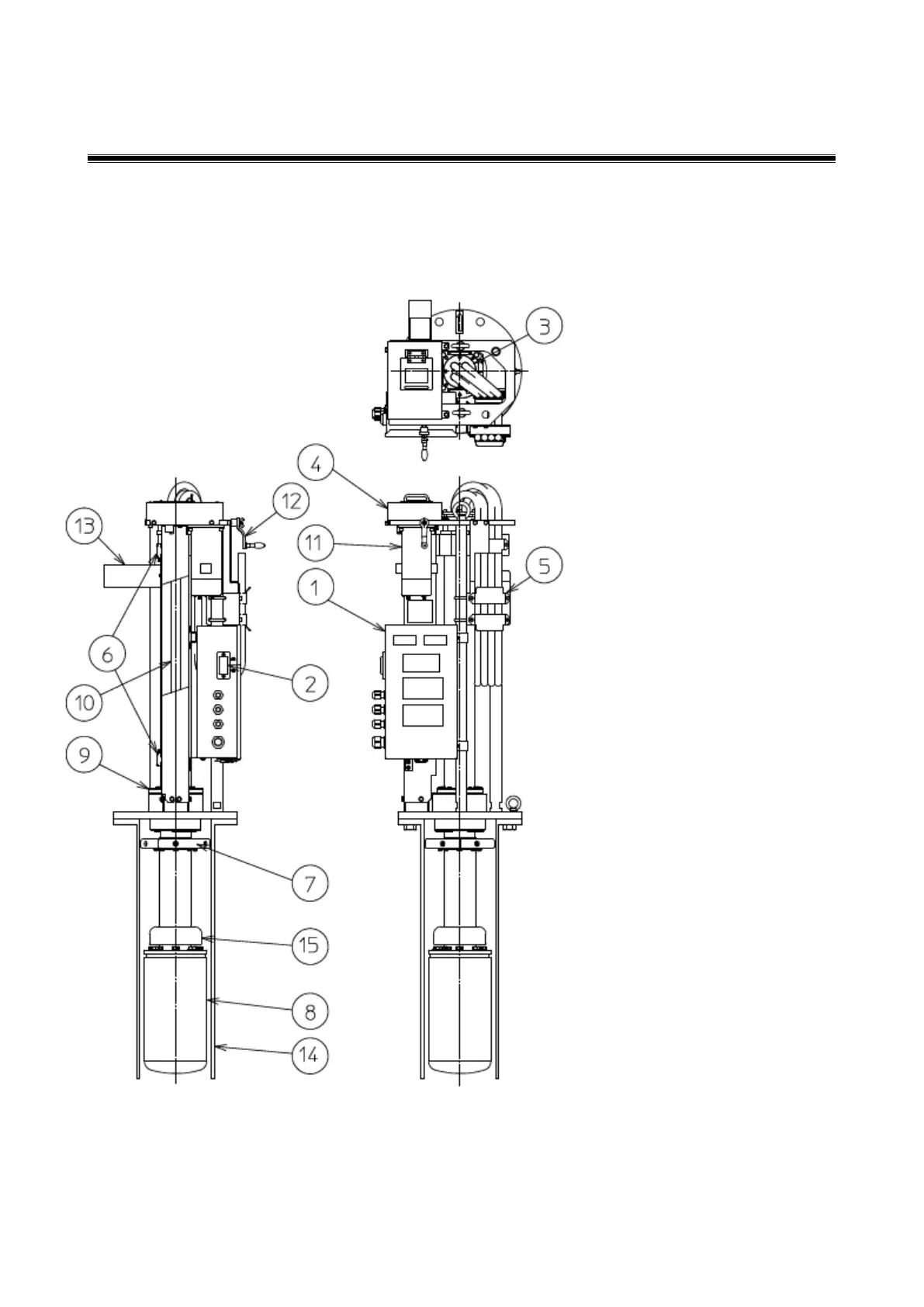

7.1 Description of each part of the M-120 hoisting system
(1) Hoist control box(C-93)
(2) Rocker switch
(3) Cable gland
(4) Gear box
(5) Cable fixing brackets
(6) Limit switch
(7) Guide ring
(8) Transducer
(9) Seal holder
(10) Feed screw
(11) Hoisting motor
(12) Manual handle
(13) Fall stopper
(14) Skirt
(15) Zinc ring
