Sonic SCS-60 User Manual

3-1

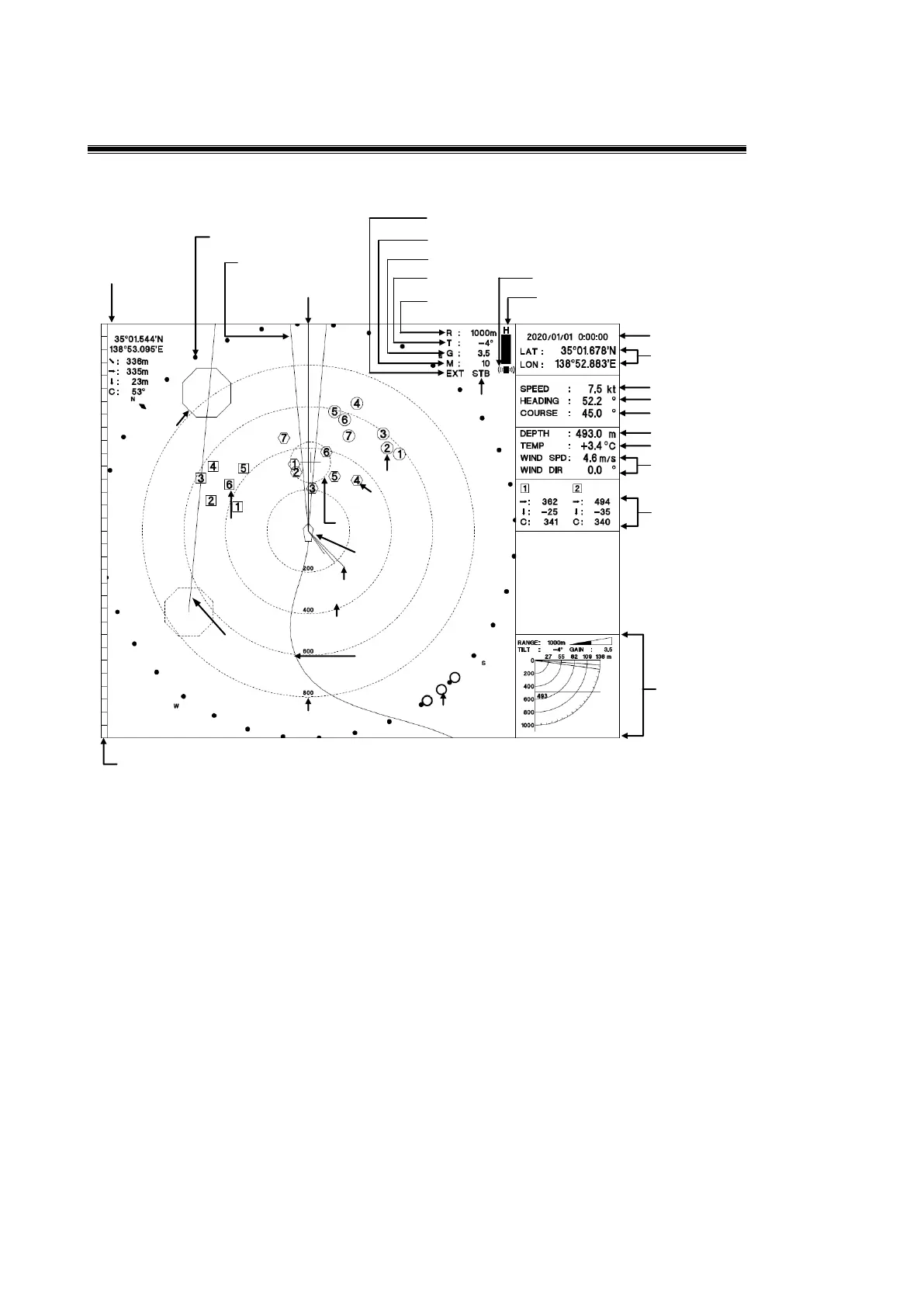

Chapter 3 Marks and Numerical Displays
The following standard marks and numerical values are described in this chapter.
1. Cursor information The information consisting of the latitude and longitude of the
cross-cursor and the direct distance, horizontal distance, depth,
and compass bearing from the user’s boat position to the
cross-cursor is shown. When you do not input data for the
latitude and longitude of your boat using external equipment,
the information of the cross-cursor will not be shown.*
2. Bearing mark The bearing scale is indicated. The mark is changed after
inputting bow-bearing information from external equipment.*
3. Audio mark This mark shows the signal range using audible sound and an
audio screen. The signal range is the region between the two
lines (yellow).
9 Range
8 Tilt
7 Gain
6 Internal memory numbers
11 Hoisting amount
12 Date/time
13 Latitude/longitude
14 Ship speed
15 Heading
16 Course
17 Depth
18 Water temperature
19 Wind speed/wind direction
20 Event information
27 User’s ship mark
26 Cross cursor
29 User’s ship wake mark
23 Event mark
24 Event mark
25 Event mark
32 Color bar
22 Fish school mark
28 Fish school movement
mark
21 Stabilization
10 Transmission indication
33 Tilt information
1 Cursor information
4 Bow line
5 External synchronization
2 Bearing mark
3 Audio mark
30 Range Ring Mark
31 Range Ring Distance Mark
33 Current Mark1
33 Current Mark2
