Operation and Maintenance Documentation GUARD v202301
8.7.2 Without DOOR SWITCH

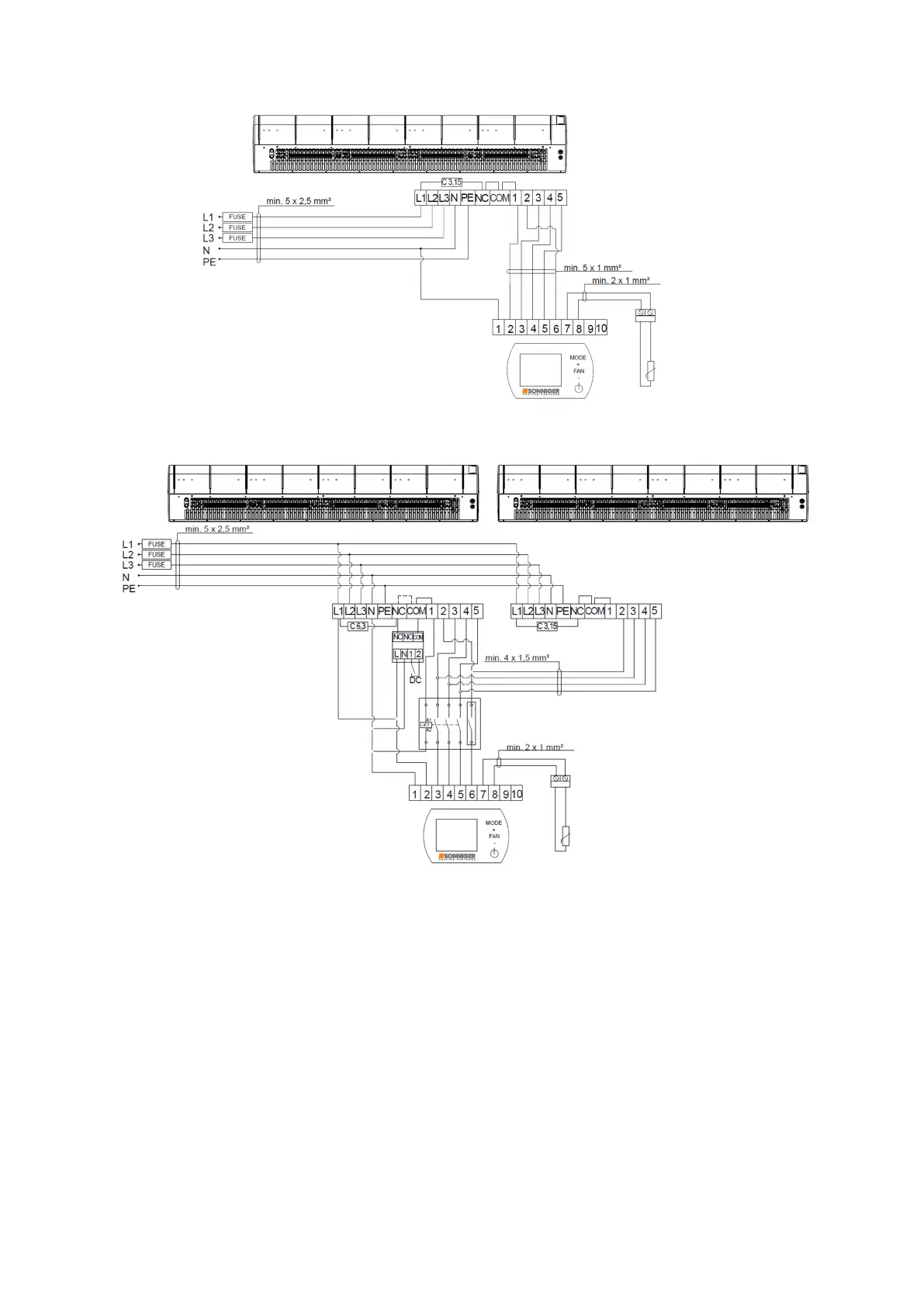

8.8 Diagram of connecting two GUARD 100-150-200 E (electric heater) to the INTELLIGENT panel
8.8.1 With DOOR SWITCH
In the MASTER curtain between the L-NC terminals, replace the factory-made fuse (C 3.15) with C 6.3 (for work with DOOR
SWITCH remove the bridge between terminal NC-COM).
