Sonniger GUARD - Panel Intelligent WIFI Controller; Panel Description and Functions

Operation and Maintenance Documentation GUARD v202301
10 PANEL INTELLIGENT WIFI – programmable controller manual
Panel Intelligent WIFI controls actuators/valves and automatically regulates the fan’s speed depending on the required room
temperature. The lower temperature in the room the higher the air output is set. Fan speed changes automatically at a lower
rate when the temperature in a room gets closer to the desired one. Intelligent WIFI allows to management work of the device
via the mobile app TUYA SMART.
Functions
 Panel INTELLIGENT is designed for the SONNIGER products
 Weekly thermostat (5/1/1 days)
 Automatic or manual 3-step fan speed adjustment.
 Control room temperature (by opening/closing the valve, or by
adjusting air volume automatically).
 Antifreeze mode- protection against dropping room
temperature below critical level 5 ~ 15 °C.
 Possibility to connect external NTC temperature sensor.
 BMS communication by MODBUS protocol
 Wireless control via the TUYA SMART app
 Dry contact feedback

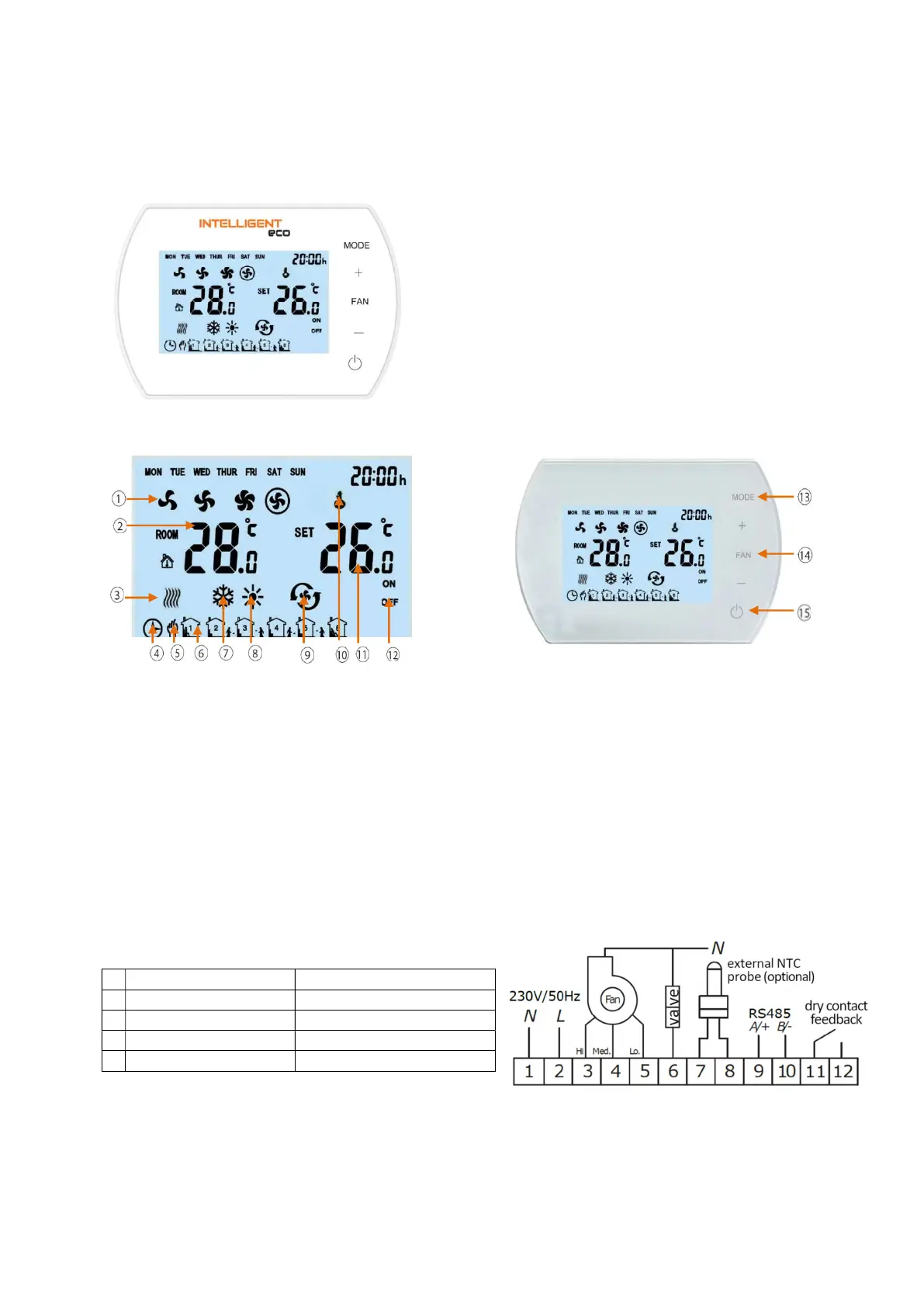

Panel description
1. Fan Speed: LOW, MED, HI and AUTO
2. ROOM TEMP. or NTC EXTERNAL SENSOR TEMP. (measured
temperature)
3. Anti-freeze indication
4. Automatic programable mode
5. Manual mode
6. 6 Time Zones for each day
7. Cooling Mode
8. Heating Mode
9. Ventilation Mode
10. Buttons Lock
11. SET TEMP. (desired room temperature)
12. ON/OFF status of time zones
Technical parameters
1 Power supply 230VAC/50Hz
2 Temperature setting range 5°C 40°C
3 Temperature working range -10°C 60°C
4 IP class 20
5 Temperature sensor Internal / external NTC (optional)
13
MODE
Press shortly to select manual or automatic
mode Press and hold for 3 s and select colling,
heating or ventilation mode
14 FAN Press shortly and select fan speed: Low, Med,
High or Auto
15 ON/OFF INTELLIGENT Panel
