Operation and Maintenance Documentation GUARD v202301

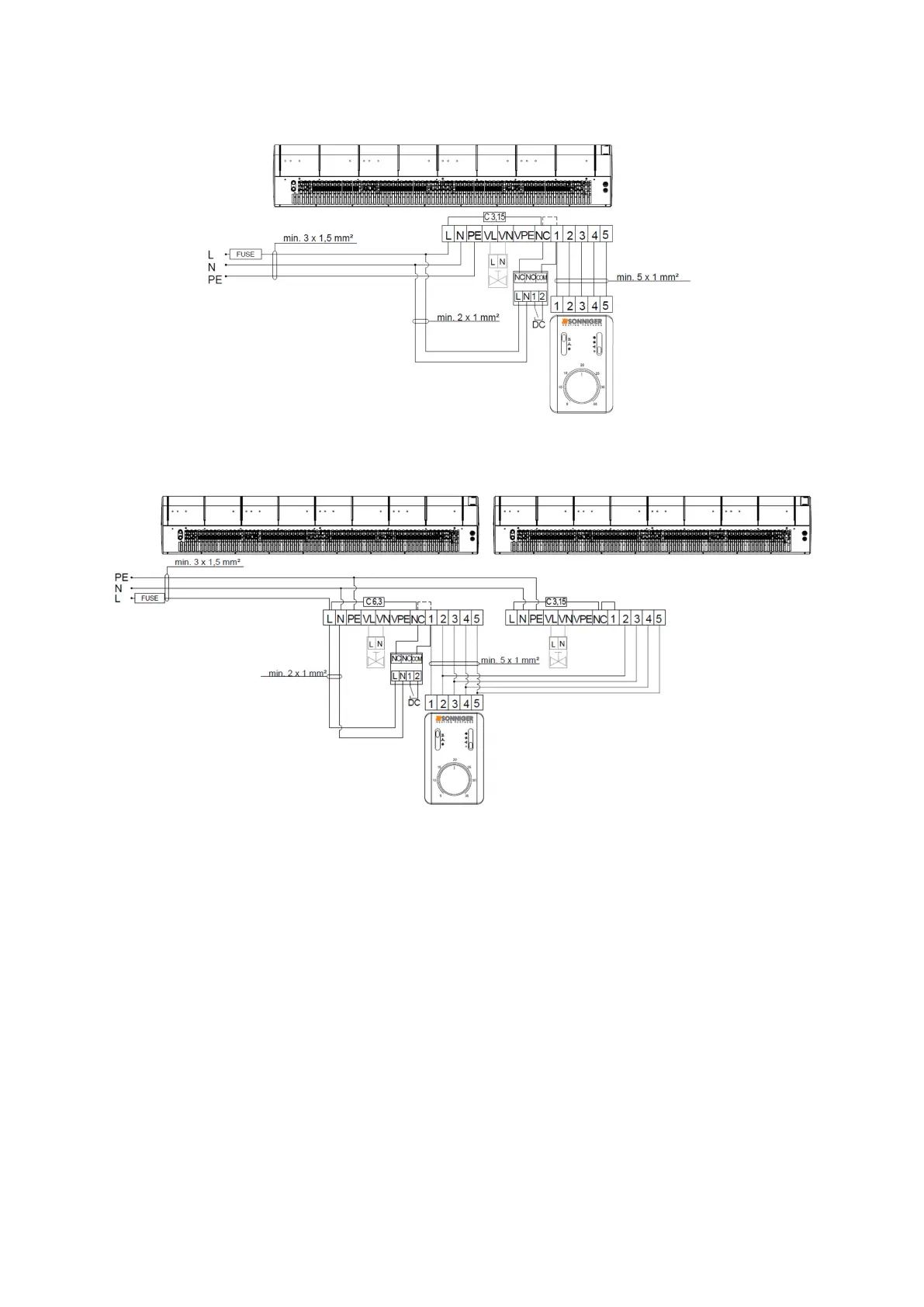

8.1 Diagram of connecting one GUARD 100-150-200 W (water heater) and C (without heater) to the COMFORT panel
*The unit set does not consist of: a master switch, a fuse, a feeding cable
In case of working without DOOR SWITCH the bridge between terminal NC-COM need to be keep.
8.2 Diagram of connecting two GUARD 100-150-200 W (water heater) and C (without heater) to one COMFORT panel
*The unit set does not consist of: a master switch, a fuse, a feeding cable
In case of working without DOOR SWITCH the bridge between terminal NC-COM need to be keep.
In the MASTER curtain between the L-NC terminals, replace the factory-made fuse (C 3.15) with C 6.3 (for work with DOOR
SWITCH remove the bridge between terminal NC-1)
