Operation and Maintenance Documentation GUARD v202301
ATTENTION!
PTC heaters power supply 3x400V/50Hz or 3x400V/60Hz
min. 5 x 2,5 mm for G100E; (B16)
min. 5 x 4 mm for G150E; (B20)
min. 5 x 6 mm for G200E; (B25)

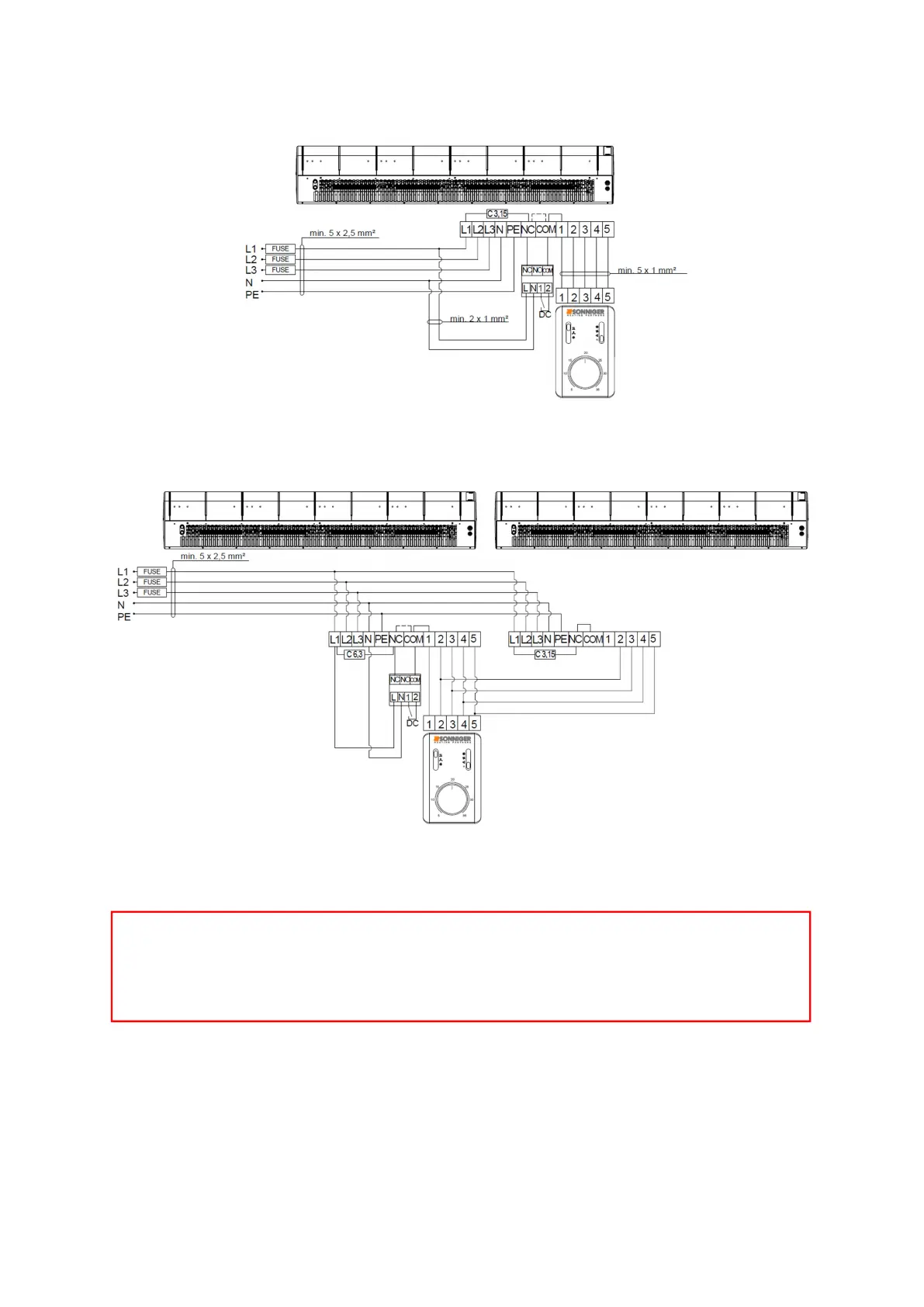

8.3 Diagram of connection of one GUARD 100-150-200 E curtain (electric heater) to the COMFORT panel
*The unit set does not consist of: a master switch, a fuse, a feeding cable
In case of working without DOOR SWITCH the bridge between terminal NC-COM need to be keep.
8.4 Diagram of connection of two GUARD 100-150-200 E curtain (electric heater) to one COMFORT panel
*The unit set does not consist of: a master switch, a fuse, a feeding cable
In case of working without DOOR SWITCH the bridge between terminal NC-COM need to be keep.
In the MASTER curtain between the L-NC terminals, replace the factory-made fuse (C 3.15) with C 6.3 (for work with DOOR
SWITCH remove the bridge between terminal NC-COM)
