3
AVD-K150B/K150E/K150G/K150N/K150R

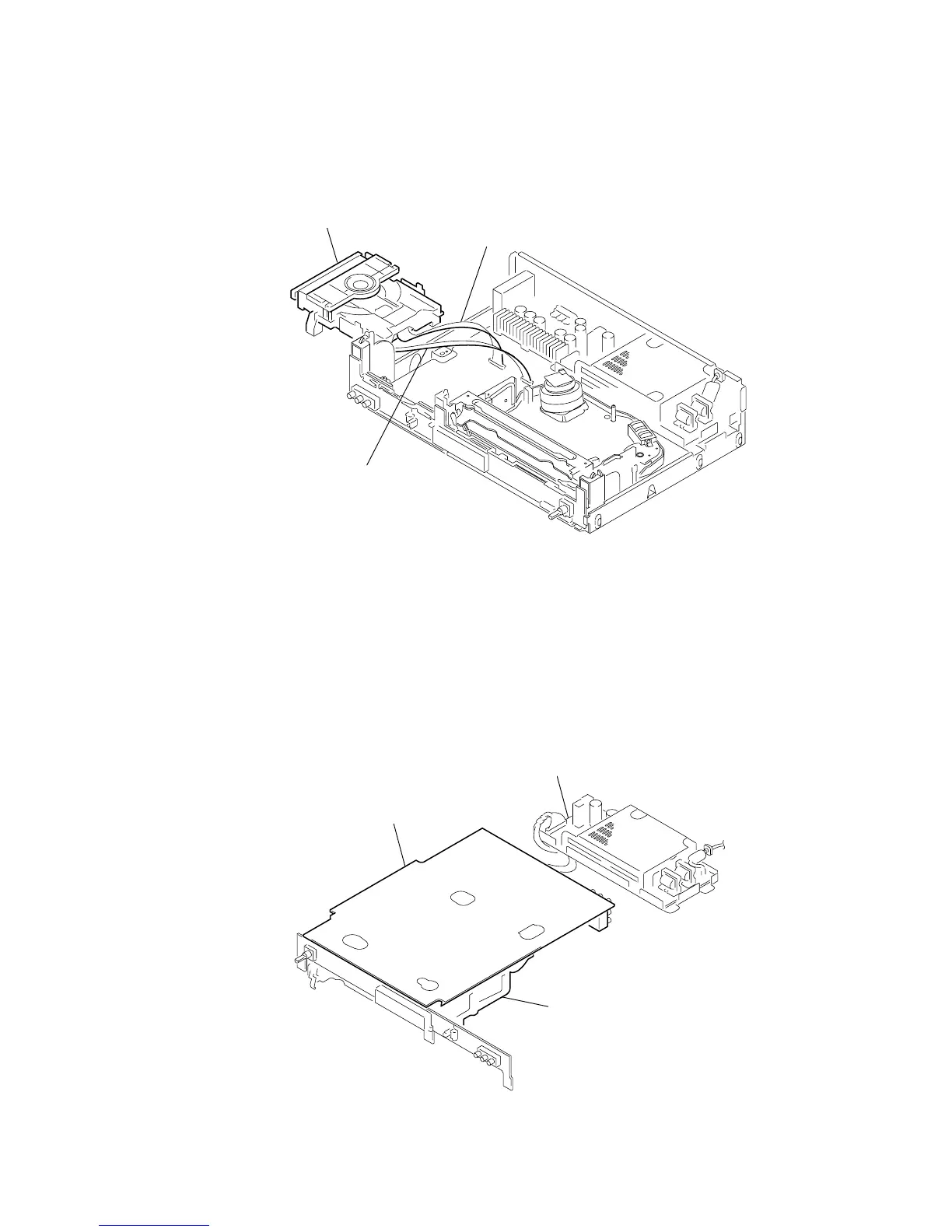

• SERVICE POSITION-1 (DVD Mechanism Deck)
Extension cable (J-2501-242-A, J-2501-245-A) is required to
inspect the DVD mechanism deck.
• SERVICE POSITION-2 (VIDEO Mechanism Deck)
Perform the operation check of the VIDEO mechanism deck
after the VCR board and the VIDEO mechanism deck are
turned upside down.
J-2501-242-A (1mm/11P/L300)
J-2501-245-A (1mm/23P/L300)
DVD mechanism deck
SMPS board
VCR board
VIDEO mechanism deck
To Next Page
