AVD-K150B/K150E/K150G/K150N/K150R
SECTION 6
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AED : North European model
RU : Russian model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 9-885-062-72 PANEL ASSEMBLY,FRONT (150E)
1 9-885-062-84 PANEL ASSEMBLY,FRONT (150N)
1 9-885-062-64 PANEL ASSEMBLY,FRONT (150B)
1 9-885-062-79 PANEL ASSEMBLY,FRONT (150G)
1 9-885-062-89 PANEL ASSEMBLY,FRONT (150R)
2 9-885-055-34 KNOB,VOLUME
3 9-885-055-32 CASE

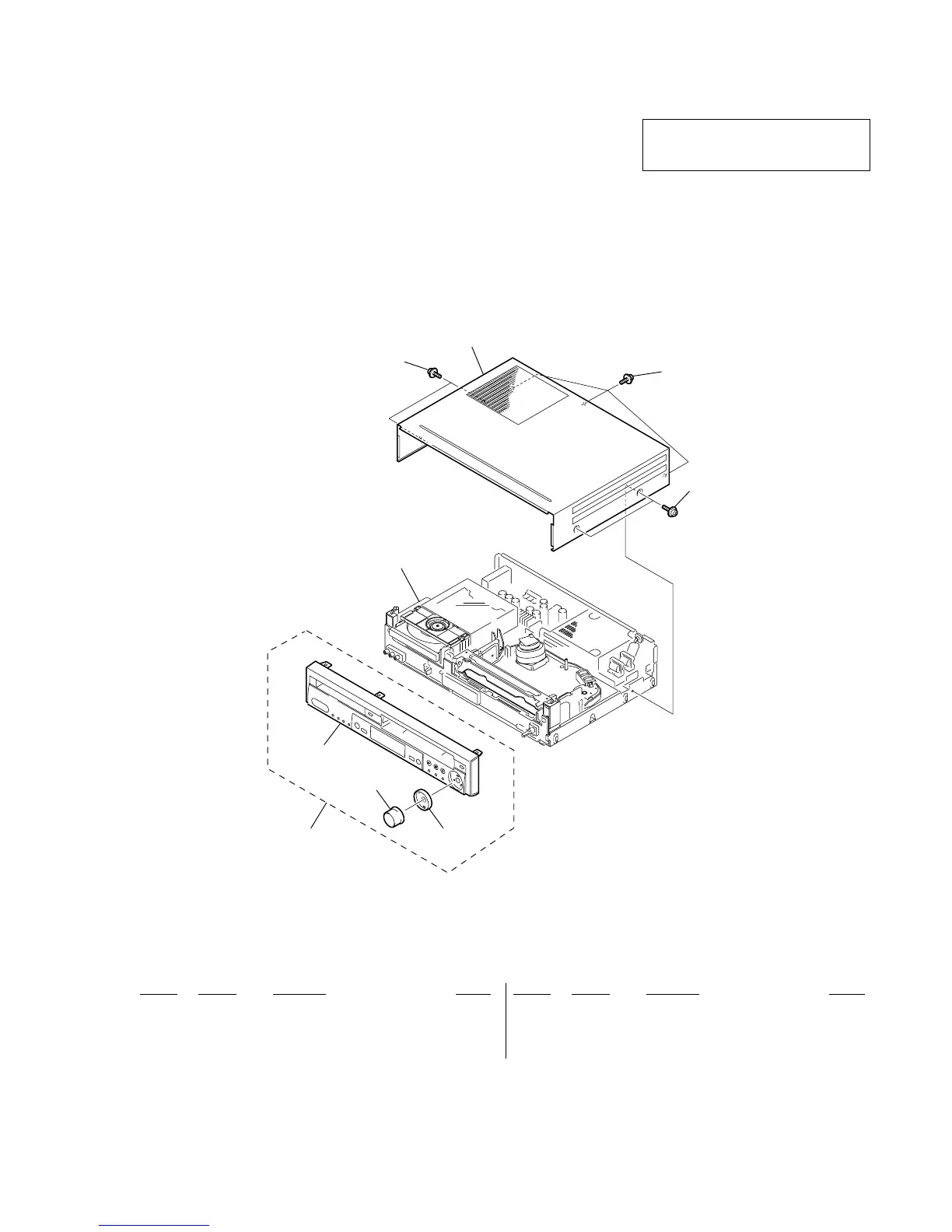

6-1. FRONT PANEL SECTION
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
not supplied
not supplied
overall section
1
2
3
not supplied
not supplied
not supplied
To Next Page
