AVD-K150B/K150E/K150G/K150N/K150R
AVD-K150B/K150E/K150G/K150N/K150R

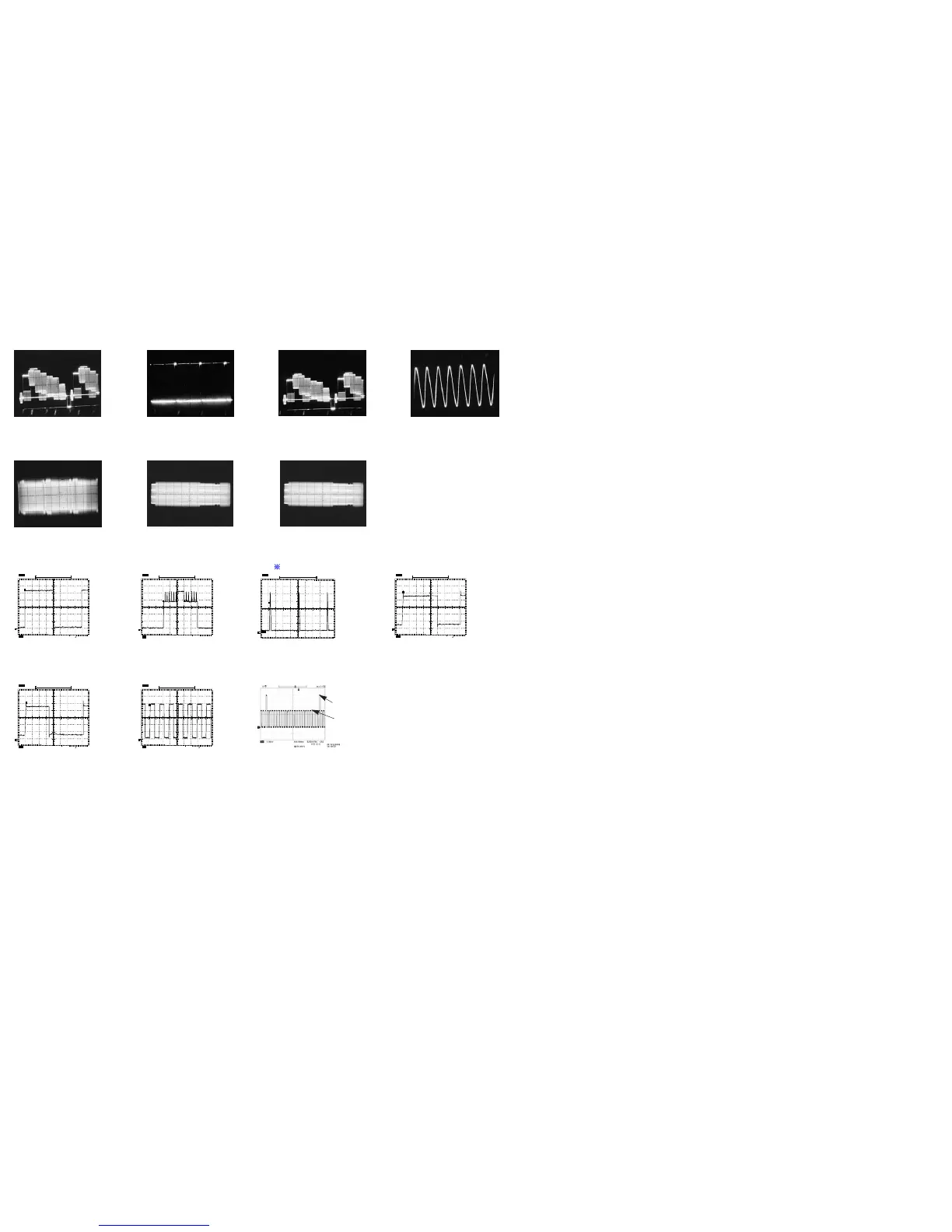

•Waveforms
1.0 V/20 msec DIV
PB/REC (C-SYNC OUT)
IC301 yj
2
200 mV/10 msec DIV
EE (VIDEO IN)
IC301 rk, t;, ts, tf, th
1
500 mV/10 msec DIV
IC301 ya, yd
EE (VIDEO OUT)
3
100 mV/200 nsec DIV
IC301 wk
PB/REC (4.43MHz X-TAL IN)
4
500 mV/2 msec DIV
IC301 of, og
SP REC (REC RF)
6
100 mV/5 msec DIV
IC301 wa
PB (PB RF OUT)
5
500 mV/2 msec DIV
IC301 ik, il
7
LP REC (REC RF)
Tek Stop : 10.0KS/s
35 Acqs
M5.00ms Ch1
Ch1
3.04 V1.00 V
T
T
1
1 V/5 msec DIV
(CTL –)
IC501 4
qs
Tek Stop : 50.0KS/s
120 Acqs
M1.00ms Ch1Ch1 3.04 V1.00 V
T
T
1
1 V/10 msec DIV
REC/PB (CFG)
IC501 9
qd
(DPG)
(DFG)
1 V/10 msec DIV
REC/PB (DPG/DFG)
IC501 <z/c, <z/v
qf
Tek Stop : 250KS/s
299 Acqs
M 200 s Ch1Ch1 3.04 V1.00 V
T
T
1
1 V/200 µ sec DIV
QUE/REV (DV.SYNC)
IC501 <z/.
9
Tek Stop : 10.0KS/s
27 Acqs
M5.00ms Ch1Ch1 3.04 V1.00 V
T
T
1
1 V/5 msec DIV
(CTL +)
IC50
1 3
qa
Tek Stop : 10.0KS/s
18 Acqs
M 5.00ms
Ch1
Ch1
3.04 V
Trigger Position: 12%
1.00 V
T
1
T
0.2 V/40 µ sec DIV
QUE/REV (DV.SYNC)IC501 <z/.
q;
UPPER WAVEFORM
Tek Stop : 10.0KS/s
280 Acqs
M5.00ms Ch1Ch1 3.04 V1.00 V
T
T
1
1.0 V/5 msec DIV
8
REC/PB (V.HSW)
IC501 <z/b
– VCR Board –
