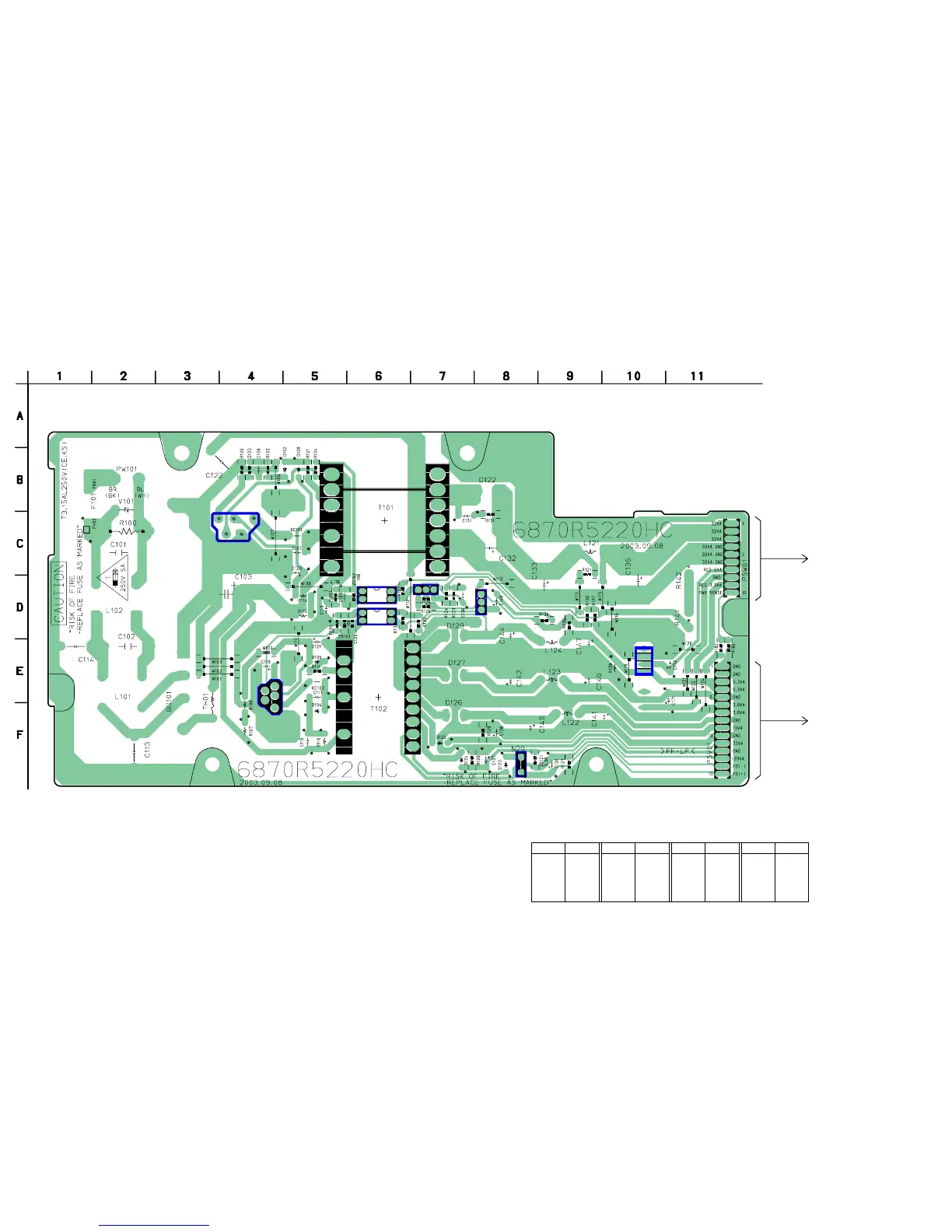

5-26. PRINTED WIRING BOARD – SMPS SECTION –
• See page 51 for Circuit Boards Location.
IC152
F102
IC106
IC103
IC102
IC105
IC104
IC101
1
1
4
2
1
3
1
3
1
2
3
4
1
2
3
4
1
2
5
4
2
5
4
1
DVD&AMP
BOARD
PWS01
F
VCR BOARD
PVS01
G
[SMPS BOARD]
• Semiconductor Location
Ref. No. Location
BD101 F-3
D102 B-5
D103 B-4
D104 F-5
D105 E-5
Ref. No. Location
D108 B-5
D122 B-8
D123 F-8
D124 F-7
D125 F-7
D126 F-7
Ref. No. Location
D127 E-7
D129 D-7
F102 F-8
IC101 C-4
Ref. No. Location
IC102 D-6
IC103 D-7
IC104 E-4
IC105 D-6
IC106 D-8
IC152 E-10
