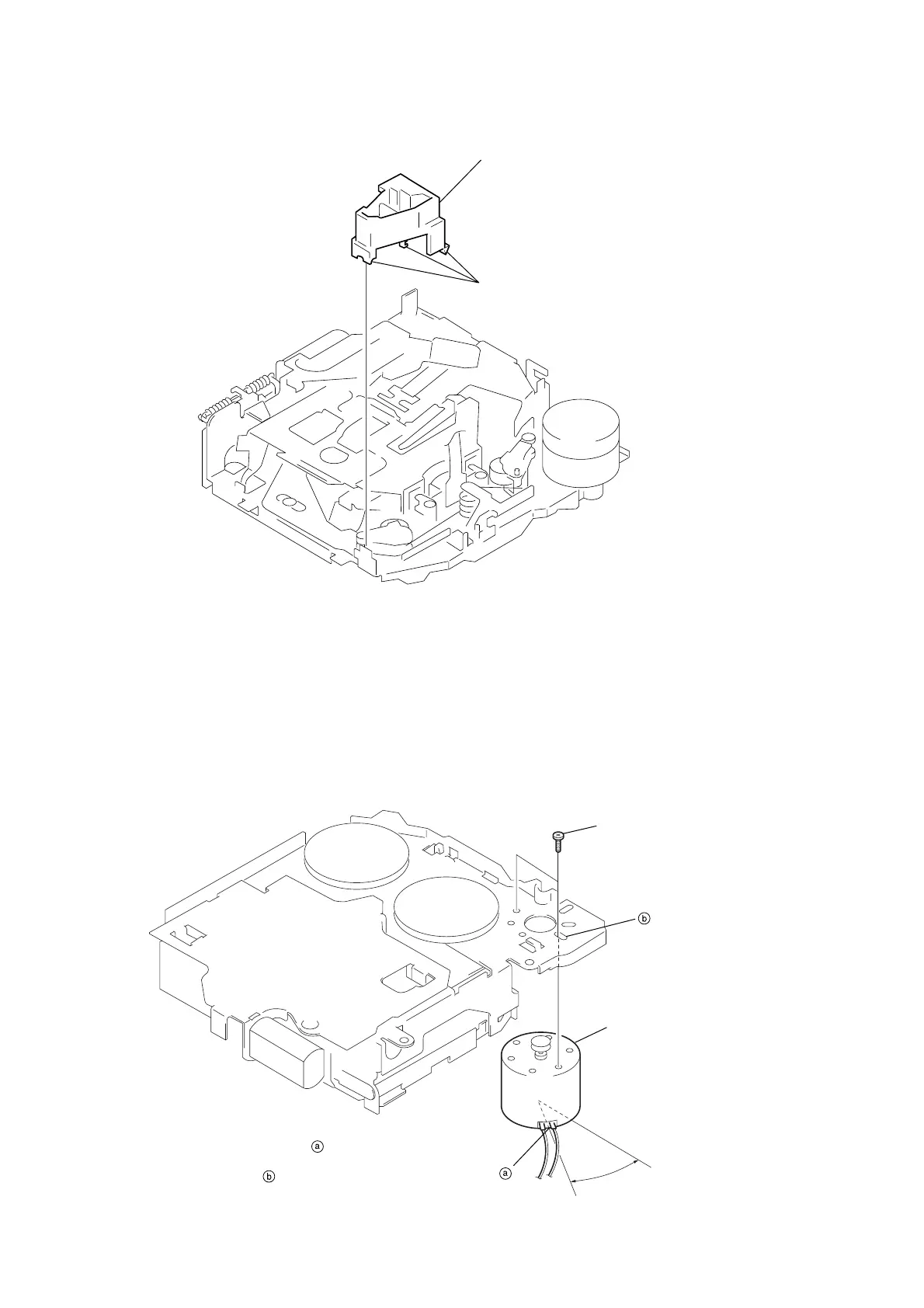

3-6. GUIDE (C)
3-7. MOUNTING POSITION OF CAPSTAN/REEL MOTOR (M901)
2 guide (C)
1 three claws
two precision screw
s
(P2 × 2)
Note: Mount the motor so that the
angle between of the
motor and the hole for the
screw becomes 30
° as
shown in this figure.
capstan/reel motor
(M901)
30˚
