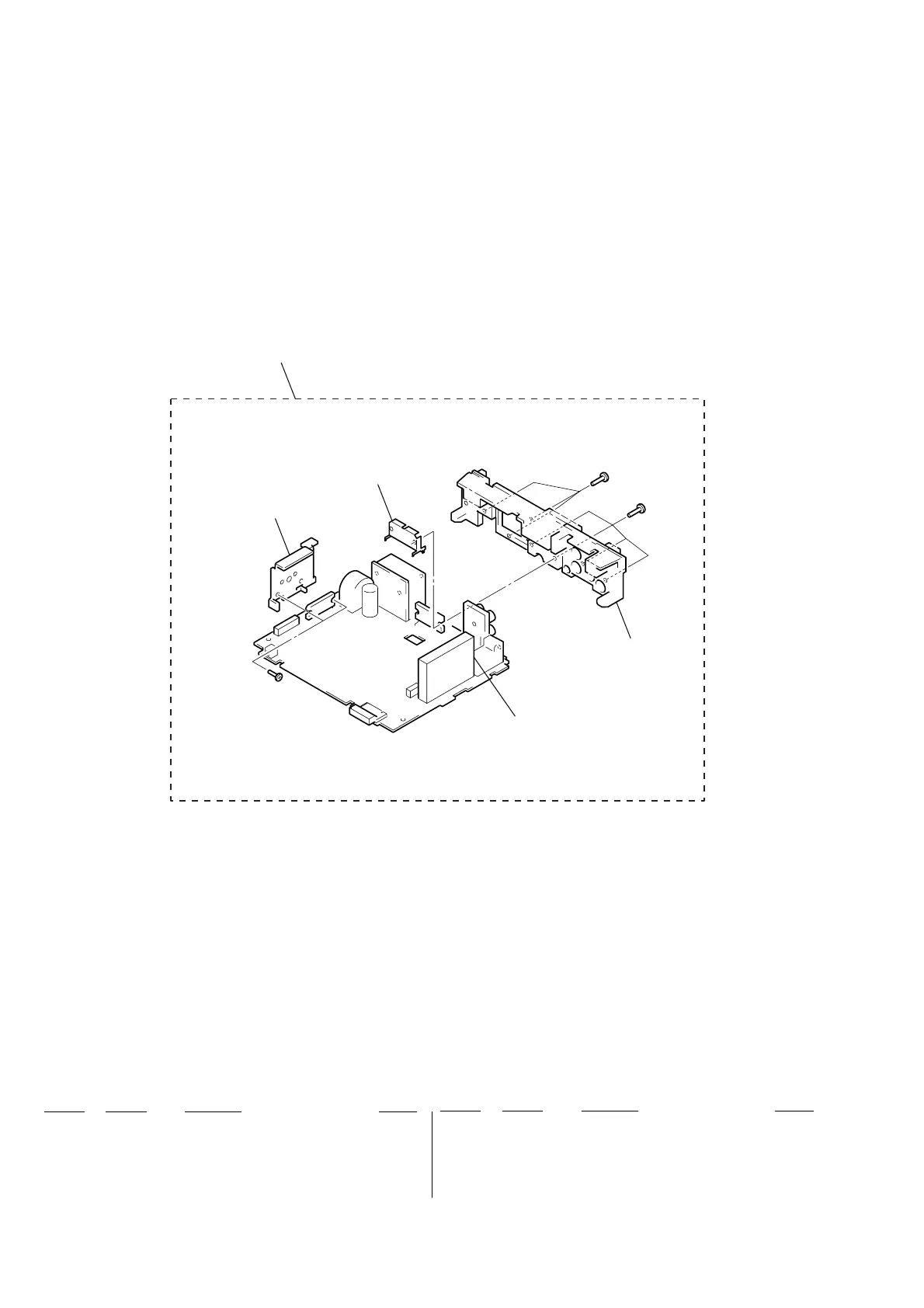

7-3. MAIN BOARD SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 A-3340-278-A MAIN BOARD, COMPLETE (CA430X)
101 A-3340-284-A MAIN BOARD, COMPLETE (CA440)
* 102 3-224-902-01 HEAT SINK (REG)
* 103 3-040-998-01 BRACKET (IC)
* 104 3-224-899-01 HEAT SINK (ISO) (CA440)
* 104 3-224-899-11 HEAT SINK (ISO) (CA430X)
TU1 A-3220-812-A TUNER UNIT (TUX-020)
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#3 7-685-794-09 SCREW +PTT 2.6X10 (S)
101
102
103
104
#2
TU1
#3
#3
