Sony CA440 - Schematic Diagram - MAIN Board (2;3)

XR-CA430X/CA440
2020

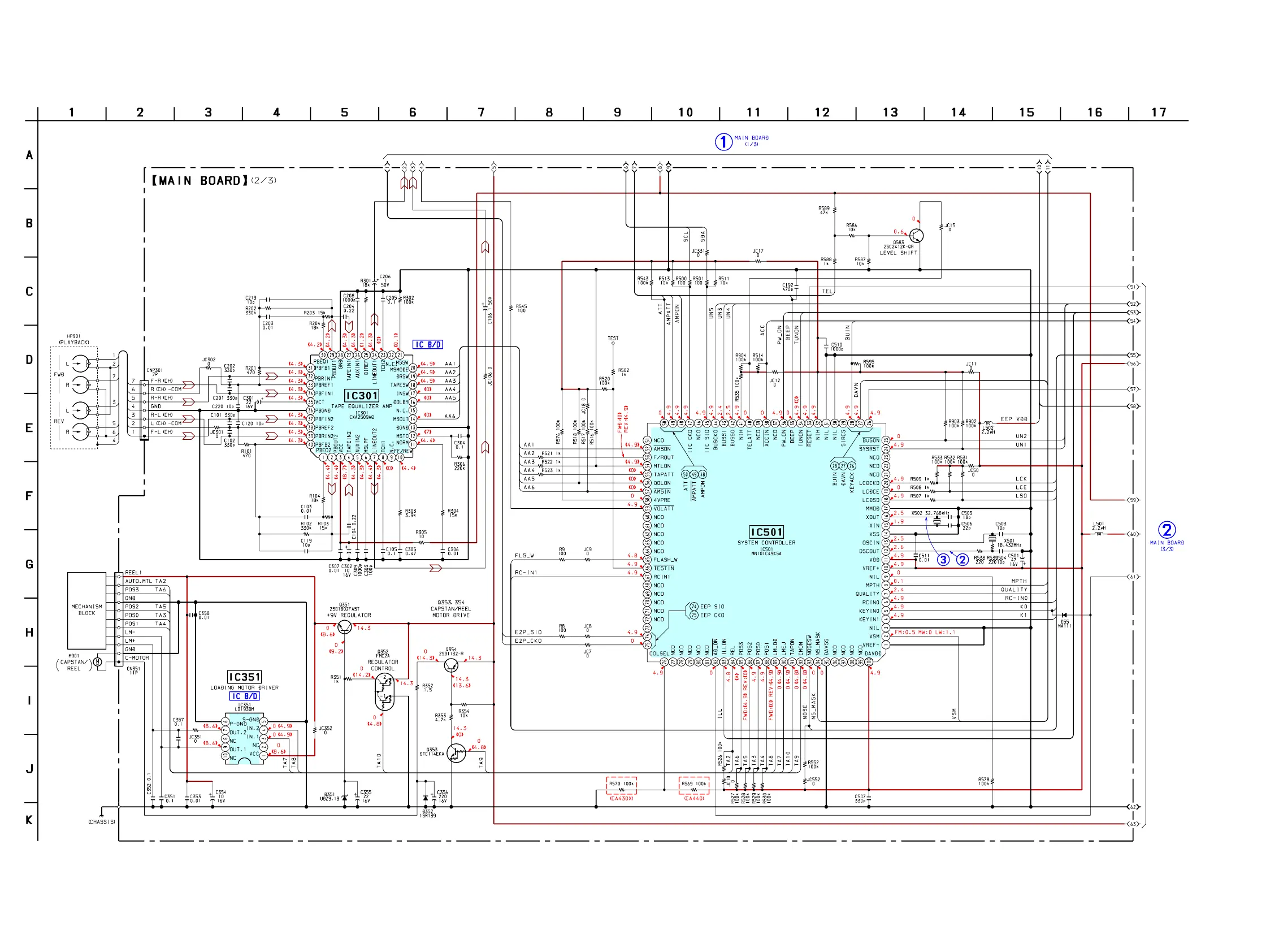

6-4. SCHEMATIC DIAGRAM – MAIN Board (2/3) –• See page 14 for Waveforms. • See page 15 for IC Block Diagrams.
(Page 21)
(Page 19)
