Sony CA440 - Front Panel Section

27
XR-CA430X/CA440

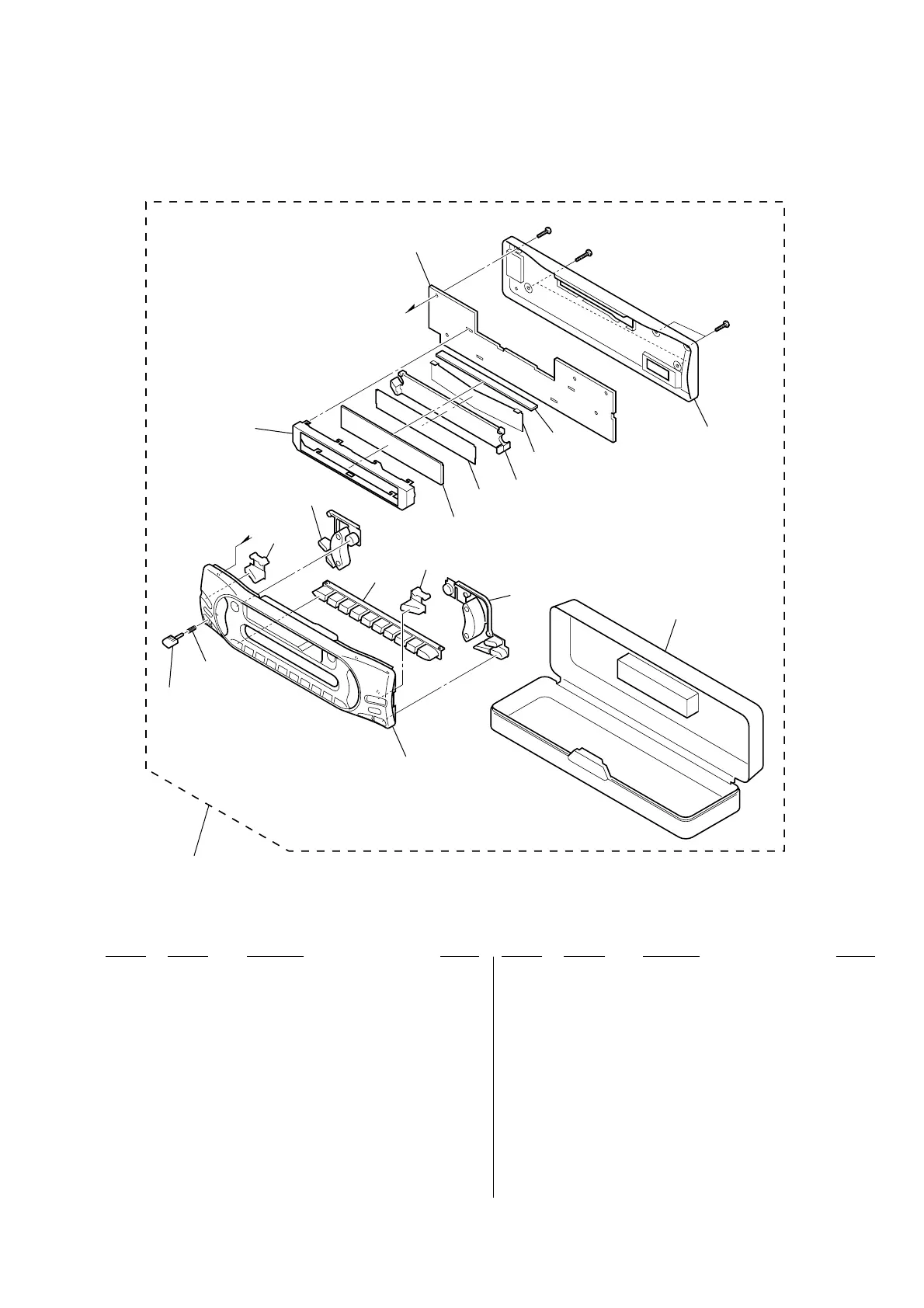

7-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 A-3337-043-A PANEL COMPLETE ASSY, FRONT (CA430X)
51 A-3337-047-A PANEL COMPLETE ASSY, FRONT (CA440)
52 3-236-597-01 BUTTON (RELEASE)
53 3-231-816-01 SPRING (RELEASE)
54 3-236-587-01 PANEL, FRONT (CA430X)
54 3-236-587-11 PANEL, FRONT (CA440)
55 3-236-591-01 BUTTON (R) (Z. + > M SEEK AMS
m . –. MBP. DSPL. OFF)
56 3-236-593-01 BUTTON (D-BASS)
57 3-236-589-01 BUTTON (PRESET)
(AF. SENS. 1. 2. 3. 4. 5. 6. PTY. TA)
58 3-236-590-01 BUTTON (L) (ATT. + VOL –. MODE. SEL)
59 3-236-592-01 BUTTON (SOURCE)
60 3-236-596-01 PLATE (LCD), GROUND
61 3-236-598-01 ILLUMINATOR (LCD) (CA430X)
61 3-236-598-11 SHEET (ILLUMINATOR) (CA440)
62 3-236-595-01 PLATE (LCD), LIGHT GUIDE
63 3-236-599-01 SHEET (REFLECTOR)
64 1-694-883-11 CONDUCTIVE BOARD, CONNECTION
65 3-236-588-01 PANEL, FRONT BACK
66 X-3378-490-2 CASE (PANEL) ASSY
LCD901 1-804-622-11 DISPLAY PANEL, LIQUID CRYSTAL (CA430X)
LCD901 1-804-628-11 DISPLAY PANEL, LIQUID CRYSTAL (CA440)
#4 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT
52
53
54
55
61
62
63
64
65
66
56
57
58
59
60
51
#4
LCD901
#4
#4
not supplied
(KEY board)
