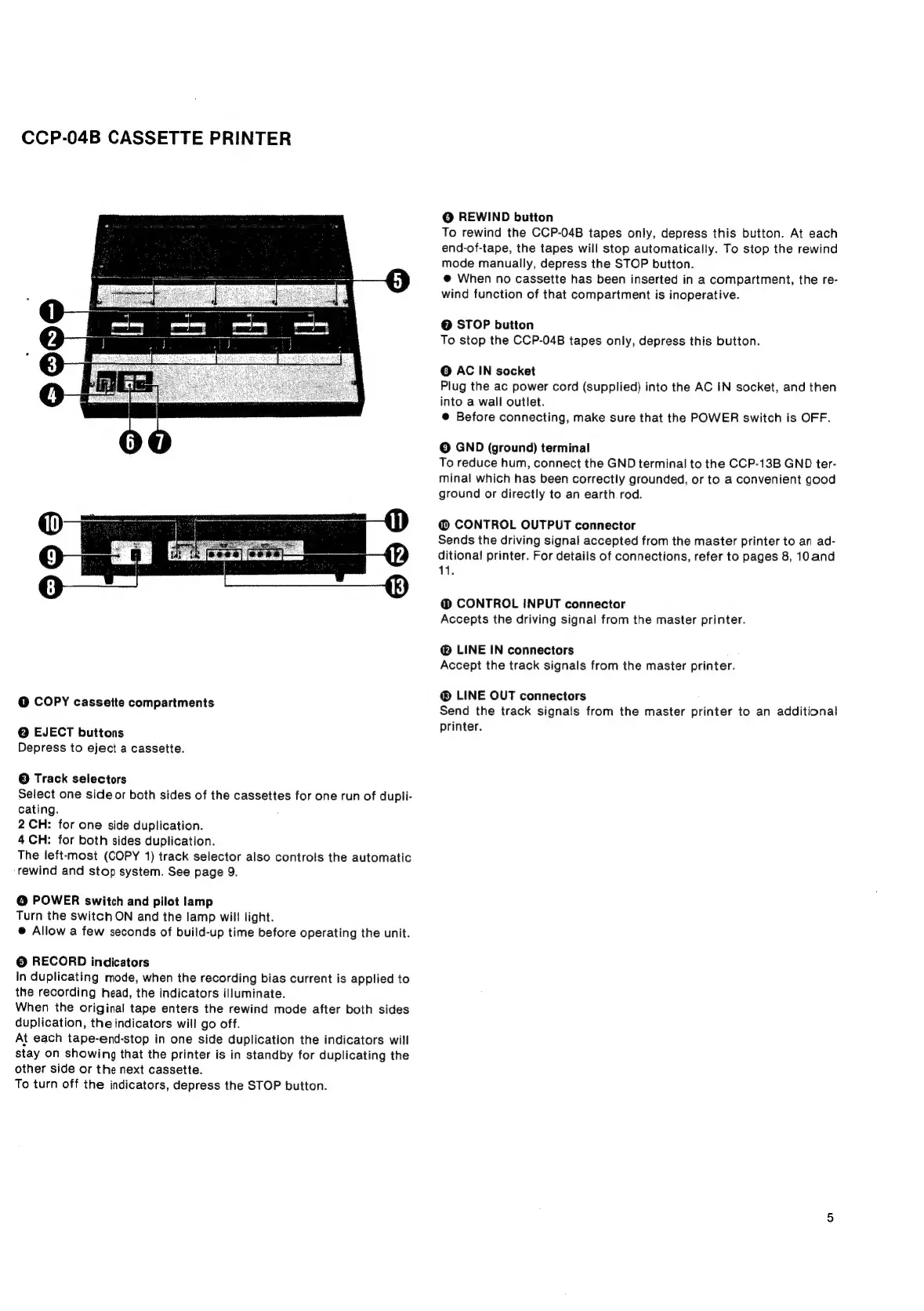

CCP-04B CASSETTE PRINTER
@ COPY cassette compartments
@ EJECT buttons
Depress to eject a cassette.
© Track selectors
Select one side or both sides of the cassettes for one run of dupli-
cating.
2 CH: for one side duplication.
4 CH: for both sides duplication.
The left-most (COPY 1) track selector also controls the automatic
rewind and stop system. See page 9.
@ POWER switch and pilot lamp
Turn the switch ON and the lamp will light.
@ Allow a few seconds of build-up time before operating the unit.
© RECORD indicators
In duplicating mode, when the recording bias current is applied to
the recording head, the indicators illuminate.
When the original tape enters the rewind mode after both sides
duplication, the indicators will go off.
At each tape-end-stop in one side duplication the indicators will
stay on showing that the printer is in standby for duplicating the
other side or the next cassette.
To turn off the indicators, depress the STOP button.
© REWIND button
To rewind the CCP-04B tapes only, depress this button. At each
end-of-tape, the tapes will stop automatically. To stop the rewind
mode manually, depress the STOP button.
@ When no cassette has been inserted in a compartment, the re-
wind function of that compartment is inoperative.
@ STOP button
To stop the CCP-04B tapes only, depress this button.
© AC IN socket
Plug the ac power cord (supplied) into the AC IN socket, and then
into a wall outlet.
@ Before connecting, make sure that the POWER switch is OFF.
© GND (ground) terminal
To reduce hum, connect the GND terminal to the CCP-13B GND ter-
minal which has been correctly grounded, or to a convenient good
ground or directly to an earth rod.
@ CONTROL OUTPUT connector
Sends the driving signal accepted from the master printer to an ad-
ditional! printer. For details of connections, refer to pages 8, 10 and
EBs
@ CONTROL INPUT connector
Accepts the driving signal from the master printer.
® LINE IN connectors
Accept the track signals from the master printer.
® LINE OUT connectors
Send the track signals from the master printer to an additional
printer.
