CDP-XE270/XE370

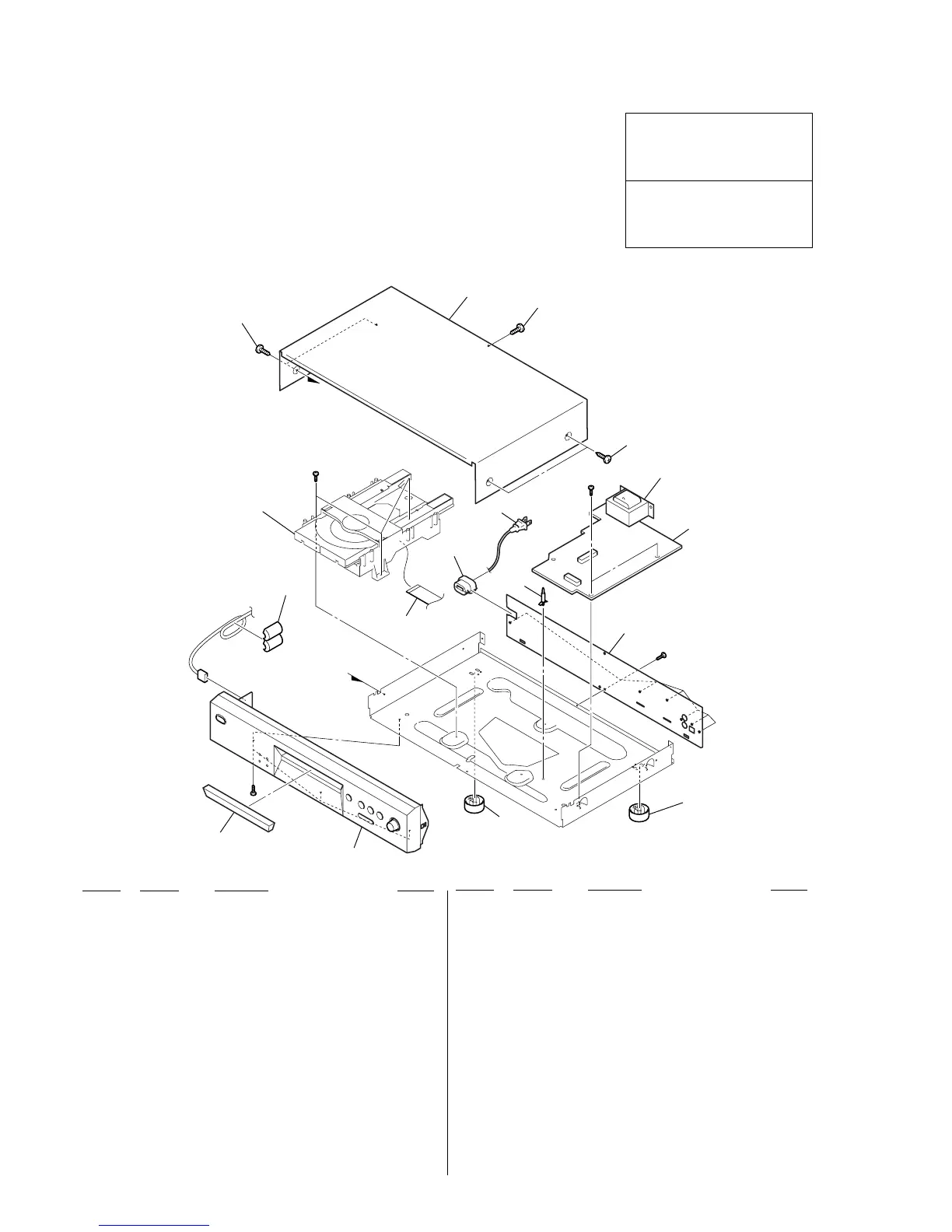

7-1. CASE SECTION
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories are given in the last of the elec-
trical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
•Abbreviation
AUS: Australian model
CND : Canadian model
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
8
8
8
10
11
2
1
2
6
7
3
4
5
9
#1
#1
#1
#1
front panel section
CDM66-5BD27
T601
1 4-232-141-12 PANEL, LOADING (BLACK)
1 4-232-141-32 PANEL, LOADING (SILVER)
(XE270: AEP, UK/XE370: AEP)
1 4-232-141-41 PANEL, LOADING (SILVER: Hair-line Finish)
(AEP, UK)
2 X-4953-448-1 FOOT ASSY
3 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
4 3-703-244-00 BUSHING (2104), CORD
* 5 4-954-051-51 HOLDER, PC BOARD
06 1-696-845-11 CORD, POWER (AUS)
06 1-777-071-43 CORD, POWER (AEP, UK, SP)
06 1-783-531-32 CORD, POWER (US, CND)
7 1-823-359-11 WIRE (FLAT TYPE) (21 CORE)
8 3-363-099-02 SCREW (CASE 3 TP2) (BLACK)
8 3-363-099-11 SCREW (CASE 3 TP2) (SILVER)
9 2-660-400-31 CASE (SILVER: for Hair-line Finish) (AEP, UK)
9 4-232-149-31 CASE (408226) (BLACK)
9 4-232-580-31 CASE (408226) (SILVER)
(XE270: AEP, UK/XE370: AEP)
10 A-4725-617-A MAIN BOARD, COMPLETE
11 4-232-151-02 PANEL, BACK (XE270: AEP)
11 4-232-151-12 PANEL, BACK (XE270: UK)
11 4-232-151-23 PANEL, BACK (XE270: US, CND)
11 4-232-151-31 PANEL, BACK (XE270: AUS)
11 4-232-151-63 PANEL, BACK (XE270: SP)
11 4-232-692-02 PANEL, BACK (XE370: AEP)
11 4-232-692-12 PANEL, BACK (XE370: UK)
11 4-232-692-23 PANEL, BACK (XE370: US)
11 4-232-692-31 PANEL, BACK (XE370: AUS)
11 4-232-692-63 PANEL, BACK (XE370: SP)
0 T601 1-437-257-11 TRANSFORMER, POWER (US, CND)
0 T601 1-437-258-12 TRANSFORMER, POWER (AEP, UK, SP, AUS)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
