Sony CDP-XE270 - Base Unit Section (BU-5 BD27)

29
CDP-XE270/XE370

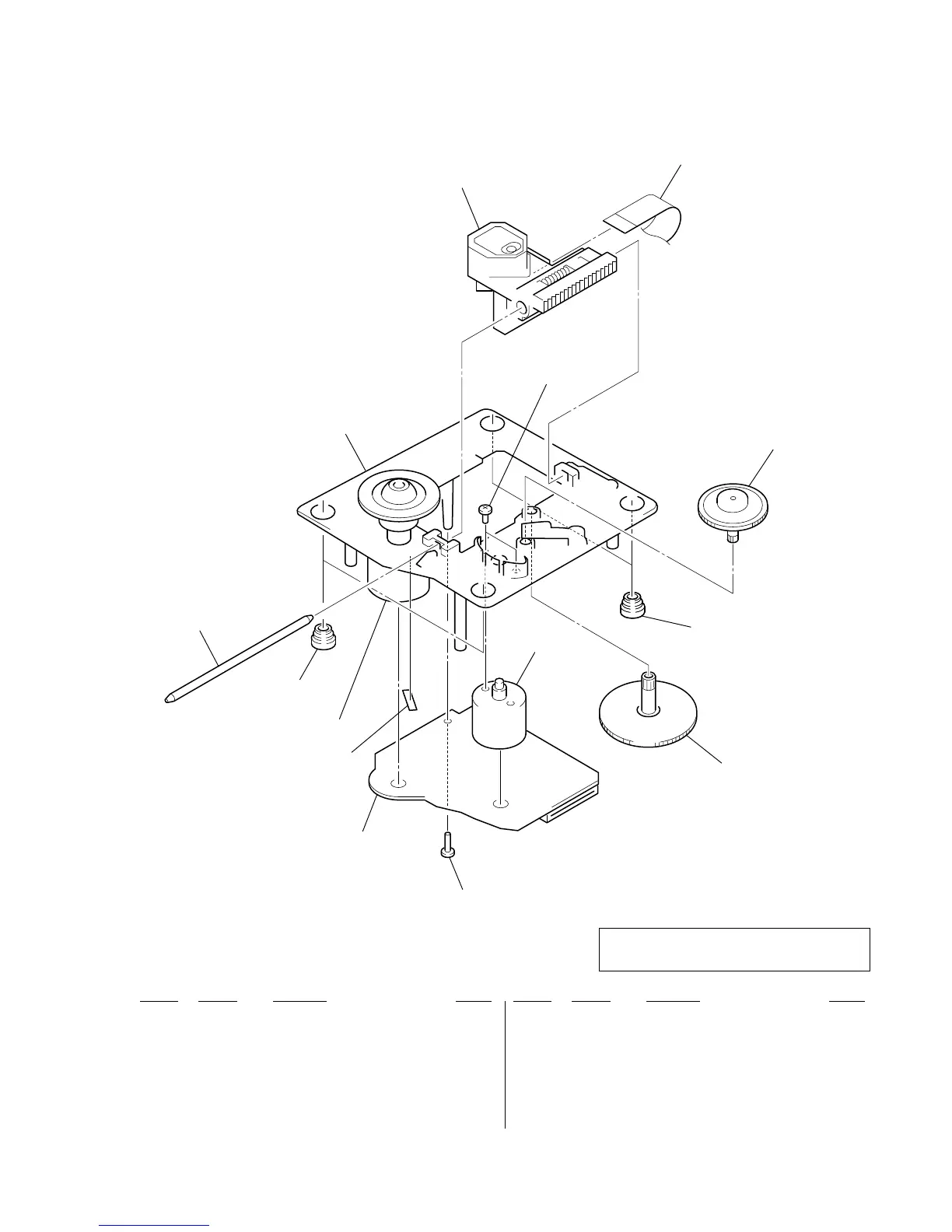

7-4. BASE UNIT SECTION
(BU-5BD27)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
551 3-087-053-01 +BVTP2.6 (3CR)
552 A-4725-568-A BD BOARD, COMPLETE (for PXR-104X)
552 A-4725-568-B BD BOARD, COMPLETE (for KSS-213C)
553 4-951-940-01 INSULATOR (BU)
554 4-917-565-01 SHAFT, SLED
0 555 1-796-033-12 OPTICAL PICK-UP (PXR-104X)
0 555 8-848-483-21 OPTICAL PICK-UP (KSS-213C/C2RP)
556 1-782-817-11 WIRE (FLAT TYPE) (16 CORE)
557 3-713-786-51 SCREW (M2X3)
558 4-917-567-01 GEAR (M)
559 4-917-564-01 GEAR (P), FLATNESS
560 X-4917-523-3 BASE (OUTSERT) ASSY
(including M101 (spindle))
M102 X-4917-504-1 MOTOR ASSY (SLED)
556
555
557
558
553
559
551
552
553
560
554
M102
not supplied
not supplied
(included in 560)
(including M101)
Note: When you exchange Ref. No. 552 or 555,
please be sure to refer to “Supplement-1”.
Ver. 1.4
