Sony CDP-XE270 - CD Mechanism Deck Section (CDM66-5 BD27)

28
CDP-XE270/XE370

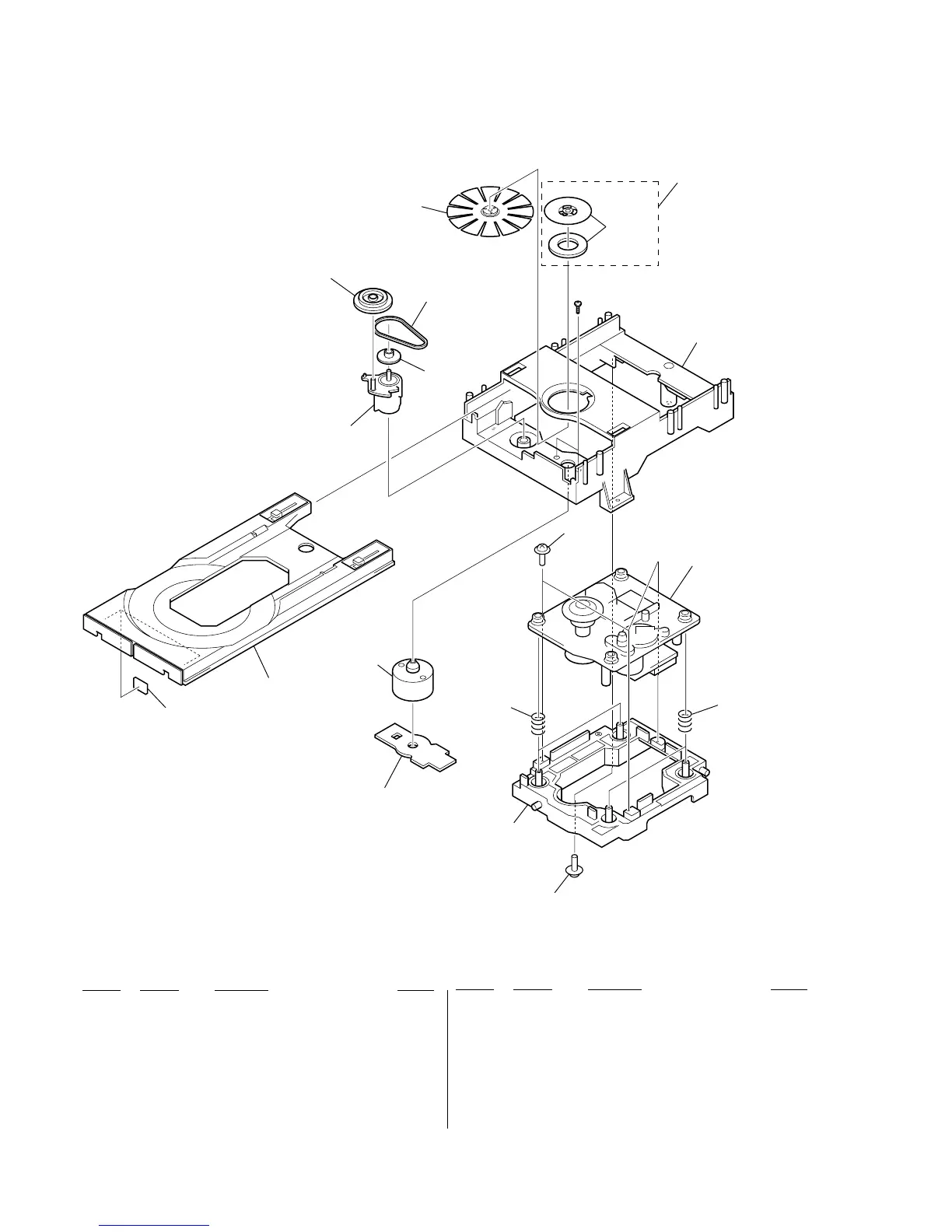

7-3. CD MECHANISM DECK SECTION
(CDM66-5BD27)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
501 4-231-530-05 TRAY (66)
502 4-232-682-01 CUSHION (66)
503 4-232-712-01 CAM (66)
504 4-232-710-01 PULLEY (LD)
505 4-232-713-01 BELT (LD)
506 4-232-711-01 GEAR (LD)
507 4-993-142-21 PULLEY (L), PRESS
508 1-452-925-21 MAGNET ASSY
509 4-231-529-05 CHASSIS (66)
510 4-227-899-31 SCREW (DIA. 12), FROATING
513 1-645-721-11 LOADING BOARD
514 4-959-996-01 SPRING (932), COMPRESSION
515 4-231-531-01 HOLDER (66)
M151 A-4604-363-A MOTOR (L) ASSY (LOADING)
#2 7-621-775-10 SCREW +B 2.6X4
510
515
514
513
514
510
M151
#2
BU-5BD27
not
supplied
501
503
506
508
507
505
509
504
502
