CDP-XE270/XE370
44
CDP-XE270/XE370
TP
(RFDC)
(Refer to
page 17 on
service manual)
∗ R135,136
10k (FOR KSS-213C)
22k (FOR PXR-104X)
∗
∗
∗
∗
120k (FOR PXR-104X)
180k (FOR KSS-213C)
∗ R145
5.6k (FOR PXR-104X)
7.5k (FOR KSS-213C)
∗ R141
27k (FOR KSS-213C)
39k (FOR PXR-104X)

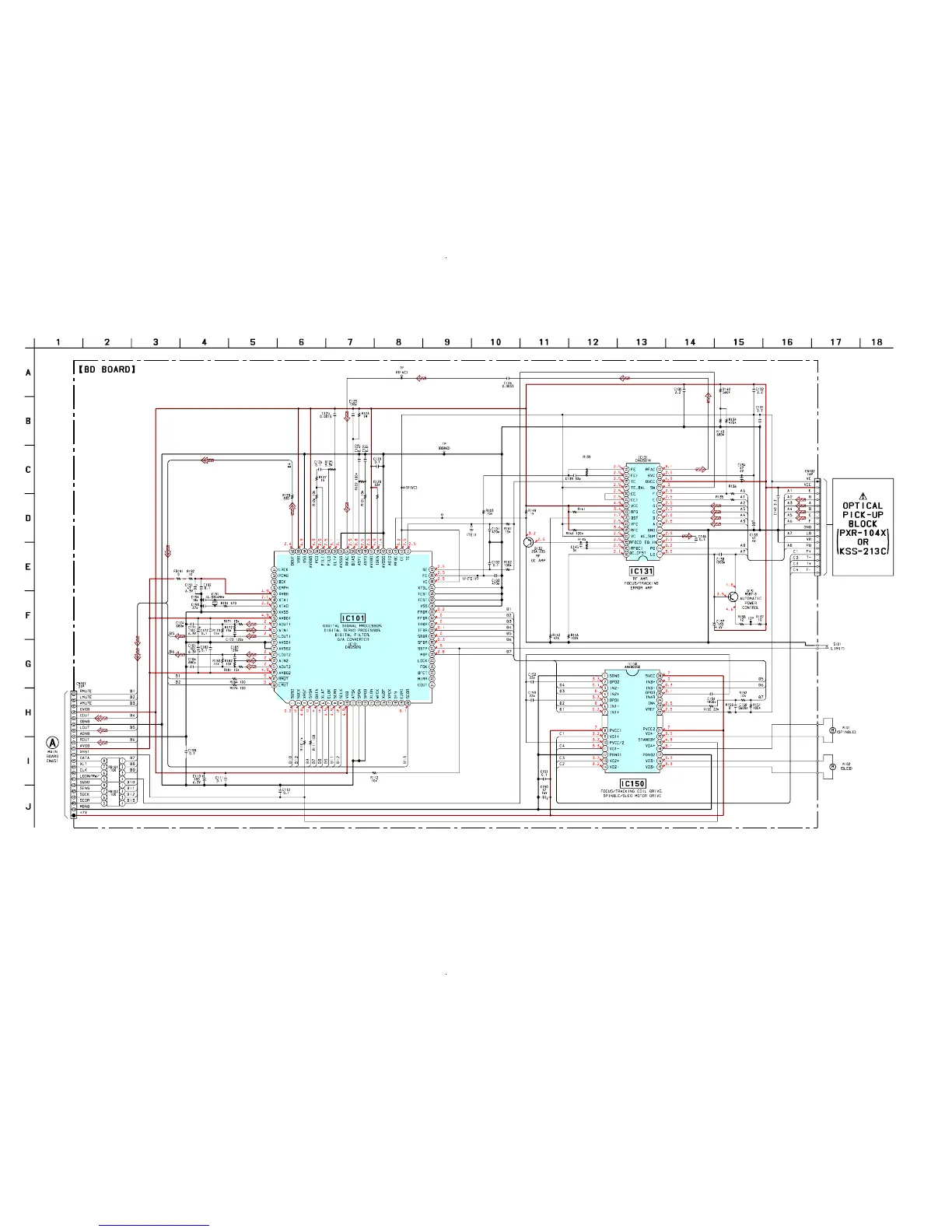

2-2. SCHEMATIC DIAGRAM – BD Board –
