CDX-1150
– 23 – – 24 –
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
•
¢
: internal component.
• U : B+ Line.

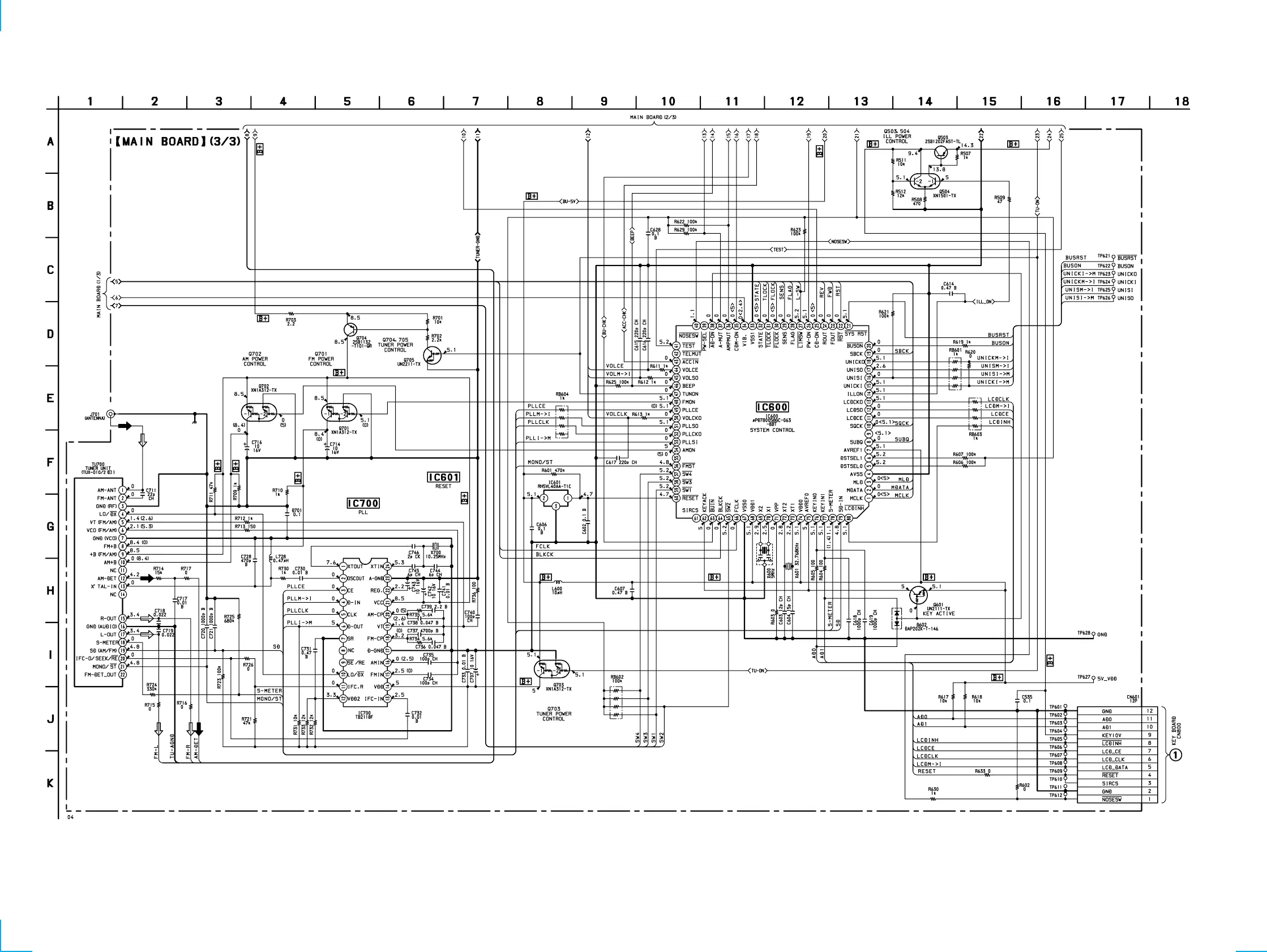

3-6. SCHEMATIC DIAGRAM — MAIN SECTION (3/3) — • Refer to page 30 for IC Block Diagrams.
• Power voltage is dc 14.4V and fed with regulated dc power
supply from ACC and BATT cords.
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
(): AM
< > : CD PLAY
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Signal path.
F : FM
f : AM
(Page 20)
(Page 21)
(Page 25)
