Sony CDX-1150 - CD Mechanism Section (2)

– 34 –
M101
not supplied
M102
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
not supplied
not supplied
170
169

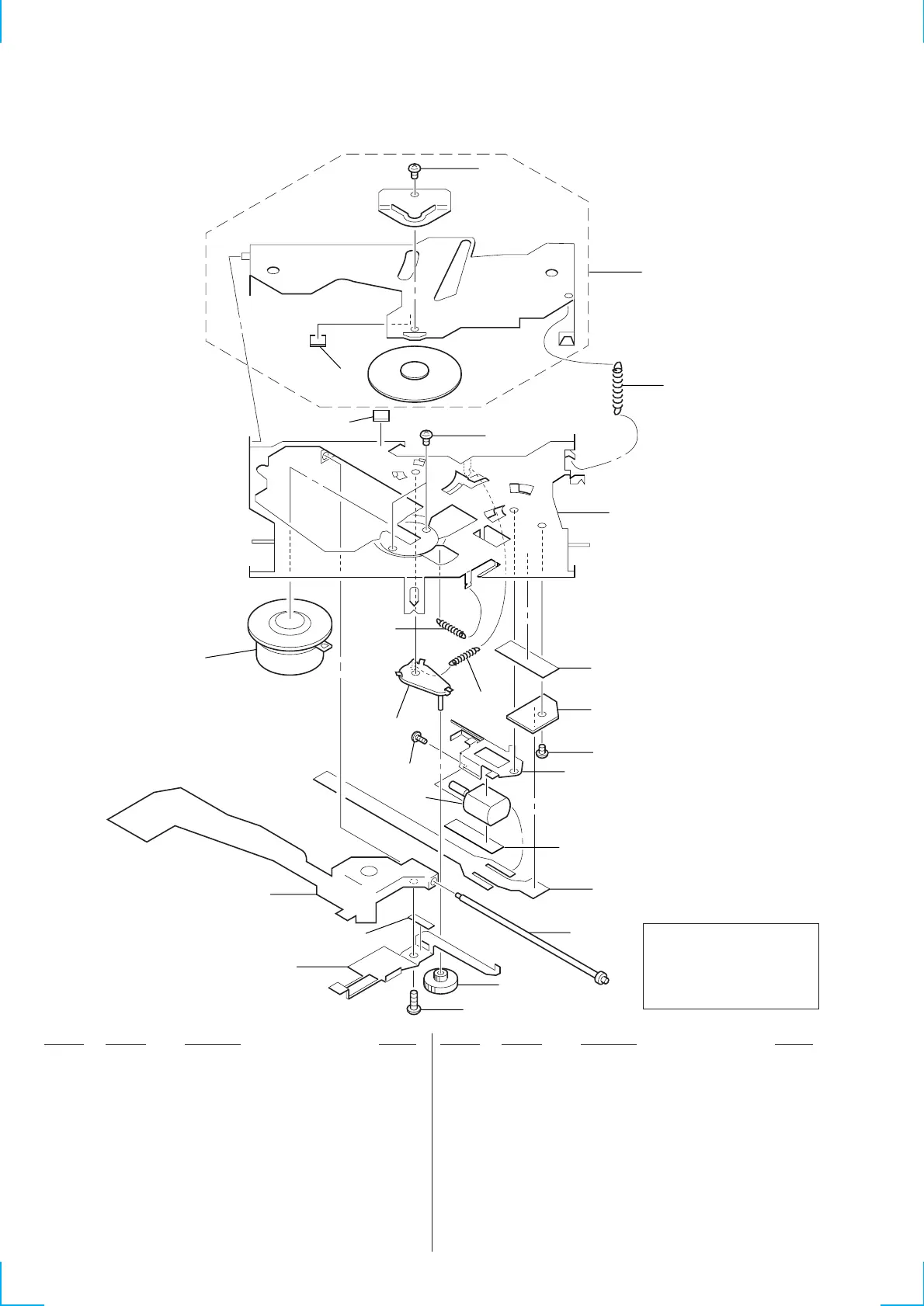

4-4. CD MECHANISM SECTION (2)
(MG-310-153)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark ! or dotted line with mark.
! are critical for safety.
Replace only with part number
specified.
151 A-3301-693-A ARM ASSY, CHUCKING
152 3-033-805-01 SCREW (M2X2.0)
* 153 3-027-473-01 CUSHION (EJ2)
154 3-032-353-01 SPRING (CH), TENSION
155 3-033-803-01 SCREW (M1.7X2.5)
* 156 X-3376-720-1 CHASSIS (OP) ASSY
157 3-032-373-01 SPRING (SPM), TENSION
* 158 X-3376-724-1 LEVER (WORM WHEEL) ASSY
159 3-032-355-01 SPRING (LEVER D), TENSION
* 160 1-670-828-11 MOTOR BOARD
161 3-033-807-01 SCREW (M2X3.0)
162 3-032-341-01 BRACKET (SL MOTOR)
! 163 1-251-809-21 PICK-UP, OPTICAL
164 3-032-345-01 RACK (FEED)
165 3-033-804-01 SCREW (+PTP 1.7X4)
166 3-032-358-01 SHAFT (SLED GUIDE)
167 3-032-344-01 GEAR (WORM WHEEL)
168 1-673-761-11 MOTOR FLEXIBLE BOARD
169 3-366-892-01 SCREW (M1.4)
* 170 3-037-490-01 CUSHION (DH)
M101 A-3301-696-A MOTOR ASSY, SPINDLE (SPINDLE)
M102 X-3377-704-1 MOTOR ASSY, SLED (SLED)
