Sony CDX-1150 - CD Mechanism Section (1)

– 33 –
a
b
c
a
c
b
101
111
112
114
113
102
103
103
103
104
104
104
106
107
107
107
108
118
108
109
109
110
105
114
115
116
116
117
M103

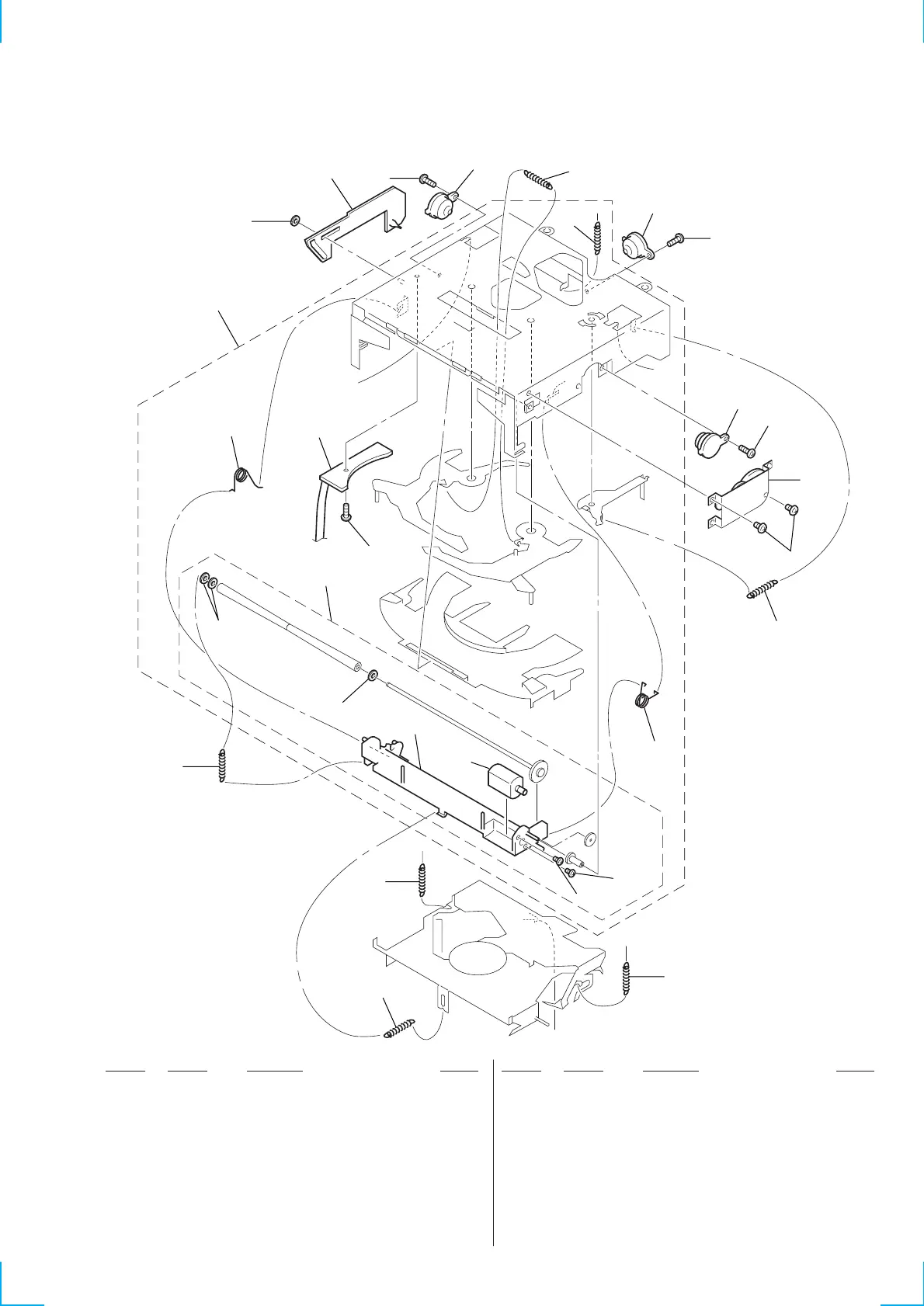

4-3. CD MECHANISM SECTION (1)
(MG-310-153)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-342-940-01 WASHER (M)
* 102 3-032-327-01 LEVER (LE.L)
103 3-037-492-01 DAMPER (P)
104 3-033-808-01 SCREW (M2X4.0)
105 3-032-356-01 SPRING (LEVER DLR), TENSION
106 A-3301-691-A CHASSIS (R) BLOCK ASSY
107 3-033-806-01 SCREW (M2X2.5)
108 3-032-355-01 SPRING (LEVER D), TENSION
109 3-032-351-01 SPRING (FL), TENSION
110 3-032-352-01 SPRING (ANGLE), TENSION
111 A-3301-687-A CHASSIS (M) BLOCK ASSY
* 112 1-670-827-11 SW BOARD
113 3-033-807-01 SCREW (M2X3.0)
114 3-032-359-01 SPRING (ROLLER)
115 X-3376-721-1 ARM (ROLLER) ASSY
* 116 3-322-413-01 SPACER, INSULATING
117 A-3301-689-A ARM ASSY, ROLLER
118 3-032-373-01 SPRING (SPM), TENSION
M103 A-3301-690-A MOTOR ASSY, LOADING (LOADING)
