Sony CDX-1150 - Page 32

– 40 –
Sony Corporation
Personal & Mobile Communication Company
9-926-489-11
CDX-1150
99B0419-1
Printed in Japan C1999. 2
Published by Quality Assurance Dept.
Ref. No. Part No. Description Remark
202201
204
203
205 206
SW3 1-762-947-12 SWITCH, PUSH (1 KEY) (DISC IN 2)
SW4 1-762-947-12 SWITCH, PUSH (1 KEY) (CHUCKING DET)
*************************************************************
MISCELLANEOUS
***************
10 1-776-207-31 CORD (WITH CONNECTOR) (POWER)
! 163 1-251-809-21 PICK-UP, OPTICAL
168 1-673-761-11 MOTOR FLEXIBLE BOARD
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
M101 A-3301-696-A MOTOR ASSY, SPINDLE (SPINDLE)
M102 X-3377-704-1 MOTOR ASSY, SLED (SLED)
M103 A-3301-690-A MOTOR ASSY, LOADING (LOADING)
*************************************************************
ACCESSORIES & PACKING MATERIALS
********************************
3-866-373-11 MANUAL, INSTRUCTION (ENGLISH)
3-866-374-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH)
*************************************************************
PARTS FOR INSTALLATION AND CONNECTIONS
***************************************

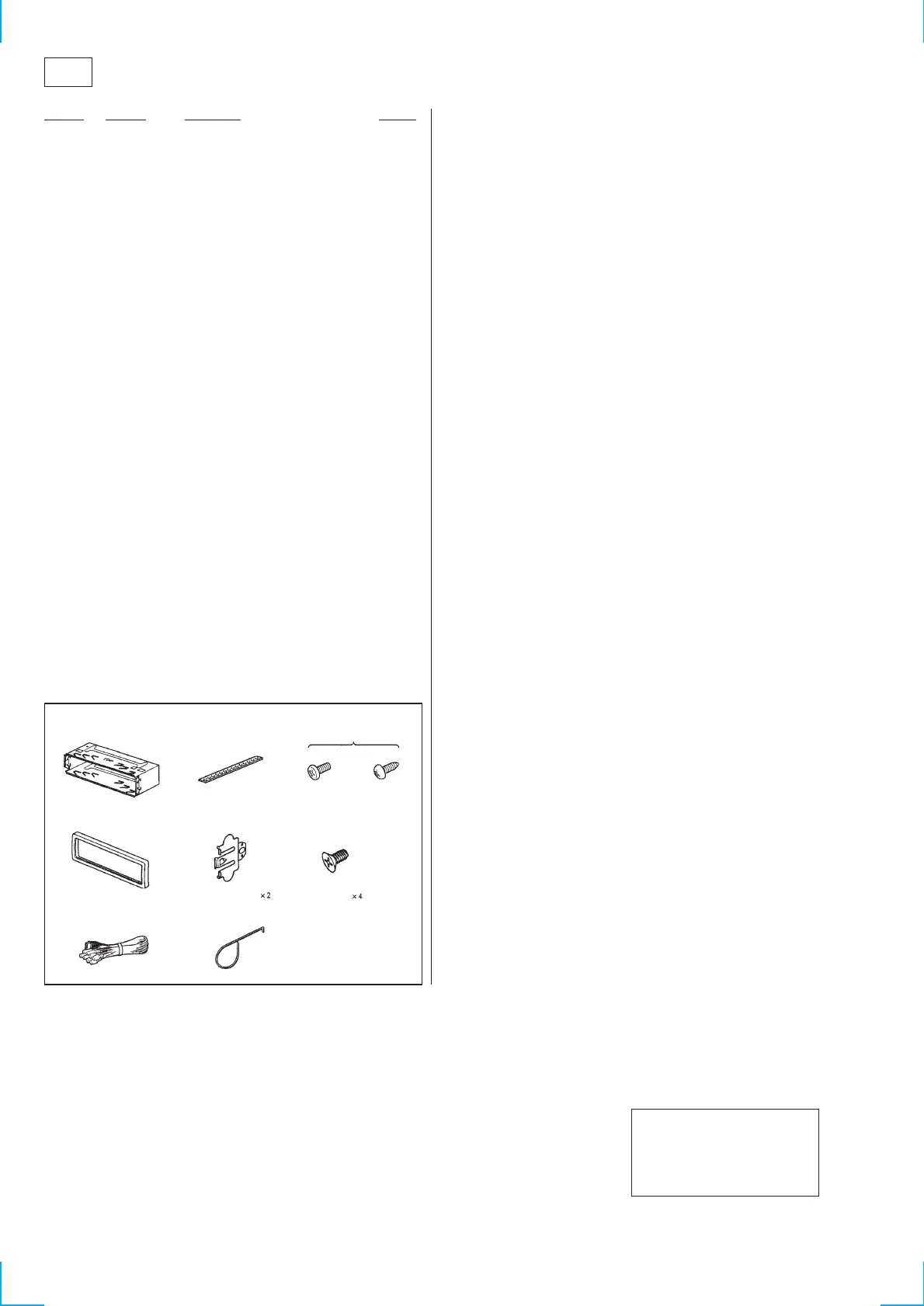

201 3-009-613-21 FRAME
202 3-924-961-01 SUPPORT (ND), FITTING
203 X-3368-725-1 SCREW ASSY, FITTING
204 3-034-435-01 COLLAR
205 3-027-138-01 SPRING, FITTING
206 3-934-325-01 SCREW, +K (5X8) TAPPING
207 1-776-207-31 CORD (WITH CONNECTOR) (POWER)
208 3-702-658-01 TOOL (REMOVE)
The components identified by
mark ! or dotted line with mark.
! are critical for safety.
Replace only with part number
specified.
