46
CFD-CD777SMK2

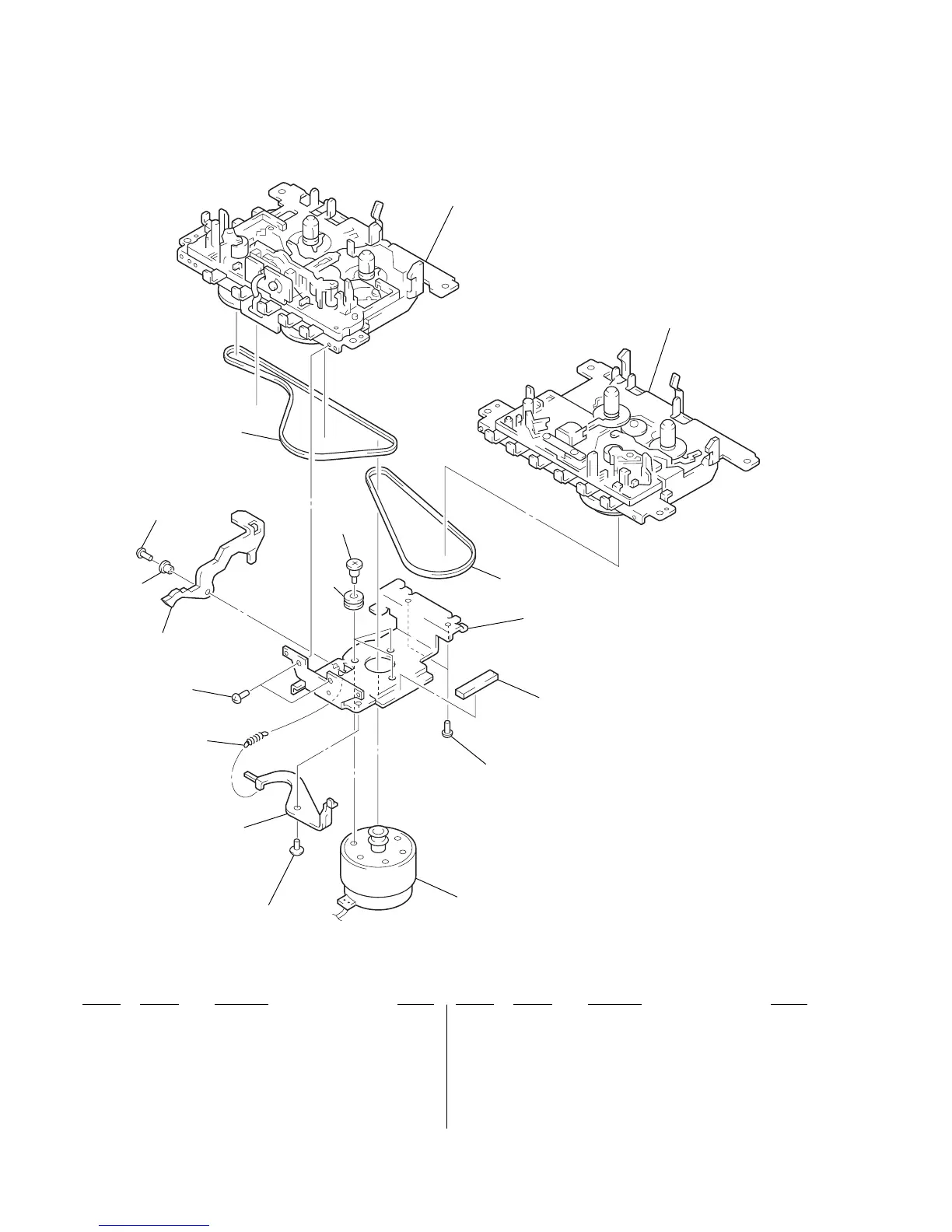

7-6. TAPE MECHANISM DECK SECTION-2
(MF-CD777)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 3-915-826-01 SCREW (A), PK COLLAR
* 302 3-920-465-01 LEVER, P KICK
303 3-920-466-01 SPRING, P KICK LEVER
304 3-915-809-01 SCREW (M2X4), C TIGHT
305 3-920-467-01 LEVER (B), P KICK
306 3-915-827-01 COLLAR (B)
307 3-920-341-01 SCREW (M2X6), C TIGHT
308 3-920-455-01 BELT, M
309 3-920-403-01 BELT, MAIN
310 3-920-402-01 SCREW, MOTOR COLLAR
311 3-920-401-01 RUBBER, MOTOR
312 3-920-469-01 MAT, VIBRATION PROOF
M601 X-3369-757-1 MOTOR ASSY (REEL/CAPSTAN)
tape mechanism deck section
(deck A)-1
tape mechanism deck section
(deck B)-1
309
not supplied
312
304
M601
301
302
303
304
305
306
307
308
311
310
