Sony CFD-CD777SMK2 - (Mf-Cd777); Tape Mechanism Deck Section (Deck

51
CFD-CD777SMK2

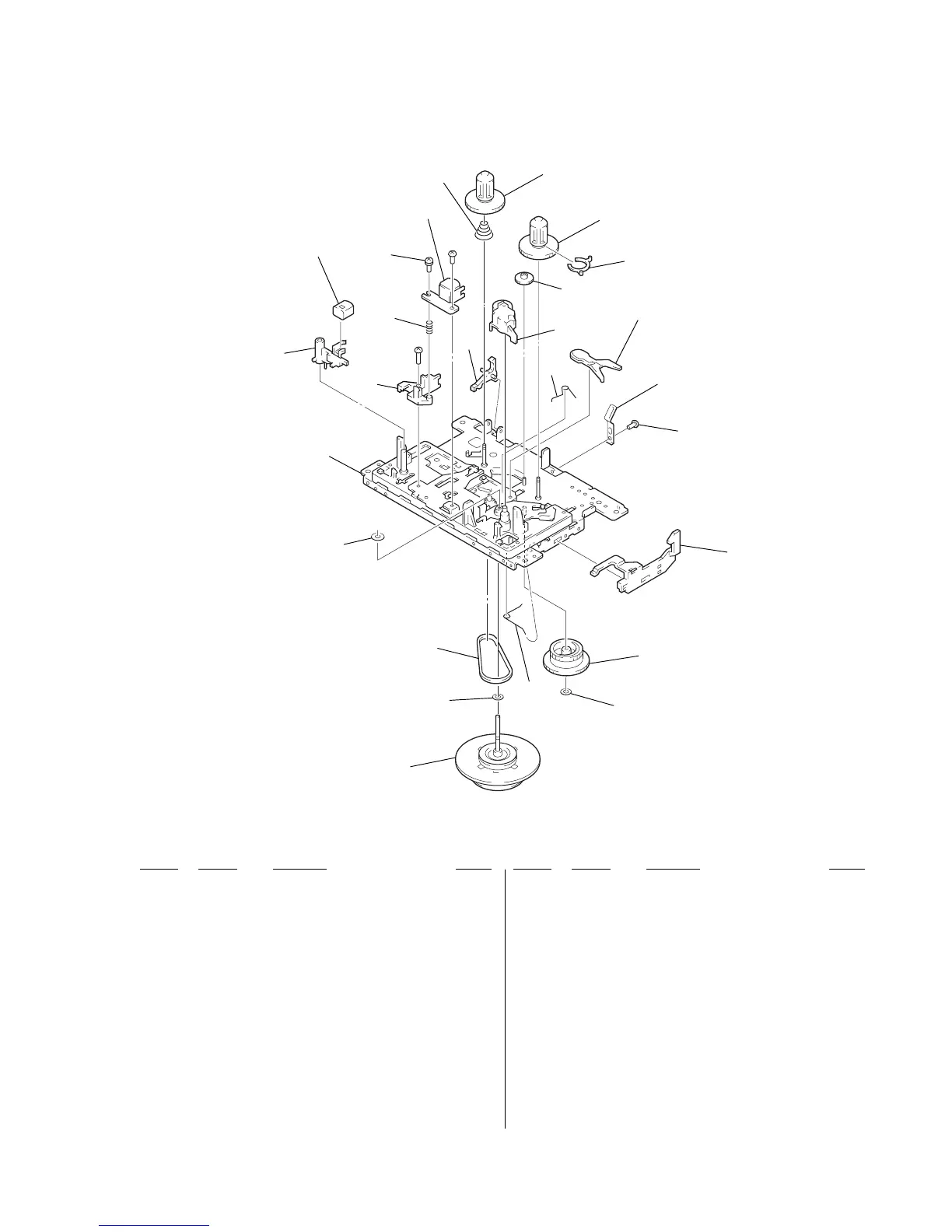

7-11. TAPE MECHANISM DECK SECTION (DECK B)-1
(MF-CD777)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
551 3-915-788-01 FLYWHEEL ASSY
552 3-920-350-01 WASHER
553 3-596-931-01 BELT, RF
554 3-920-346-01 WASHER
555 3-915-777-01 BASE, HEAD
556 3-915-782-01 ARM, MG
557 3-920-395-01 SPRING, AZIMUTH
558 3-920-351-01 SCREW (M2X7)
559 3-920-399-01 GEAR, BACK TENSION
560 3-915-795-01 REEL ASSY, SUPPLY
561 3-915-796-01 REEL ASSY, TAKE-UP
562 3-915-797-01 SENSOR
563 3-348-357-01 GEAR, FF
564 3-913-438-01 ARM ASSY, PINCH ROLLER
* 565 3-915-806-01 LEVER, REC SAFETY
566 3-915-781-01 SPRING, M CONTROL
567 3-913-439-01 LEVER, SENSING
568 3-920-406-01 SPRING, PACK
569 3-915-808-01 SCREW (M2X3), C TIGHT
* 570 3-920-404-01 LEVER, EJECT SLIDE
571 3-915-792-01 GEAR, CAM
572 3-920-348-01 WASHER
573 3-915-758-01 SPRING, E ACTUATOR
HE601 1-500-139-11 HEAD, E (PH-K380-MS1-6A)
(ERASSE) (DECK B)
HRP601 1-500-138-11 HEAD, R/P (MS15R-AA2N1)
(REC/PB) (DECK B)
#9 7-621-255-45 SCREW +P 2X6
#10 7-621-772-08 SCREW +B 2X3
558
559
551
552
553
554
556
555
557
560
561
562
567
568
566
564
565
563
569
570
571
572
573
#10
#9
HE601
HRP601
tape mechanism
deck section
(deck B)-2
