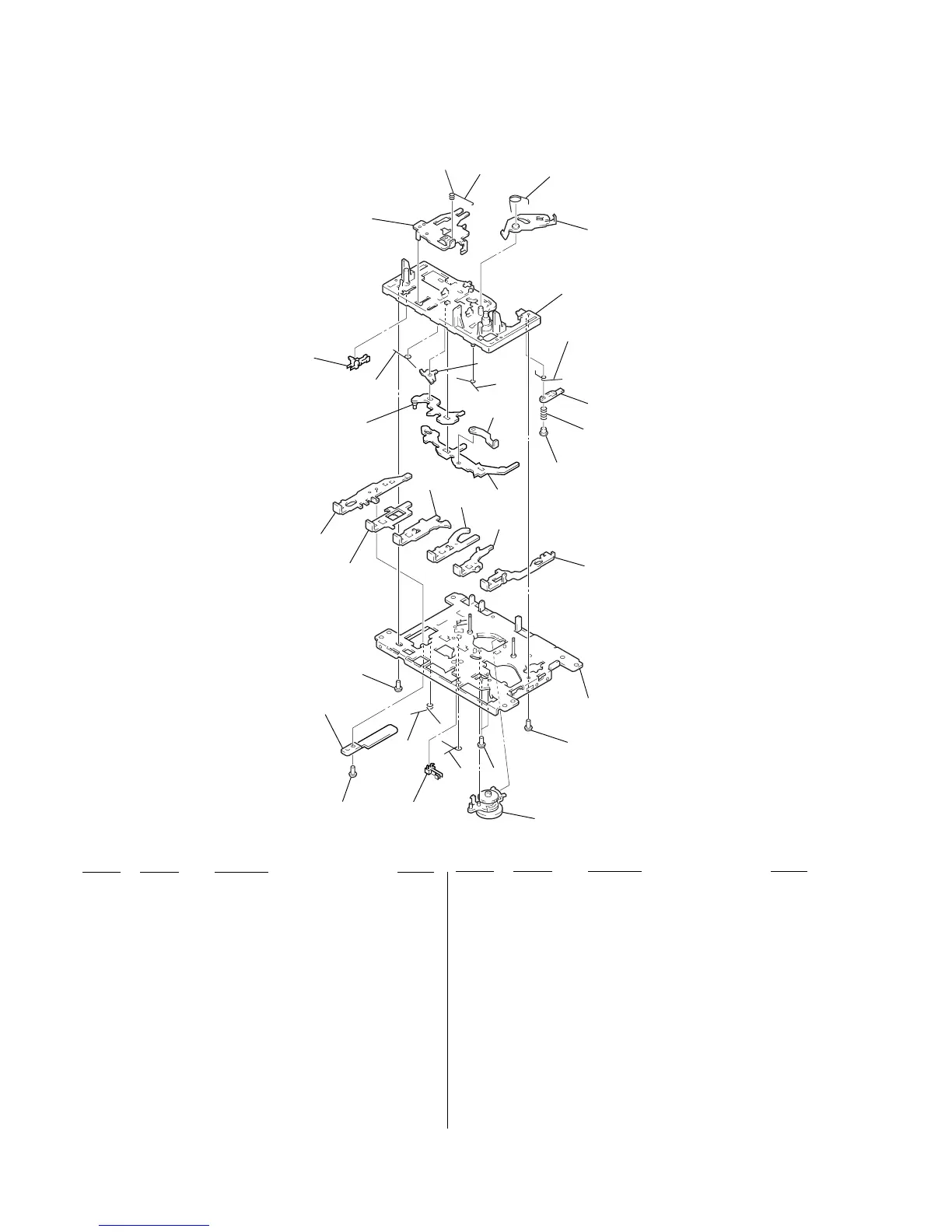

7-12. TAPE MECHANISM DECK SECTION (DECK B)-2
(MF-CD777)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
601 3-915-808-01 SCREW (M2X3), C TIGHT
* 602 3-920-394-01 BRACKET ASSY, REC
603 3-915-810-01 SCREW (M2X5), P TIGHT BIND
* 604 3-915-744-01 LEVER, PLAY BUTTON
* 605 3-915-743-01 LEVER, REC BUTTON
606 3-915-756-01 SPRING (A), BUTTON LEVER
607 3-915-776-01 PANEL, HEAD
608 3-920-396-01 SPRING, PANEL (P)
609 3-348-351-01 SPRING, GEAR PLATE
610 3-915-791-01 PLATE ASSY, GEAR
611 3-915-740-01 BASE ASSY (A)
* 612 3-915-772-01 STOPPER, PR
613 3-915-774-01 SPRING (B), BUTTON LEVER
614 3-915-752-01 SPRING, P CONTROL
* 615 3-920-393-01 LEVER, PAUSE
616 3-915-754-01 SPRING, PAUSE LEVER
617 3-915-755-01 STOPPER, PAUSE
* 618 3-915-760-01 LEVER, E KICK
* 619 3-915-742-01 PLATE, FUNCTION, PUSH BUTTON
* 620 3-915-745-01 LEVER, REW BUTTON
* 621 3-915-749-01 LEVER, FF BUTTON
* 622 3-915-750-01 LEVER, STOP BUTTON
* 623 3-915-751-01 LEVER, PAUSE BUTTON
* 624 3-915-757-01 CHASSIS ASSY
625 3-920-397-01 CLUTCH ASSY, RF
626 3-915-811-01 SCREW (M2X4.5), CAMERA TAPPING
627 3-915-773-01 SPRING, REC BUTTON LEVER
628 3-915-759-01 SPRING, PS LEVER
S601 1-762-819-11 SWITCH, LEAF (B PLAY)
S603 1-762-022-11 SWITCH, LEAF (MSW-1541T) (B REW/FF)
