CFD-CD777SMK2
3-5. CD BLOCK SECTION

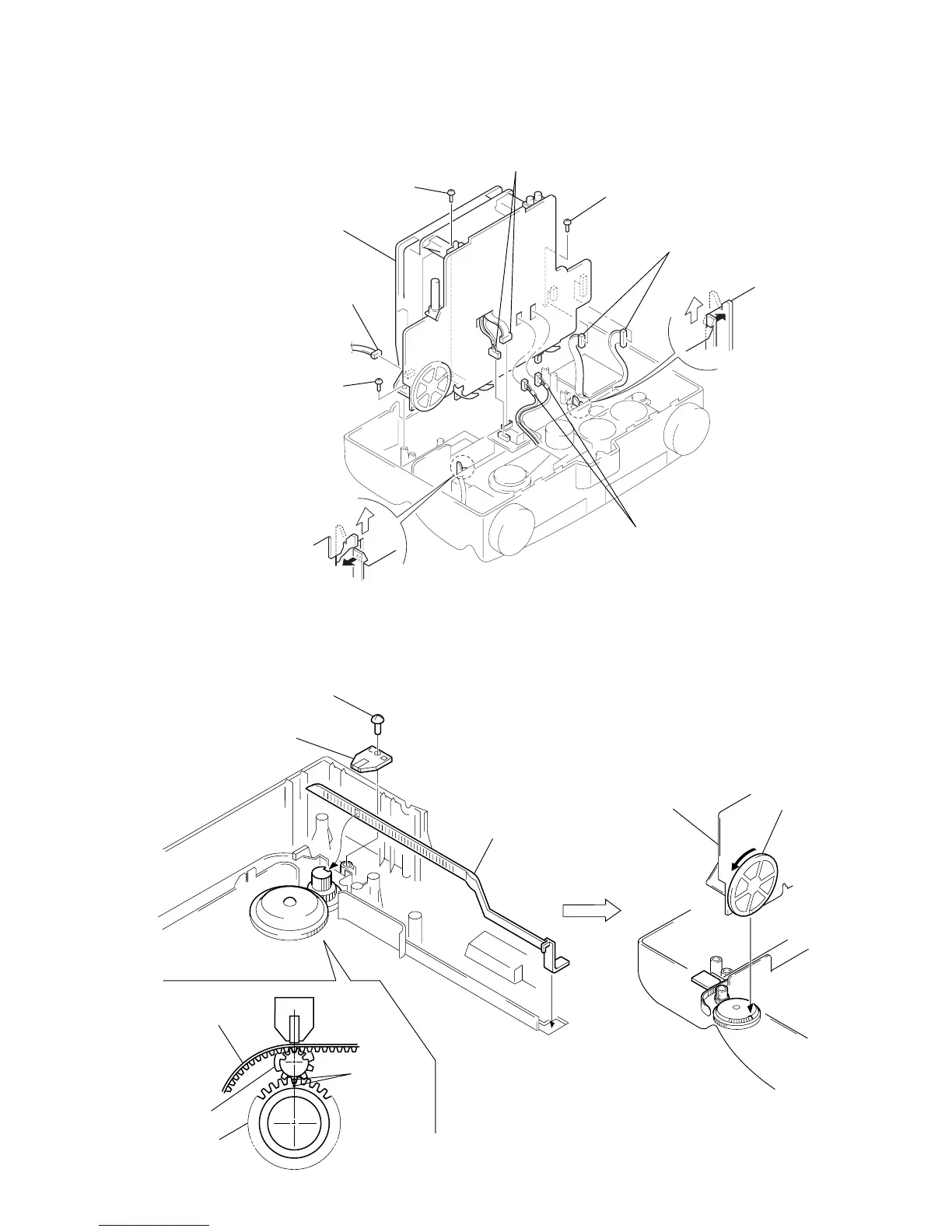

DIAL POINTER SETTING
Note: Follow the assembly procedure in the numerical order given.
2 screw
(BVTP3 × 10)
2 screw
(BVTP3
× 10)
2 screw
(BVTP3 × 10)
3 claw
3 cla
w
1 connector
(CNP1)
1 two connectors
(CNP301, 302)
1 two connectors
(CNP304, 308)
1 two connectors
(CNP303, 312)
4 CD block section
4 Rotate the tuning
capacitor gear full
y
in direction of the
arrow.
5 Set the
main board.
1 Set two gears and
pointer in the figure.
pointer
pointer
point
tuning gear
idle gear
3 screw
(BVTP3
× 10)
2 stopper
