53
CFD-CD777SMK2

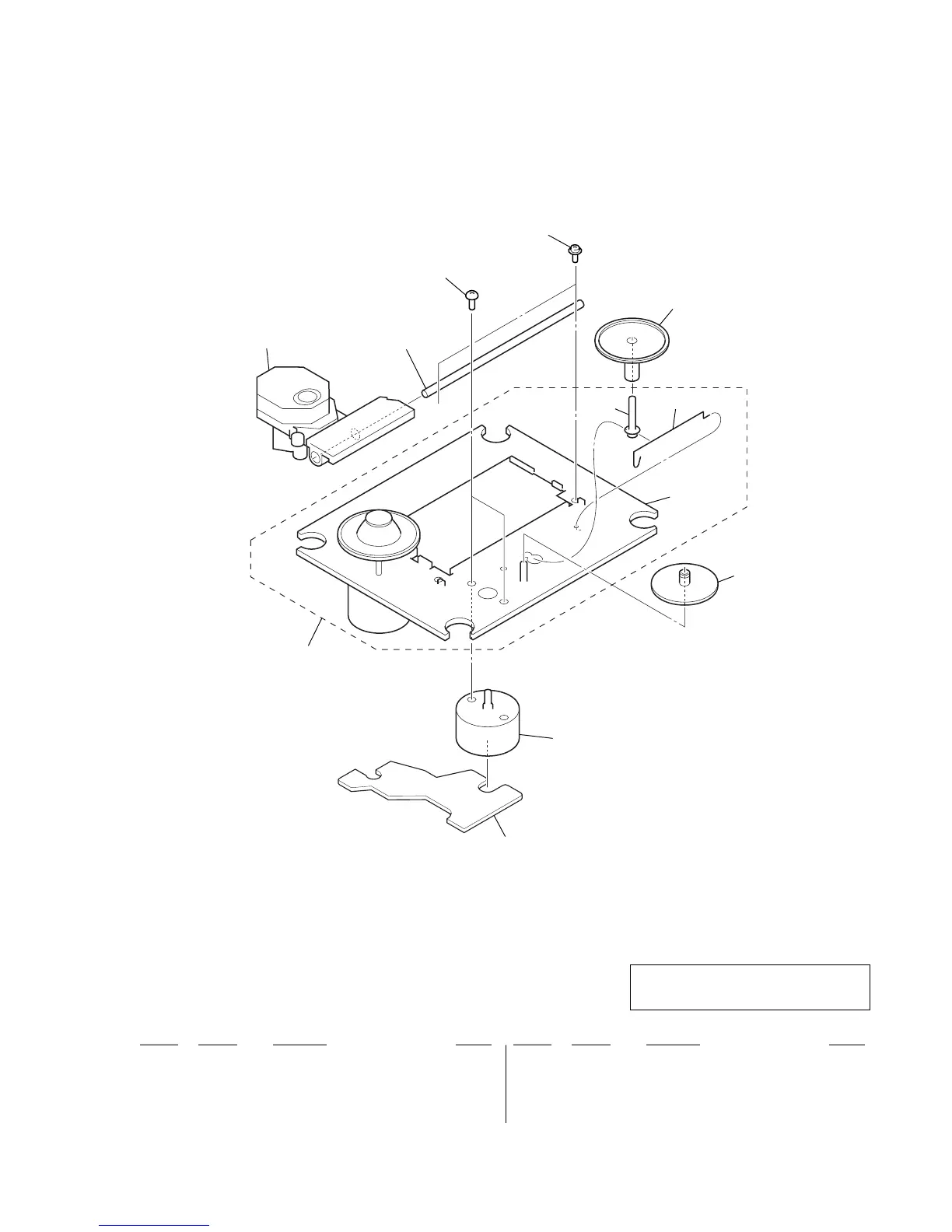

7-13. OPTICAL PICK-UP SECTION
(KSM-213RDM)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
0651 8-820-161-02 OPTICAL PICK-UP (KSS-213R/C2RP)
652 2-626-908-01 SHAFT, SLED
653 2-169-388-01 TAPPING (M2), +PWB
* 654 2-169-065-01 GEAR (A)
* 655 2-169-384-01 SHAFT (S), GEAR
* 656 2-169-385-01 SPRING, SLED
* 657 2-647-408-02 GEAR (B)
658 2-174-500-01 SCREW (2X3)
M901 X-2162-704-2 CHASSIS ASSY (R) (RP), MOTOR (SPINDLE)
M902 X-2162-712-2 GEAR ASSY (R) (RP), MOTOR (SLED)
651 652
653
654
655 656
657
658
M901
M902
not supplied
not
supplied
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
