3
CFD-CD777SMK2

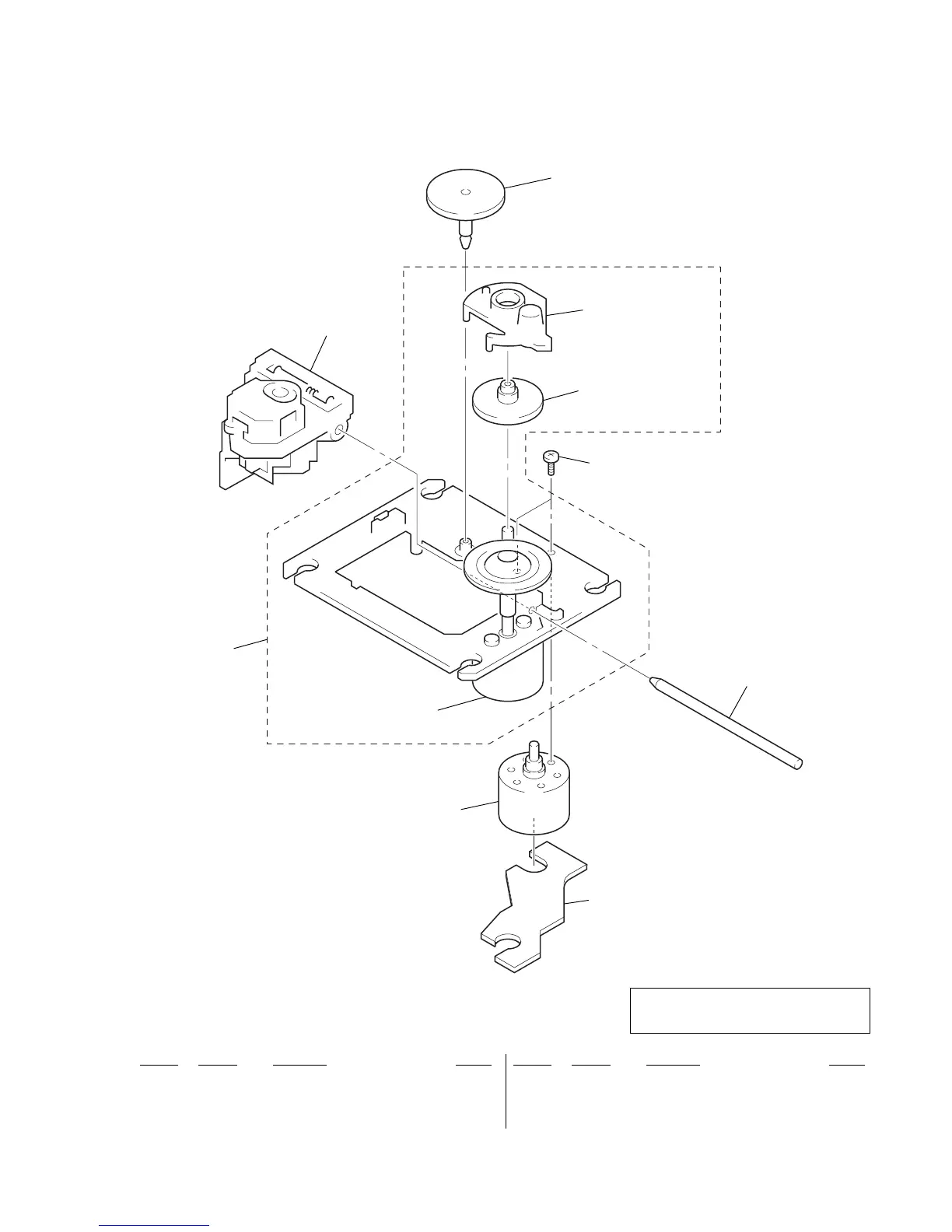

• EXPLODED VIEW
OPTICAL PICK-UP SECTION (KSM-213CDM)
not supplied
M902
not supplied
(M901 (SPINDLE))
not supplied
(MOTOR board)
803
801
802
806
804
805
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
0801 8-848-483-12 OPTICAL PICK-UP (KSS-213C/C2RP1)
802 2-174-500-01 SCREW (2X3)
803 2-626-908-01 SHAFT, SLED
804 2-627-003-01 GEAR (B) (RP)
805 X-2626-202-1 CHASSIS ASSY (MB) (RP), MOTOR
(including M901 (SPINDLE))
806 2-626-907-11 GEAR (A)
M902 X-2625-769-1 GEAR ASSY (MB) (RP), MOTOR (SLED)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
