Sony CFD-V27 - Rear Cabinet Section Exploded View

— 39 —
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

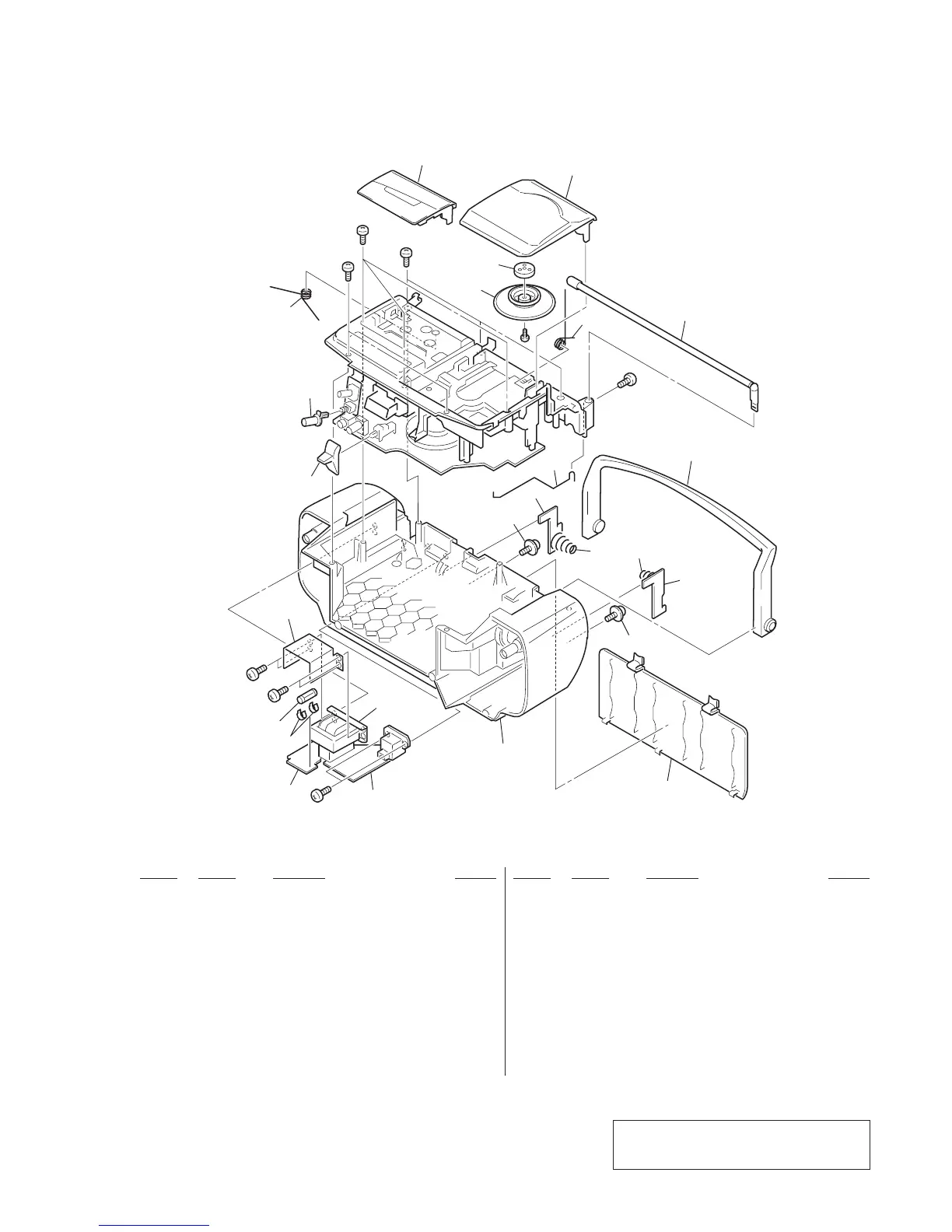

7-2. REAR CABINET SECTION
* 51 1-672-300-11 INLET BOARD
* 52 1-672-301-11 POWER BOARD
53 1-533-233-31 HOLDER, FUSE
54 3-031-570-11 KNOB (FUNCTION)
55 3-031-550-01 BUTTON (MEGA BASS)
56 3-031-561-01 SPRING, CASSETTE UP
57 X-3376-881-1 HOLDER ASSY, CASSETTE
58 3-031-538-11 LID (CD)
59 1-452-899-11 MAGNET
60 3-019-395-01 PLATE, CHUCKING
61 3-031-562-01 SPRING (CD)
62 3-031-564-01 TERMINAL (ANT)
63 3-031-540-11 HANDLE
* 64 1-672-302-11 BATTERY BOARD
65 3-028-154-01 TERMINAL (–), BATT
66 4-960-167-01 SCREW (3 × 8)(DIA. 10), +WH
* 67 1-672-358-11 HALF BATTERY BOARD
68 3-926-244-51 LID, BATTERY CASE
69 3-031-536-81 CABINET (REAR)
ANT1 1-501-883-21 ANTENNA, TELESCOPIC
! F902 1-532-286-11 FUSE, TIME LAG (2.5A/250V)
! T901 1-433-578-11 TRANSFORMER, POWER
57
58
59
60
61
56
55
54
66
64
62
63
65
67
66
65
68
69
51
52
53
T901
not supplied
#2
#2
F902
#5
ANT1
#4
#3
#3
#2
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
