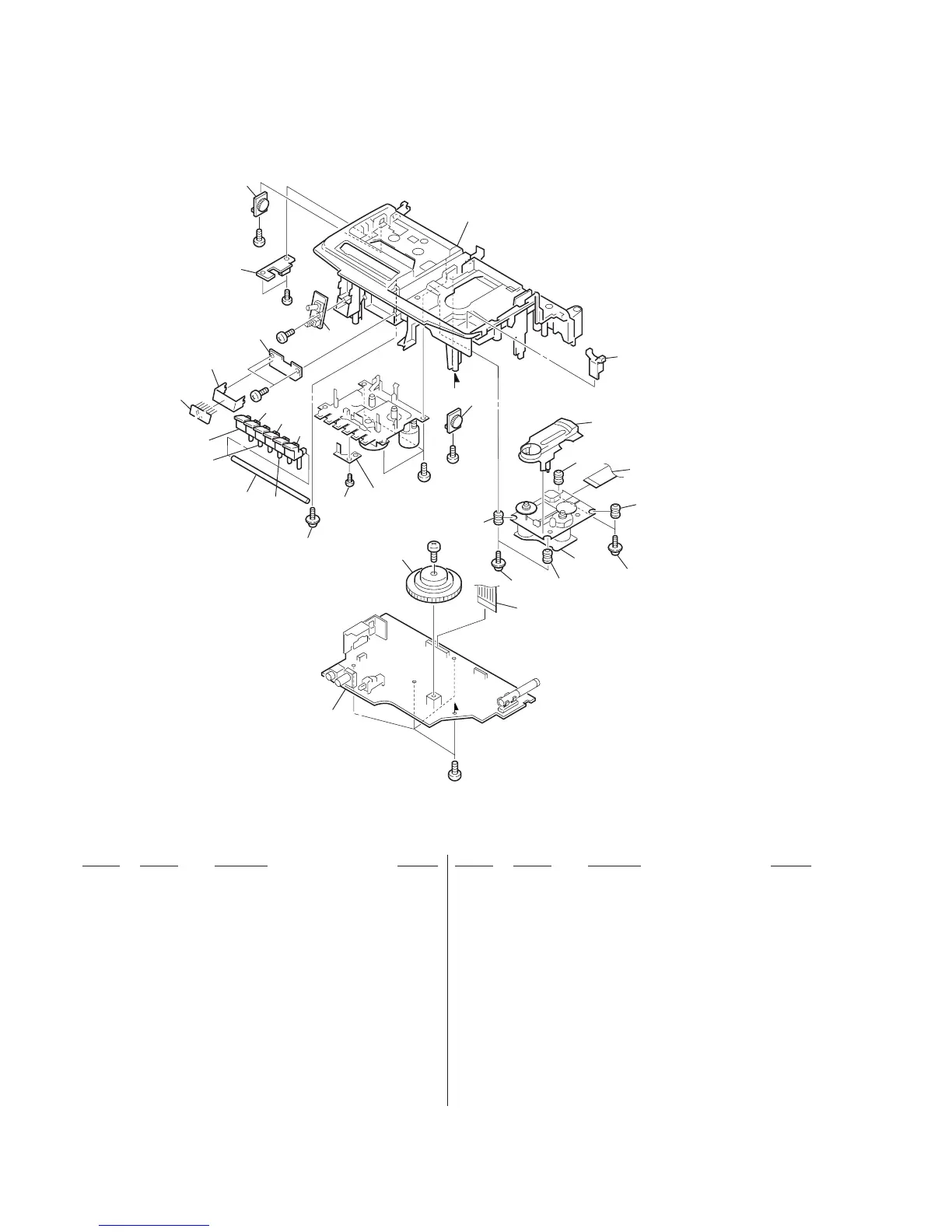

Sony CFD-V27 - Upper Cabinet Section Exploded View

— 40 —
7-3. UPPER CABINET SECTION
* 101 A-3321-916-A MAIN BOARD, COMPLETE
102 4-960-167-01 SCREW (3 × 8)(DIA.10), +WH
103 3-031-560-01 SHAFT (MD)
104 3-031-545-11 BUTTON (STOP)
105 3-031-543-11 BUTTON (REW)
106 3-031-541-11 BUTTON (REC)
107 3-031-546-11 BUTTON (PAUSE)
108 3-031-544-11 BUTTON (FF)
109 3-031-542-11 BUTTON (PLAY)
111 3-018-845-01 HOLDER (406), LCD
* 112 1-672-303-11 DISPLAY BOARD
* 113 1-672-305-11 VOLUME BOARD
* 114 1-672-299-11 RECORD SWITCH BOARD
115 3-922-112-21 DAMPER
116 3-922-112-31 DAMPER
118 3-923-736-01 COVER, CD
119 1-777-955-11 WIRE (FLAT TYPE) (16 CORE)
120 3-910-095-31 RUBBER, VIBRATION PROOF
121 3-921-725-01 SCREW (2.6 × 10), +PWH
122 1-773-116-11 WIRE (FLAT TYPE) (19 CORE)
123 4-951-620-01 SCREW (2.6 × 8), +BVTP
124 3-031-537-11 CABINET (UPPER)
125 3-910-095-21 RUBBER, VIBRATION PROOF
126 3-031-559-01 GEAR (PVC 2 BAND)
128 1-639-678-12 CD MOTOR BOARD
LCD800 1-801-913-11 DISPLAY PANEL, LIQUID CRYSTAL
S801 1-692-960-11 SWITCH, PUSH (1 KEY)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
115
114
112
111
106
105
103
109
108
107
104
102
126
123
101
122
121
125
128
125
121
120
119
120
118
116
124
113
#2
#2
#2
#2
#2
#2
#6
#2
LCD800
not supplied
S801
