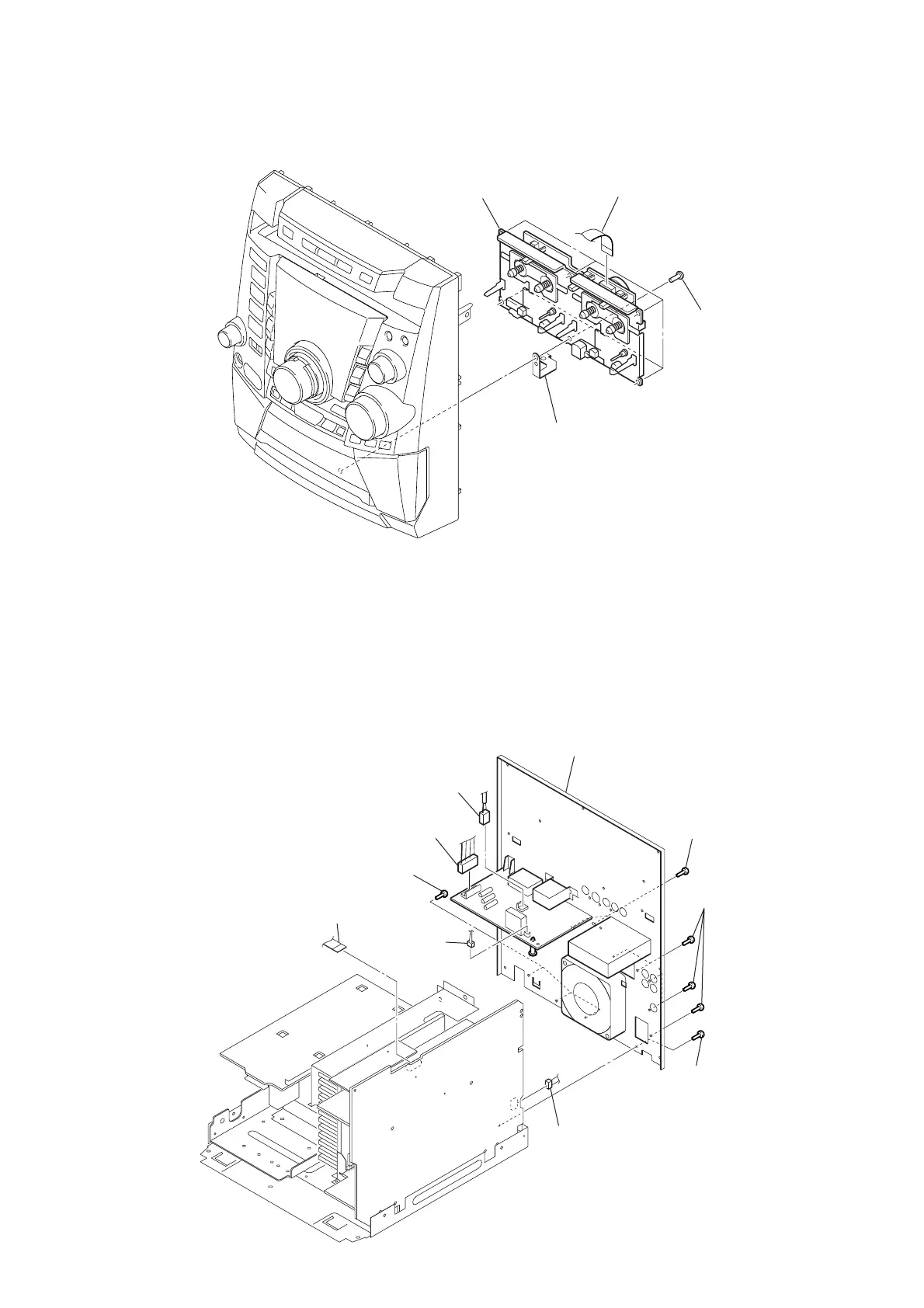

3-6. MECHANICAL DECK (CWM43RR23)
3-7. BACK PANEL SECTION
3 mechanical deck
(CWM43RR23)
1 wire (flat type) (13 core)
2 six screws
(BVTP3 × 10
)
4 ground mechanical plate
9 back panel section
6 five screws
(BVTP3
× 8
)
1 connector
(CN901)
2 connector
(CN902)
3 connector
(CN903)
0 connector
(CN704)
4 wire (flat type)
(11 core) (CN102)
5 two screws
(BVTT3
× 6)
8 three screws
(BVTT3
× 6)
7 screw
(BVTT3
× 6)
