CX-JTD8
19

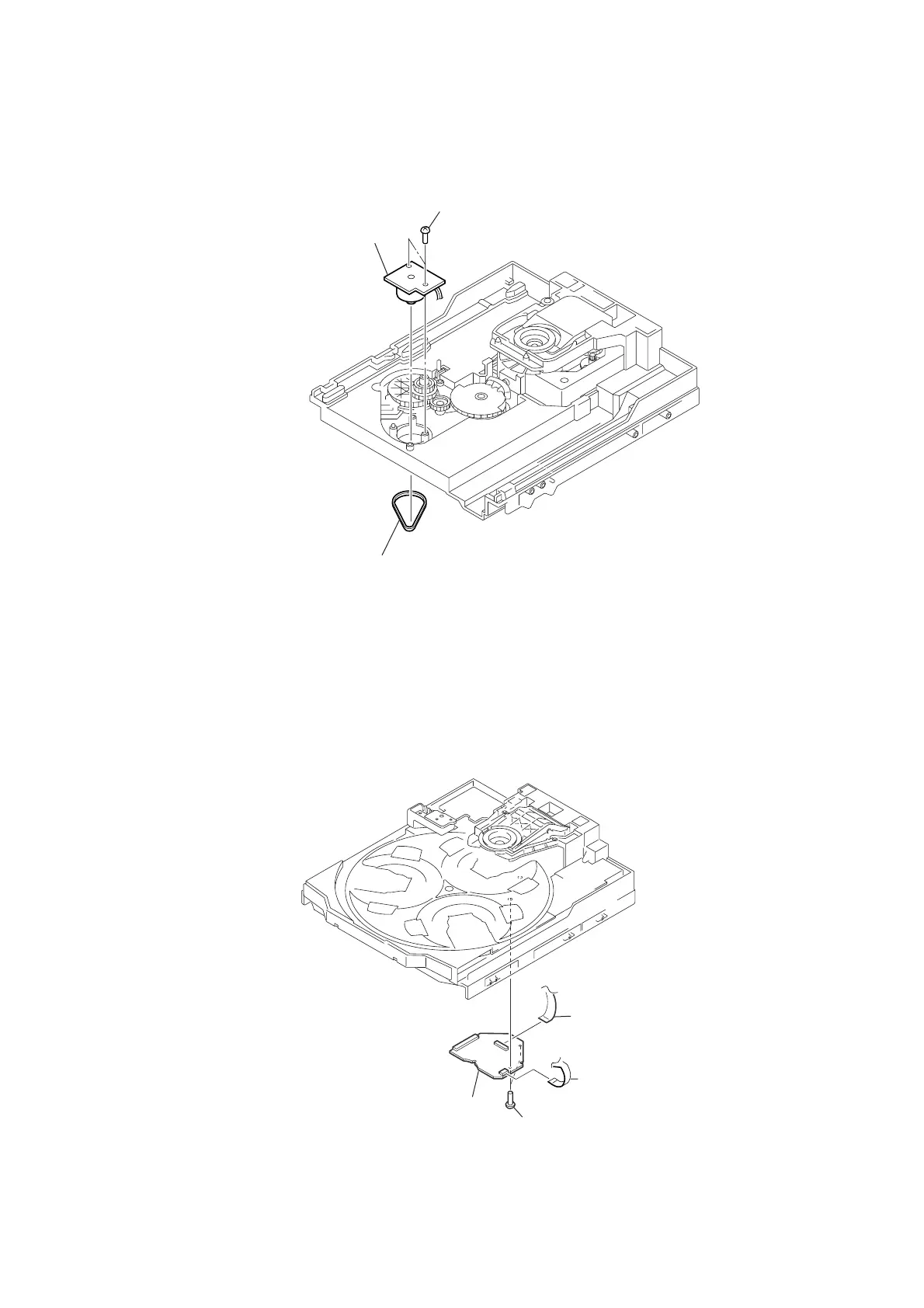

3-18. MOTOR (LD) BOARD
3-19. RF BOARD
2
two screws
(BTTP M2.6)
3
motor (LD) board
1
belt (loading)
3
flexible flat cable
(24 core) (CN001
4
flexible board
(CN003)
1
two screws
(BTTP 2.6)
2
RF board
