CX-JTD8
17

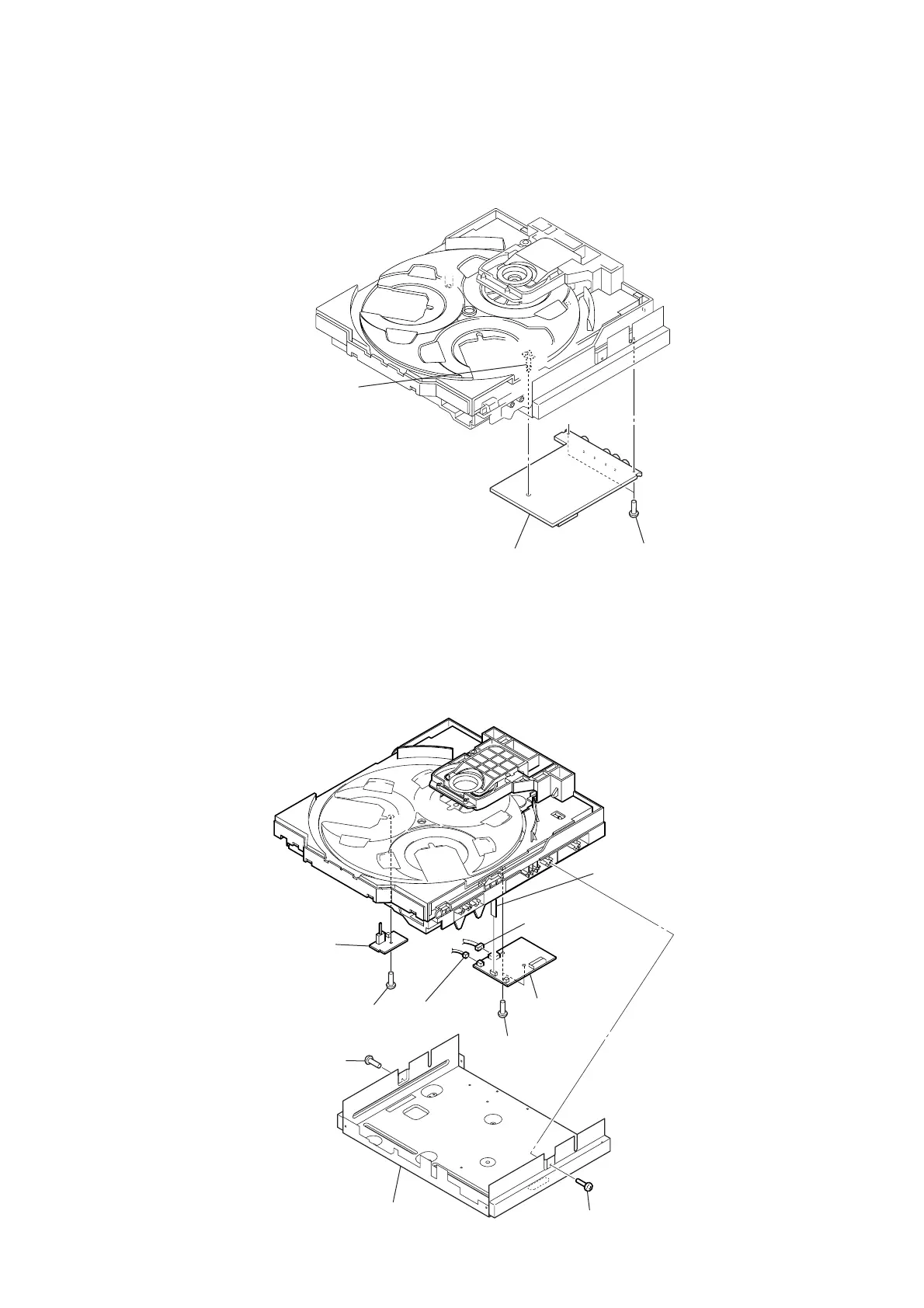

3-14. VIDEO BOARD
3-15. DRIVER BOARD, SW BOARD
1
two screws
(BVTT3
×
6
)
3
video board
2
PWB holder
6
two screws
(BVTP2.6)
9
screw
(BVTP2.6)
7
driver board
0
SW board
8
wire (flat type) (5 core
)
(CN702)
4
connector
(CN704)
5
connector
(CN704)
1
screw
(BVTP3
×
8)
3
bracket (DVD)
2
screw
(BVTP3
×
8)
