CX-JTD8
101
102
102
107
103
110
109
108
106
104
105
not
supplied
#1
#1
not supplied

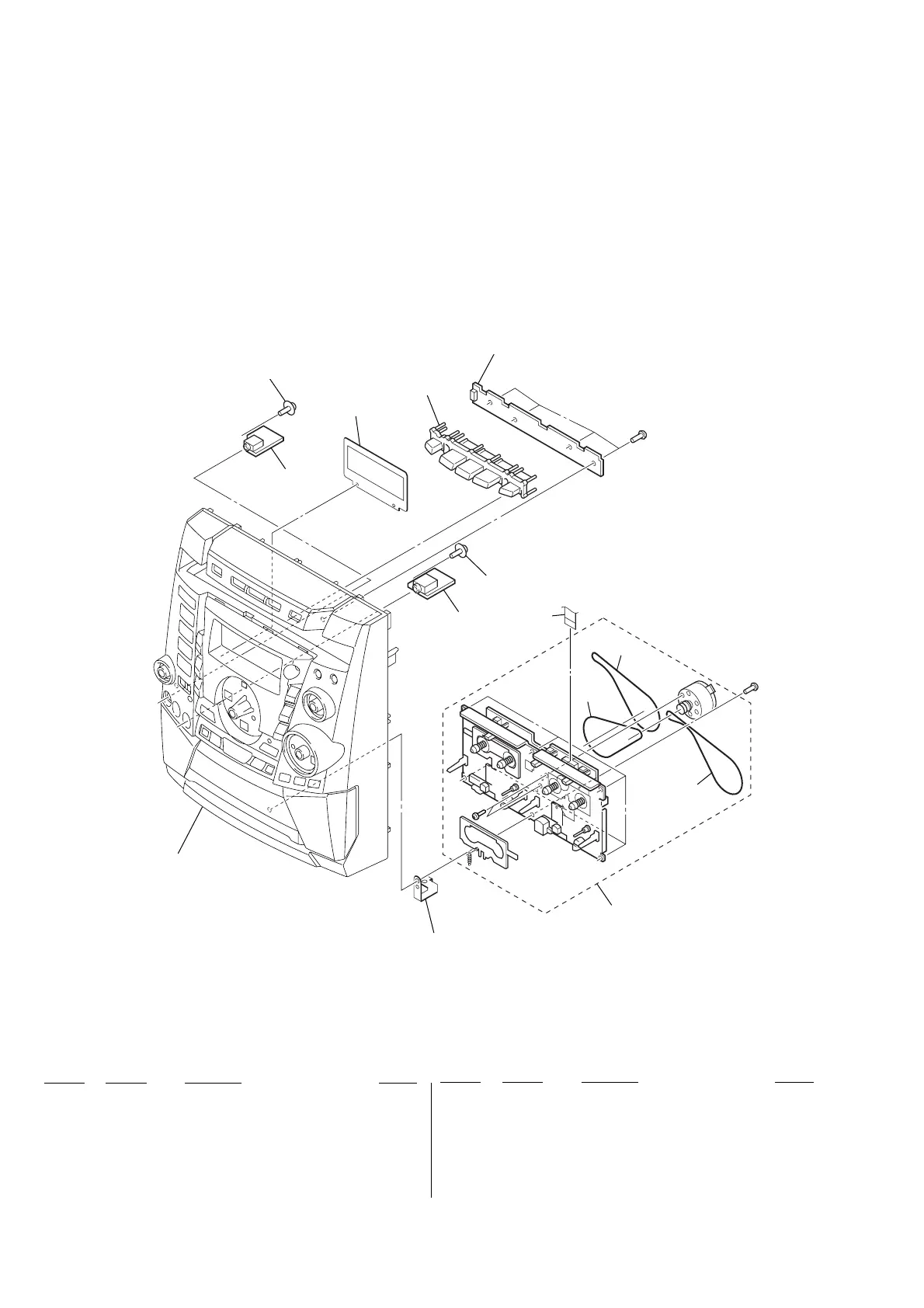

front panel section-3
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 1-689-683-11 HEADPHONE JACK BOARD
102 3-229-336-01 SCREW, +BVWH TAPPING
103
104 4-248-942-01 KEY (VCD), CD
(DISC CHANGE/DISC SKIP. 1. 2. 3. Z)
105 1-689-685-11 CD KEY BOARD
106 1-796-487-31 DECK, MECHANICAL (CWM43RR23)
107 1-689-684-11 MICROPHONE JACK BOARD
108 4-243-608-01 BELT (BR)
109 4-243-609-01 BELT (AF)
110 4-243-610-01 BELT (AL)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
