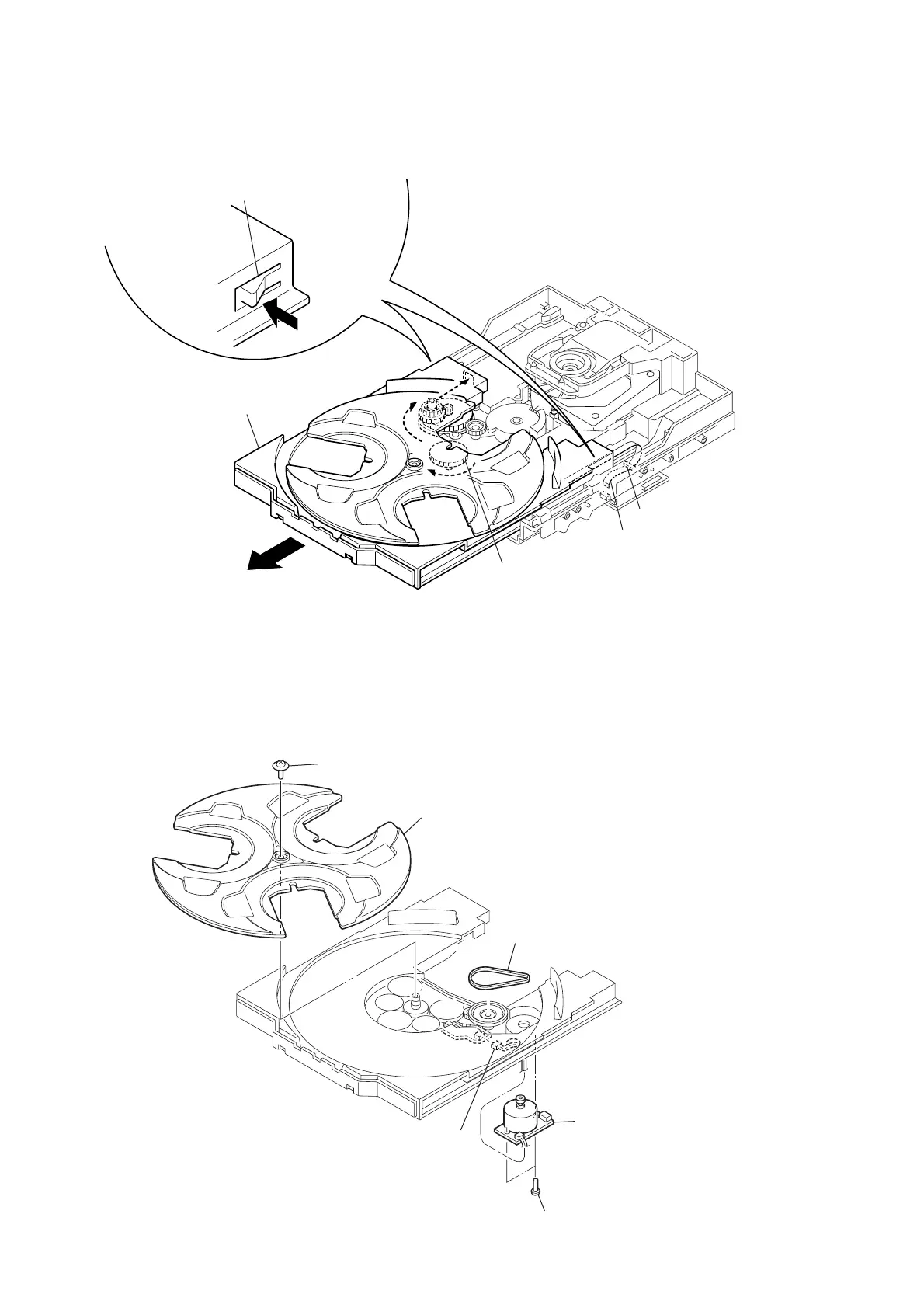

3-16. TABLE ASSY
3 wire (flat type) (5 core
)
(CN702)
4 hook
1 Turn the loading gear
in the direction of arrow A .
A
5
two claws
2 Pull-out the table assy.
6 table assy
3-17. MOTOR (TB) BOARD
2 table (loading)
4 connector
(CN731)
1 screw
(PTPWH M2.6)
5 two screws
(BTTP M2.6)
6 motor (TB) board
3 belt (table)
